Name: 2024 Shacman F3000 Heavy Duty Dump Truck 380hp 6x4 Drive with 31-40t Load Capacity
Brand: Shandong Global Heavy Truck Import&Export Co.,Ltd
SKU: howo-7
Price: 37,000.00 USD
Availability: InStock

Home Products Heavy Duty Dump Truck

2024 Shacman F3000 Heavy Duty Dump Truck 380hp 6x4 Drive with 31-40t Load Capacity

Product Details:

Place of Origin:	China
Brand Name:	sinotruk
Certification:	iso,
Model Number:	howo-7

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	NEGOTIABLE
Packaging Details:	nude
Delivery Time:	40 worker days
Payment Terms:	L/C,T/T
Supply Ability:	500 units/month

Contact Now

Detailed Product Description

Model NO.:	Shacman F3000	Wheelbase:	3175+1400
Load Capacity:	31-40t	Drive Wheel:	6×4
Horsepower:	380hp	Engine Brand:	Weichai
Condition:	New	Drive Seat:	Air Suspension Seat
Highlight:	30t Dump Truck , Heavy Duty 6X4 Dump Truck

2024 SHACMAN F3000 Heavy Duty 6×4 Dump Truck (15-30 Ton Capacity)

The 2024 SHACMAN F3000 series represents the latest in heavy-duty dump truck technology from China National Heavy Duty Truck Group (CNHTC), offering robust performance and customizable configurations for demanding industrial applications.

Key Features & Customization Options

Engine: WEICHAI power systems with strong performance and reliable maintenance support
Transmission: FAST manual or EATON ATM gearbox options available
Lifting System: HYVA or premium Chinese brand hydraulic systems
Dumper Body: Customizable height and thickness specifications
Cab Options: F3000 (most popular), H3000 (economical), or X3000 (premium) series
Tires & Oil Tank: Fully customizable to meet specific operational requirements
Color Options: White, Red, Orange, Green, Blue
Additional Features: Camera systems, radar, daylight running lights, and other accessories

Technical Specifications

Model	SX3255DR404
Driver Position	Left Hand Drive
Cab Type	Medium Length Flat Top
Driving Configuration	6×4
Wheelbase	1800+3575+1400 mm
Maximum Speed	80 km/h
Engine Brand	WEICHAI
Engine Model	WP10.340E22
Emission Standard	EURO II
Rated Power	340 PS
Displacement	9.726 L
Transmission Brand	FAST
Transmission Model	10JSD180+QH50
Front Axle	HANDE MAN 9.5T
Rear Axle	HANDE 16T MAN Double Reduction Driving Axle
Speed Ratio	5.262
Clutch	¢430 Diaphragm Clutch
Frame	850×300(8+7)
Suspension	Multiple Leaf Springs Front and Rear / Four Main Spring + Four Bolts
Fuel Tank	400L Aluminum Alloy
Wheels & Tires	12.00R20 (12+1)
Braking System	Dual Circuit Compressed Air Brake (Running) / Air Discharging with Spring Control (Parking) / Engine Exhaust Brake (Auxiliary)

Cab Features

Hydraulic main seat, four-point hydraulic suspension cab, standard mirrors, electronically controlled automatic thermostatic air conditioning, electric windows, manual rollover protection, oil bath air filter, metal bumpers, oil sump protection, front and rear headlight protection grilles, two-stage pedals, water tank protection grilles, additional long-life coarse filter, 165Ah maintenance battery, SHACMAN branding with full English identification.

Dump Body Specifications

Standard box dimensions: 5800×2300×1500 mm with 10mm bottom thickness and 8mm side thickness. Custom dimensions available upon request.

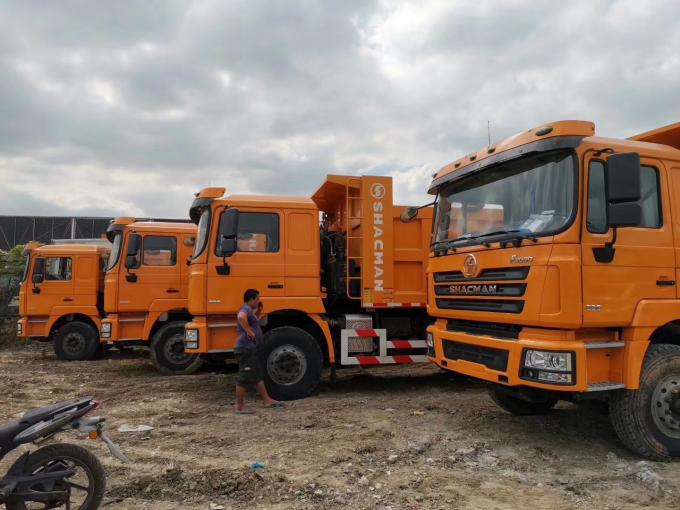

SHACMAN F3000 Heavy Duty 6×4 Dump Truck in operational environment

Customization & Quotation

All specifications can be customized to meet your specific operational requirements. Contact us for detailed pricing and configuration options. We provide comprehensive technical support and satisfactory solutions for all your heavy-duty truck needs.
