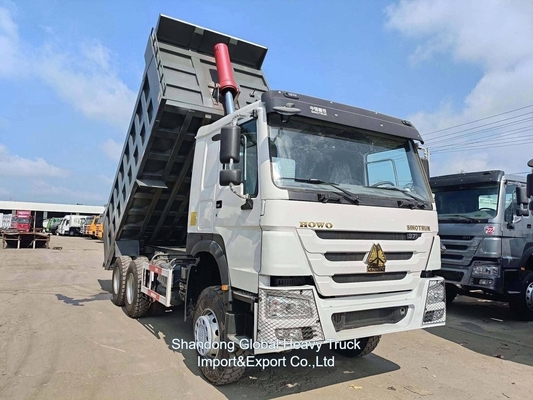

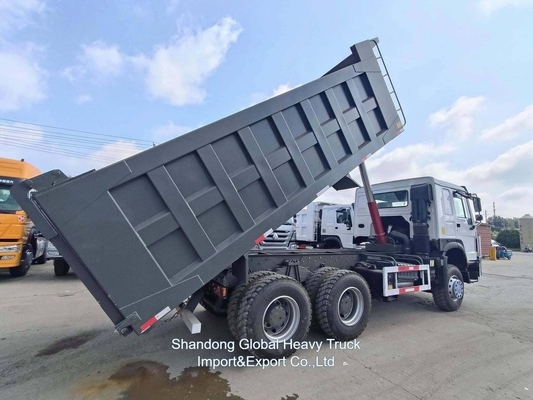

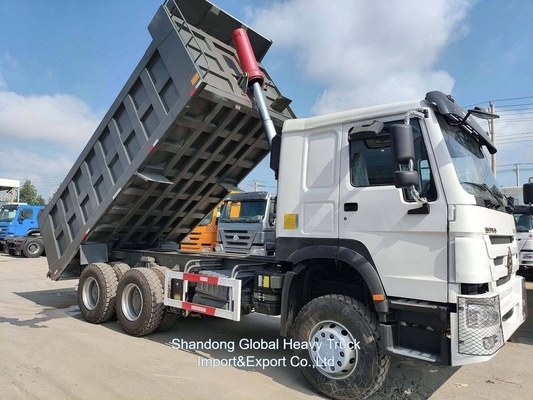

Used Heavy Dumper Truck 6×4 375HP Sinotruk HOWO Tipper Truck
High-performance used heavy dumper truck featuring robust construction and reliable performance for demanding industrial applications.
Available Models
| Typical Truck Model |
ZZ3257M2941 |
ZZ3257N3247B |
ZZ3257N3447B |
ZZ3257N3647B |
ZZ3257N3847B |
Cab Specifications
Model: HW70
Type: HW70 standard cab, no berth, with A/C all steel forward control, 55° hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, adjustable roof flap, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt.
Engine Specifications
| Model |
WD615.87 |
WD615.69 |
WD615.47 |
| Rated Power |
290HP (213Kw/rpm) |
336HP (247Kw/rpm) |
371HP (273Kw/rpm) |
| Displacement |
9.726L |
| Type |
6 cylinder in-line with water cooling, turbo-charging & intercooling |
Dimensions & Configuration
| Wheelbase |
2900+1400mm |
3200+1400mm |
3400+1400mm |
3600+1400mm |
3800+1400mm |
| Cargo Body Size |
4800×2300×1000mm |
5200×2300×1200mm |
5400×2300×1200mm |
5600×2300×1500mm |
5800×2300×1500mm |
Transmission & Drivetrain
Clutch: Single-plate dry diaphragm spring clutch, diameter 430(C) mm, hydraulically operating with air assistance
Transmission: HW series 10/12/16 speed transmission, 10 forward and 2 reverse
Front Axle: Steering axle with double T-cross section HF9
Drive Axle: Pressed axle housing, central single reduction HC16/AC16, Ratio: 5.73
Chassis & Suspension
Frame: U-profile parallel ladder type with section of 320×90×8 mm, all cold riveted cross members and reinforced subframe
Front Suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear Suspension: 9+6 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Spare Wheel Carrier: With one spare wheel
Fuel Tank: Aluminum fuel tank with 400L capacity and locking fuel cap
Steering & Braking Systems
Steering: Germany ZF, hydraulic steering with power assistance
Service Brake: Dual circuit compressed air brake
Parking Brake: Spring energy, compressed air operating on rear wheels
Auxiliary Brake: Engine exhaust brake
Option: ABS
Wheels & Tires
Rims: 8.0-20, 10 hole-steel
Tires: 11.00-20 tube
Options: 12.00-20 tube, 12.00R20 tube
Electrical System
Operating Voltage: 24V, negative grounded
Starter: 24V, 5.4KW
Alternator: 28V, 1540W
Batteries: 2×12, 165Ah
Features: Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp
The manufacturer reserves the right to make technical alterations or changes for better improvement without prior notice.
Frequently Asked Questions
Are you a dealer or factory?
We are the factory.
I want to transport the truck by container, is it ok?
Yes, it is ok, but we need to take apart the truck and you should reinstall it in your country.
How about your product quality?
All the trucks are original SINOTRUK products, and the quality is 100% guaranteed.
I want to be your agent in my country. Is that ok?
It's ok, if your quantity is big, we will consider. 200 units for one year is acceptable.
How about your company's service, especially after-sale service?
SINOTRUK has many after-sales service stations worldwide, and there are many spare parts available in local markets.
What is your payment terms?
You can choose 30% prepaid and 70% paid before delivery.
What is the production time?
Delivery time: Within 30 workdays after receiving deposit.
