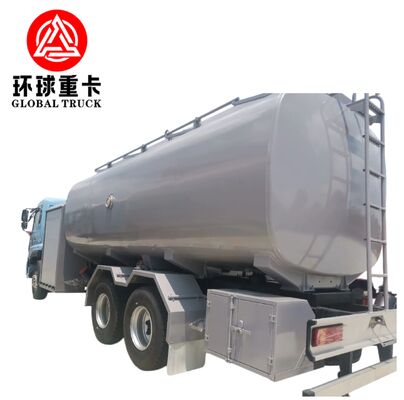

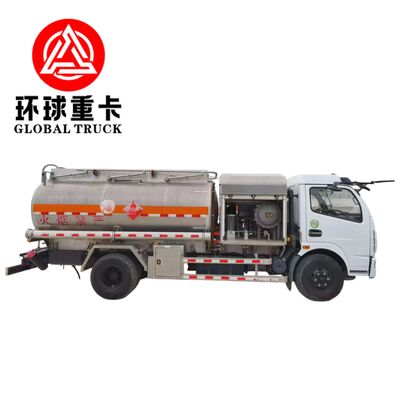

Dongfeng 6×2 High-End 12000 Liters Jet A1 Aircraft Refueling Truck for Aviation Fuel Transport

The Dongfeng Motor Corporation 6×2 High-End Aircraft Refueling Tank Truck is a premium aviation fuel service vehicle engineered for medium-to-large airport operations requiring higher payload capacity and enhanced stability.

Built on a 6×2 heavy-duty chassis platform, this model offers improved axle load distribution, higher fuel carrying capacity, and superior driving stability compared to 4×2 configurations. It is designed specifically for the safe transport and pressure-controlled dispensing of Jet A-1 aviation turbine fuel.

• Tank Volume Options: 10,000L / 12,000L
• Tank Shape: Elliptical horizontal design
• Tank Material: Aluminum alloy (recommended) or carbon steel with internal epoxy coating
• Compartments: Single or dual with internal anti-surge baffles
• Manhole: Aviation-sealed cover with emergency vent
• Bottom Emergency Shut-Off Valve: Pneumatic control
• External Walkway: Anti-slip aluminum platform

• Pump Type: Explosion-proof aviation centrifugal pump
• Flow Capacity: 800-1,200 L/min
• Drive Mode: PTO mechanical drive
• Pressure Regulation: Adjustable pressure control valve

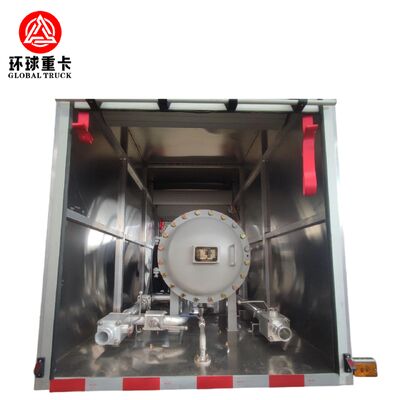

• Two-stage aviation filter separator
• Coalescer + water absorber elements
• Filtration Accuracy: ≤1 micron
• Water Separation Efficiency: ≥99%
• Differential Pressure Indicator: Standard
• Fuel Sampling Port: Equipped

• Flow Meter Type: Positive displacement / Electronic meter
• Meter Accuracy: ±0.2%
• Hose Length: 20-25 meters anti-static aviation hose
• Hose Reel: Hydraulic rewind system
• Refueling Nozzle: Underwing pressure refueling nozzle
• Control Mode: Deadman control system

The vehicle integrates multiple safety layers to meet aviation fueling operational requirements:

• Electrostatic grounding reel
• Emergency stop switches (cabin & external)
• Overpressure protection valve
• Pressure relief bypass system
• Exhaust flame arrestor
• Fire extinguishers
• Interlock protection between pump and valve
• Overfill prevention system

• Increased Payload Capacity: 6×2 axle structure supports higher fuel volume while maintaining safe axle load limits
• Enhanced Stability: Dual rear axles improve driving balance and reduce tank stress during full-load transport
• High Flow Efficiency: Up to 1,200 L/min flow rate reduces aircraft turnaround time
• Fuel Cleanliness Assurance: Dual-stage filtration ensures aviation-grade fuel purity
• Flexible Customization: Tank material, digital metering, and bottom loading systems can be configured according to airport specifications

Suitable for:

• International and regional airports
• Civil aviation fuel supply companies
• Military airbases
• Fixed Base Operators (FBO)
• Large charter service fleets

Compatible aircraft types:

• Narrow-body passenger aircraft
• Cargo aircraft
• Regional jets
• Business jets
• Helicopters

• Digital fuel management system with printer
• Electronic batch controller
• Bottom loading API adaptor
• Explosion-proof LED lighting
• Stainless steel piping system
• GPS fleet tracking system
• Cold-climate or tropical configuration package
