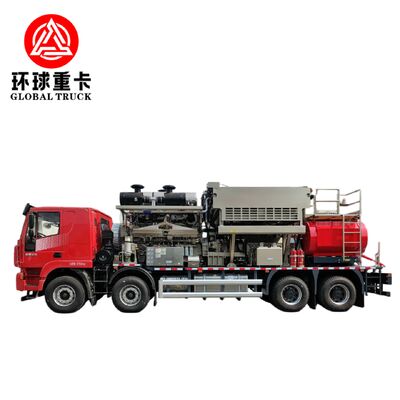

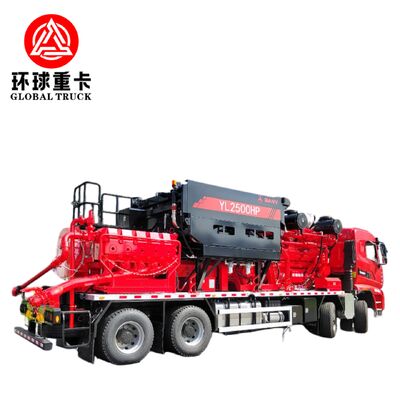

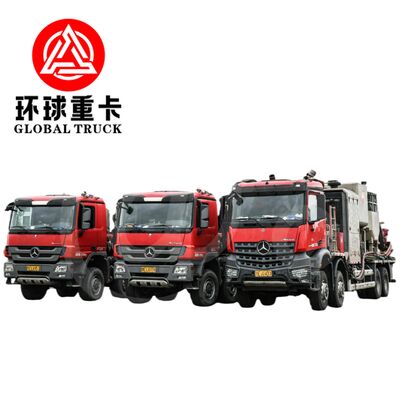

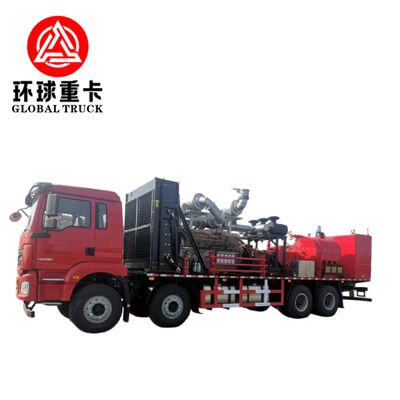

HOWO Foton Ford High-Performance Fracturing Sand Tanker Truck
Shacman 8×6 Oilfield Fracturing Mortar Tank Truck (Diesel, Manual Transmission, Euro 6 - New Condition)
Product Overview
The Shacman 8×6 Oilfield Fracturing Mortar Tank Truck is a heavy-duty diesel vehicle engineered for high-pressure fluid delivery in unconventional oil and gas well operations. Equipped with a Euro 6 engine, manual transmission, and reinforced 8×6 chassis, this truck combines exceptional mobility, high payload capacity, and precise control of fracturing or cement slurry. Designed specifically for onshore oilfield stimulation, hydraulic fracturing, and cementing operations in demanding environmental conditions.
Chassis & Drive Configuration
- Drive Layout: 8×6 heavy-duty off-road chassis
- Engine Power: 450-500 HP, Euro 6 diesel
- Transmission: Manual 10-speed gearbox
- PTO: Engine-driven power take-off for pumping system
- Axle Design: Reinforced for high-load and off-road performance
- Suspension: Heavy-duty leaf spring with optional shock absorber
- Tires: Oilfield off-road radial tires
- Max Travel Speed: 70-75 km/h
- Operational Terrain: Muddy, desert, plateau, and mountainous oilfield roads
Mortar Tank & Pump System
- Tank Capacity: 12-18 m³ (customizable per project)
- Tank Material: High-strength carbon steel with epoxy lining
- Tank Type: Cylindrical or rectangular oilfield mortar tank
- Agitation: Hydraulic or diesel-driven agitator for uniform slurry
- Pump System: High-pressure hydraulic pump, PTO-driven
- Maximum Flow: Adjustable according to fracturing or cementing requirements
- Discharge Valves: Pneumatic or hydraulic-controlled bottom/side valves
- Access & Safety: Anti-slip ladders, sealed inspection hatches
Operational Advantages
- High-pressure slurry delivery ensures effective fracturing and cementing
- Manual transmission allows precise torque control in rugged terrain
- Diesel engine ensures self-sufficient operation without external power
- Reinforced 8×6 chassis provides excellent stability under full load
- Euro 6 compliance ensures reduced emissions and environmentally friendly operation
Safety Systems
- Emergency stop switches (cabin and external)
- Overpressure relief valve for tank protection
- Hydraulic overload protection
- Anti-overflow control
- Grounding and bonding system to prevent static discharge
- Fire suppression system
Application Scope
- Unconventional oil and gas well hydraulic fracturing
- Well cementing and plugging operations
- Sand and chemical slurry injection
- Horizontal and vertical well stimulation
- Oilfield construction and maintenance projects
Optional Configurations
- Intelligent remote control system
- Data acquisition and monitoring module
- Cold climate winterization package
- Desert high-temperature adaptation kit
- Stainless steel piping for corrosive fluids
- Noise reduction cabin and operator comfort upgrade
- Custom tank compartmentalization for multi-fluid delivery
Frequently Asked Questions
What fluids can this truck transport?
Designed for fracturing fluids, cement slurry, and sand or chemical slurries used in oilfield operations.
Can it work in extreme conditions?
Yes. Optional winterization and desert packages are available.
How is the slurry pumped to the well?
Through a PTO-driven high-pressure hydraulic pump with adjustable flow control.
Is customization available?
Yes, including tank size, material, compartment options, and environmental adaptations.
What is the advantage of the 8×6 chassis?
Provides superior load-bearing capacity, stability, and off-road mobility for oilfield operations.
