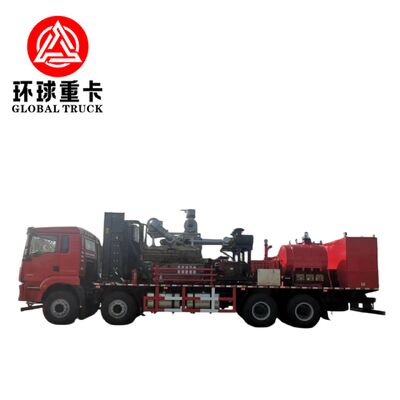

Sinotruk HOWO Oilfield Fracturing Truck - Nigeria Edition
Customized oilfield special vehicle with diesel engine, manual transmission, and Euro 6 compliance designed for demanding oilfield stimulation operations in Nigeria's upstream sector.
Product Overview
This purpose-built heavy-duty special vehicle combines a robust HOWO chassis, Euro 6 diesel engine, manual transmission, high-pressure fracturing fluid tank, and PTO-driven hydraulic pumping system into an integrated platform tailored for Nigerian onshore and near-shore oilfield projects.
Chassis & Powertrain Specifications
- Drive Configuration: 8×6 heavy-duty off-road chassis
- Engine: Euro 6 compliant diesel (460-500 HP)
- Transmission: Manual heavy-duty gearbox
- PTO: Engine-mounted power take-off for hydraulic system
- Axles: Reinforced oilfield grade
- Suspension: Heavy-load leaf spring with optional dampers
- Tires: Oilfield off-road radials
- Max Speed: 70-75 km/h
- Terrain Adaptability: Designed for Niger Delta, Sahel, and remote onshore sites
Fracturing Tank & Fluid Delivery System
- Tank Capacity: 12-20 m³ (customized per client)
- Tank Structure: High-strength carbon steel with corrosion-resistant epoxy lining
- Baffles: Internal anti-surge plates for fluid stability
- Agitators: Diesel or hydraulic powered, uniform slurry handling
- Pumping System: PTO-driven high-pressure hydraulic pump
- Max Flow Rate: Adjustable for fracturing, cementing, or slurry injection
- Discharge Valves: Pneumatic or hydraulic control - bottom & side
- Access & Safety: Anti-slip ladder, sealed manhole, emergency vent
Key Operational Benefits
Enhanced Oilfield Performance
Optimized for fracturing, cementing, and slurry pumping, improving well stimulation effectiveness.
All-Terrain Capability
8×6 chassis ensures reliable mobility on muddy, swamp, and primitive roads common in Nigerian oilfield regions.
Euro 6 Compliance
Meets international emission standards, supporting environmentally responsible operations.
Autonomous Field Operation
Diesel-powered system with manual transmission supports independent deployment without external power units.
Safety & Protection Systems
- Dual emergency stop switches (cabin & external)
- Overpressure relief on tank and piping
- Hydraulic overload protection
- Anti-overflow safety controls
- Grounding & bonding for static discharge prevention
- Onboard fire suppression system
Application Scenarios in Nigeria
- Hydraulic fracturing and well stimulation
- Cementing and plugging operations
- Sand, chemical, and slurry injection
- Horizontal and vertical well stimulation
- Onshore oilfield infrastructure support
Optional Upgrades
- Intelligent remote monitoring & control module
- Data logging and reporting system
- Winterization and desert adaptive kits
- Stainless steel fluid lines for corrosive substances
- Noise reduction and operator comfort enhancements
- Multi-compartment tanks for dual fluid delivery
Frequently Asked Questions
What fluid types can this truck handle?
Fracturing fluids, cement slurries, sand and chemical additives used in well stimulation.
Can it operate in Nigeria's challenging field conditions?
Yes - the reinforced 8×6 design and off-road tires make it suitable for swampy, muddy, and rural field access.
Is it suitable for expanding upstream activities?
Yes. With oil production increasing and rig counts rising, field support vehicles like this are key to efficient operations.
How customizable is the system?
Tank capacity, pumping system, control features, and environmental adaptations can be tailored.
Does Euro 6 compliance matter in Nigeria?
Yes - it improves environmental performance and can support compliance with international partner standards on joint ventures.
