Name: New 20m³ Bulk Emulsion Explosive Mixing and Charging Truck with 350 HP Diesel Engine and 300 kg/min Charging Efficiency for Mining Blasting
Brand: Shandong Global Heavy Truck Import&Export Co.,Ltd
SKU: HOWO
Price: 137,500.00 USD
Availability: InStock

Home Products Special Purpose Truck

New 20m³ Bulk Emulsion Explosive Mixing and Charging Truck with 350 HP Diesel Engine and 300 kg/min Charging Efficiency for Mining Blasting

Product Details:

Place of Origin:	CHINA
Brand Name:	HOWO
Certification:	CE
Model Number:	HOWO

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiable
Packaging Details:	nude
Delivery Time:	35 workdays
Payment Terms:	L/C,T/T
Supply Ability:	50 pcs /YEARS

Contact Now

Detailed Product Description

Product Type:	Bulk Emulsion Explosive Mixing And Charging Truck	Overall Dimensions (L × W × H):	11000 × 2500 × 4200 Mm
Main Application:	Mining, Quarrying, Open-Pit Blasting And Construction Blasting	Matrix + Filler Loading Capacity:	9/5 T, 5/9 T, 14/0 T
Gross Vehicle Weight:	32 T	Suitable Blasthole Diameter:	≥ DN80 Mm
Telescopic Hose Arm:	8–23 M	Hose Feeding Speed:	0.5 M/s
Highlight:	20m³ Capacity Bulk Emulsion Explosive Mixing and Charging Truck , 350 HP Diesel Engine Emulsion Explosive Charging Truck , 300 kg/min Charging Efficiency Mining Blasting Truck

New 6×4 20m³ Bulk Emulsion Explosive Mixing and Charging Truck for Mining Blasting

Product Overview

The Bulk Emulsion Explosive Mixing and Charging Truck is a specialized mobile vehicle designed for on-site emulsion explosive preparation and borehole charging in mining, quarrying and other controlled blasting operations. The vehicle integrates raw material storage, conveying, mixing, pumping and charging functions into one mobile platform, preparing the final emulsion product at the operating site and delivering it directly into designated blastholes.

Key Features

On-site emulsion explosive mixing and charging system
350 HP heavy-duty truck chassis
32-ton gross vehicle weight
Three matrix and filler loading modes: 9/5 t, 5/9 t and 14/0 t
Charging efficiency up to 300 kg/min
8-23 m telescopic hose arm
DN60 × 40 m delivery hose
Suitable for blastholes ≥ DN80 mm
PLC-based automatic control system
Real-time GPS and operational monitoring
0.7-1.25 g/cm³ final emulsion density adjustment
2500-4800 m/s adjustable VOD
AEBS braking system with EBS and ESC/ECS
Front-mounted exhaust system for mining applications

Technical Specifications

Category	Parameter / Feature	Technical Specification
Basic Information	Product Type	Bulk Emulsion Explosive Mixing and Charging Truck
Basic Information	Model	Bulk Emulsion Mixing and Charging Truck
Basic Information	Main Application	Mining, Quarrying, Open-Pit Blasting and Construction Blasting
Basic Information	Operation Type	On-Site Mixing and Borehole Charging
Dimensions & Weight	Overall Dimensions (L × W × H)	11000 × 2500 × 4200 mm
Dimensions & Weight	Curb Weight	16 t
Dimensions & Weight	Gross Vehicle Weight	32 t
Dimensions & Weight	Number of Axles	4 Axles
Loading System	Matrix + Filler Loading Capacity	9/5 t, 5/9 t, 14/0 t
Loading System	Loading Modes	3 Loading Modes
Loading System	Matrix Storage	Independent Matrix Storage System
Loading System	Filler System	Independent Filler Storage and Conveying System
Pumping System	Charging Efficiency	0-300 kg/min
Pumping System	Conveying Mechanism	High-Pressure Piston Pumps
Pumping System	Matrix Pump	Piston Pump
Pumping System	Filler Pump	Piston Pump
Pumping System	Charging Power Source	Chassis Engine Driven via PTO
Pumping System	Delivery Hose Diameter	DN60 mm
Pumping System	Delivery Hose Length	40 m
Charging System	Suitable Blasthole Diameter	≥ DN80 mm
Charging System	Telescopic Hose Arm	8-23 m
Charging System	Hole Alignment Mechanism	Single-Cylinder Alignment Mechanism
Charging System	Hose Feeding Speed	0.5 m/s
Charging System	Hose Retracting Speed	0.5 m/s
Charging System	Positioning Precision	±0.2 m
Emulsion System	Latex Matrix Density	1.3 g/cm³
Emulsion System	Matrix Detonator Sensitivity	None
Emulsion System	Final Emulsion Density	0.7-1.25 g/cm³
Emulsion System	Density Adjustment	Real-Time Online Adjustment
Emulsion System	Detonation Velocity	2500-4800 m/s
Control System	Control Technology	Industrial PLC Control System
Control System	Automatic Functions	Hole Alignment, Hose Feeding and Charging
Control System	Remote Control	Supported
Monitoring System	GPS Tracking	Real-Time Vehicle GPS Tracking
Monitoring System	Operational Monitoring	Real-Time Operating Parameter Monitoring
Monitoring System	Video Monitoring	Real-Time Production Video Monitoring
Chassis	Engine Power	350 HP / 257.4 kW
Chassis	Fuel Type	Diesel
Chassis	Transmission	Heavy-Duty Manual Transmission
Chassis	PTO	Reinforced Flange PTO
Safety System	Braking System	AEBS
Safety System	Electronic Braking	EBS
Safety System	Stability Control	ESC / ECS
Safety System	Exhaust System	Front-Mounted Exhaust System
Safety System	Speed Limiter	79 km/h
General	Brand	GLOBAL
General	Origin	China
General	HS Code	8705909990
General	Production Capacity	60 Units/Year
General	Transport Package	Nude Package
General	Lead Time	About 30 Days for 1 Unit

Technical Highlights

High Charging Efficiency: Charging output can reach 300 kg/min, supporting continuous charging operations.

Long Charging Reach: The optional telescopic hose arm provides an extension range of 8-23 m, combined with a 40 m DN60 delivery hose.

Flexible Loading Configuration: Three matrix and filler loading modes are available to accommodate different operational requirements.

Real-Time Density Adjustment: The final emulsion density can be adjusted online within the specified range.

Automated Operation: PLC control supports key operations including hole alignment, hose feeding and charging.

Remote Monitoring: GPS, operating data and video monitoring functions provide real-time operational information.

Heavy-Duty Chassis: The 350 HP diesel chassis is designed for demanding mining and quarry working environments.

Applications

Open-pit mining
Metal mining
Quarrying
Aggregate production
Large-scale excavation projects
Tunnel construction
Infrastructure construction

Frequently Asked Questions

Q1: What is the main function of this truck?

A: It is designed to transport the required raw materials and perform on-site emulsion mixing and borehole charging for mining and quarry blasting operations.

Q2: What is the maximum charging efficiency?

A: The specified maximum charging efficiency is up to 300 kg/min.

Q3: What loading configurations are available?

A: The truck supports three configurations: 9/5 t, 5/9 t and 14/0 t for matrix and filler.

Q4: What is the charging hose specification?

A: The delivery hose is DN60 mm in diameter and 40 m in length.

Q5: What blasthole diameter is suitable for this truck?

A: The specified suitable blasthole diameter is DN80 mm or larger.

Q6: How far can the telescopic hose arm extend?

A: The optional telescopic hose arm has an extension range of approximately 8-23 m.

Q7: What engine is used?

A: The truck is equipped with a 350 HP / 257.4 kW diesel engine.

Q8: Can the truck be customized?

A: Chassis configuration, loading capacity, hose arm configuration, control system and other technical specifications can be discussed according to the project requirements.

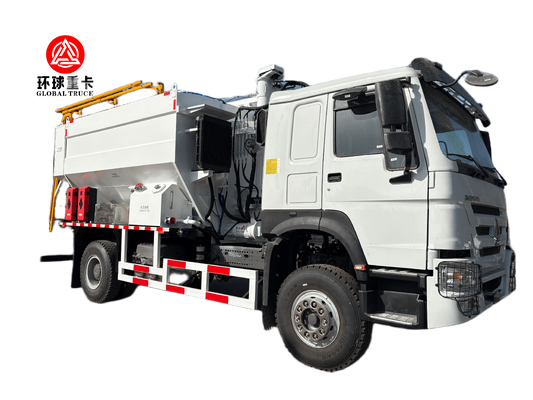

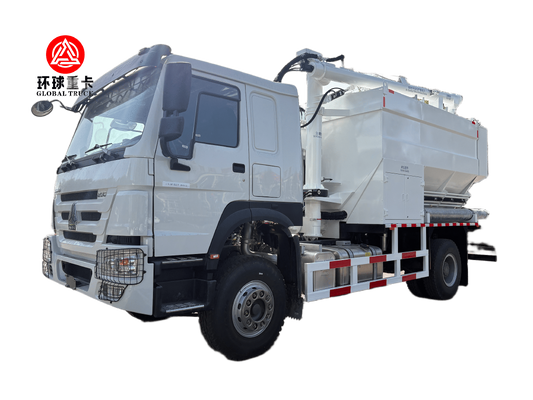

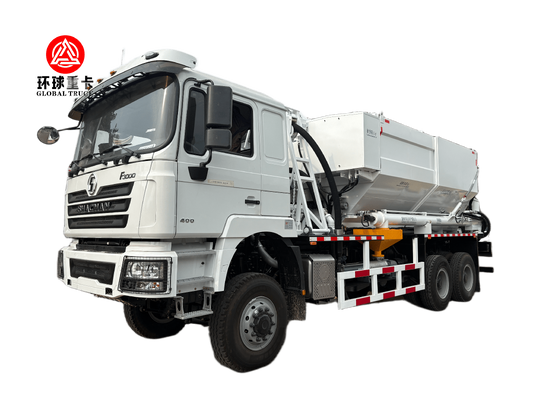

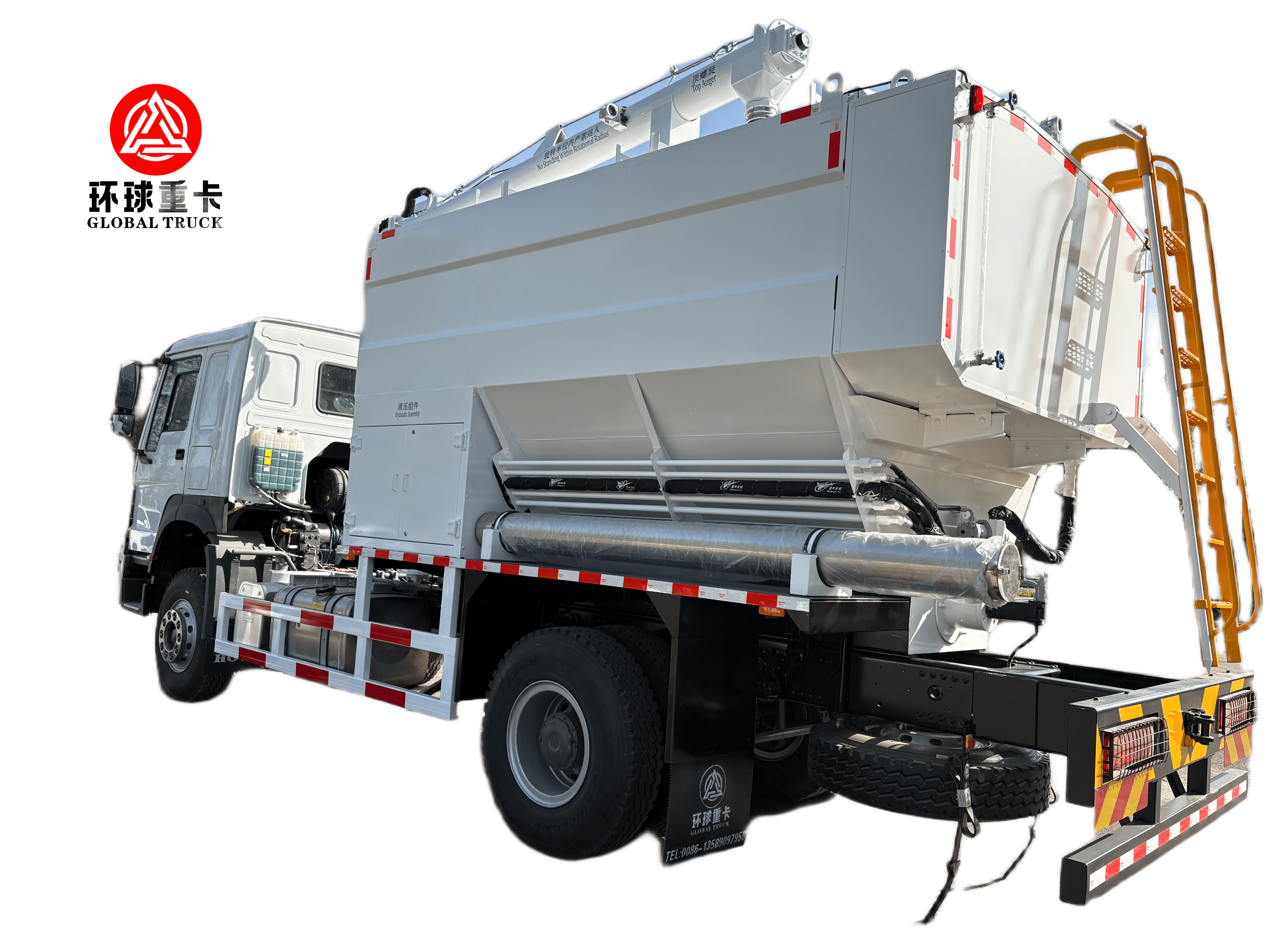

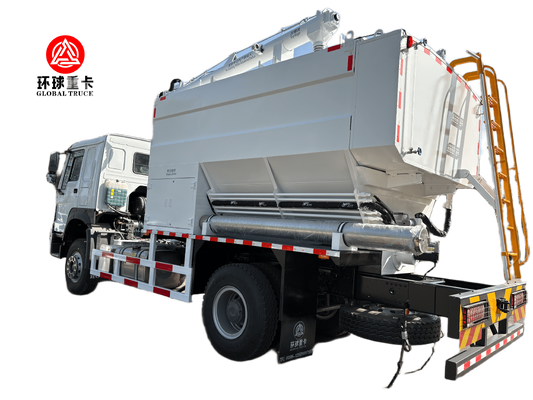

Product Images
