New 6×4 Bulk Emulsion Explosive Mixing and Charging Truck with 8–23 m Telescopic Hose Arm and 0-300 kg/min Charging Efficiency for Mining Blasting

New 6×4 Bulk Emulsion Explosive Mixing and Charging Truck with 8–23 m Telescopic Hose Arm and 0-300 kg/min Charging Efficiency for Mining Blasting

  • New 6×4 Bulk Emulsion Explosive Mixing and Charging Truck with 8–23 m Telescopic Hose Arm and 0-300 kg/min Charging Efficiency for Mining Blasting
  • New 6×4 Bulk Emulsion Explosive Mixing and Charging Truck with 8–23 m Telescopic Hose Arm and 0-300 kg/min Charging Efficiency for Mining Blasting
  • New 6×4 Bulk Emulsion Explosive Mixing and Charging Truck with 8–23 m Telescopic Hose Arm and 0-300 kg/min Charging Efficiency for Mining Blasting
  • New 6×4 Bulk Emulsion Explosive Mixing and Charging Truck with 8–23 m Telescopic Hose Arm and 0-300 kg/min Charging Efficiency for Mining Blasting
New 6×4 Bulk Emulsion Explosive Mixing and Charging Truck with 8–23 m Telescopic Hose Arm and 0-300 kg/min Charging Efficiency for Mining Blasting
Product Details:
Place of Origin: CHINA
Brand Name: HOWO，SHACMAN
Certification: CE
Model Number: HOWO,SHACMAN
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: nude
Delivery Time: 35 workdays
Payment Terms: L/C,T/T
Supply Ability: 50 pcs /YEARS
Contact Now
Detailed Product Description
Product Type: Bulk Emulsion Explosive Mixing And Charging Truck Overall Dimensions (L × W × H): 11000 × 2500 × 4200 Mm
Main Application: Mining, Quarrying, Open-Pit Blasting And Construction Blasting Matrix + Filler Loading Capacity: 9/5 T, 5/9 T, 14/0 T
Gross Vehicle Weight: 32 T Suitable Blasthole Diameter: ≥ DN80 Mm
Telescopic Hose Arm: 8–23 M Hose Feeding Speed: 0.5 M/s
Highlight:

8–23 m Telescopic Hose Arm Bulk Emulsion Explosive Mixing and Charging Truck

,

0-300 kg/min Charging Efficiency Mining Blasting Truck

,

350 HP Heavy-Duty Chassis Special Purpose Truck

New 6×4 Bulk Emulsion Explosive Mixing and Charging Truck for Mining Blasting
Product Overview

The New 6×4 Bulk Emulsion Explosive Mixing and Charging Truck is specifically designed for on-site emulsion mixing and borehole charging in mining, quarrying, and controlled blasting operations. This integrated solution combines material storage, mixing, pumping, and charging functions for efficient field operations.

Technical Specifications
Product Attribute Technical Specification
Product Type Bulk Emulsion Explosive Mixing and Charging Truck
Application Mining, Quarrying and Blasting
Overall Dimensions 11000 × 2500 × 4200 mm
Curb Weight / GVW 16 t / 32 t
Number of Axles 4 Axles
Loading Capacity 9/5 t, 5/9 t, 14/0 t
Charging Efficiency 0-300 kg/min
Telescopic Arm 8-23 m
Delivery Hose DN60 × 40 m
Suitable Blasthole Diameter ≥ DN80 mm
Final Emulsion Density 0.7-1.25 g/cm³
Detonation Velocity 2500-4800 m/s
Engine Power 350 HP / 257.4 kW
Control System Industrial PLC Control
Monitoring System GPS and Real-Time Operation Monitoring
Braking System AEBS (EBS + ESC/ECS)
Brand GLOBAL
Origin China
Target Markets

This mobile emulsion mixing and charging truck is primarily suitable for countries and regions with large-scale mining, quarrying and blasting projects, including:

  • Africa: Zambia, Zimbabwe, Ghana, Tanzania, Botswana, Namibia, South Africa, Guinea, Burkina Faso, Mali, DRC, Mauritania
  • Middle East: Saudi Arabia, Oman, UAE
  • Central Asia: Kazakhstan, Uzbekistan, Mongolia
  • South America: Peru, Chile, Bolivia, Brazil
  • Southeast Asia: Indonesia, Philippines, Vietnam
Note: The actual configuration should be selected according to the local mining conditions, road regulations, vehicle requirements and applicable explosive regulations.
Frequently Asked Questions
What is this truck mainly used for?
It is designed for on-site emulsion mixing and borehole charging in mining, quarrying and other controlled blasting operations.
Can the truck mix and charge on site?
Yes. The truck integrates material storage, mixing, pumping and charging functions for on-site operation.
What is the charging capacity?
The charging efficiency is 0-300 kg/min, depending on the operating configuration and material conditions.
What loading capacity options are available?
Three matrix and filler loading modes are supported: 9/5 t, 5/9 t and 14/0 t.
What size blastholes can it work with?
The specified suitable blasthole diameter is DN80 mm or larger.
How far can the charging arm reach?
The telescopic hose arm can be configured with an extension range of approximately 8-23 m.
Can the truck be customized for different countries?
Yes. Chassis, driving position, loading configuration, hose arm, control system and other specifications can be discussed according to the customer's project and local requirements.
Can you provide technical support and spare parts?
Yes. We can provide technical documentation, operating instructions and spare parts support according to the final configuration.
What information should I provide before requesting a quotation?
It is helpful to provide the country, mining application, required capacity, blasthole diameter, required chassis configuration and project requirements. We can then recommend a suitable configuration.
Is the truck suitable for Africa mining projects?
Yes. The heavy-duty truck chassis and mobile charging system can be configured for demanding mining and quarry applications. The final configuration should be confirmed according to the specific country's regulations and project conditions.
Key Features & Benefits
On-site mixing and charging solution
0-300 kg/min charging efficiency
9/5 t, 5/9 t and 14/0 t loading configurations
8-23 m telescopic charging arm
350 HP heavy-duty chassis
PLC automatic control system
GPS and real-time operation monitoring
Configuration can be adapted to different mining projects
Product Images

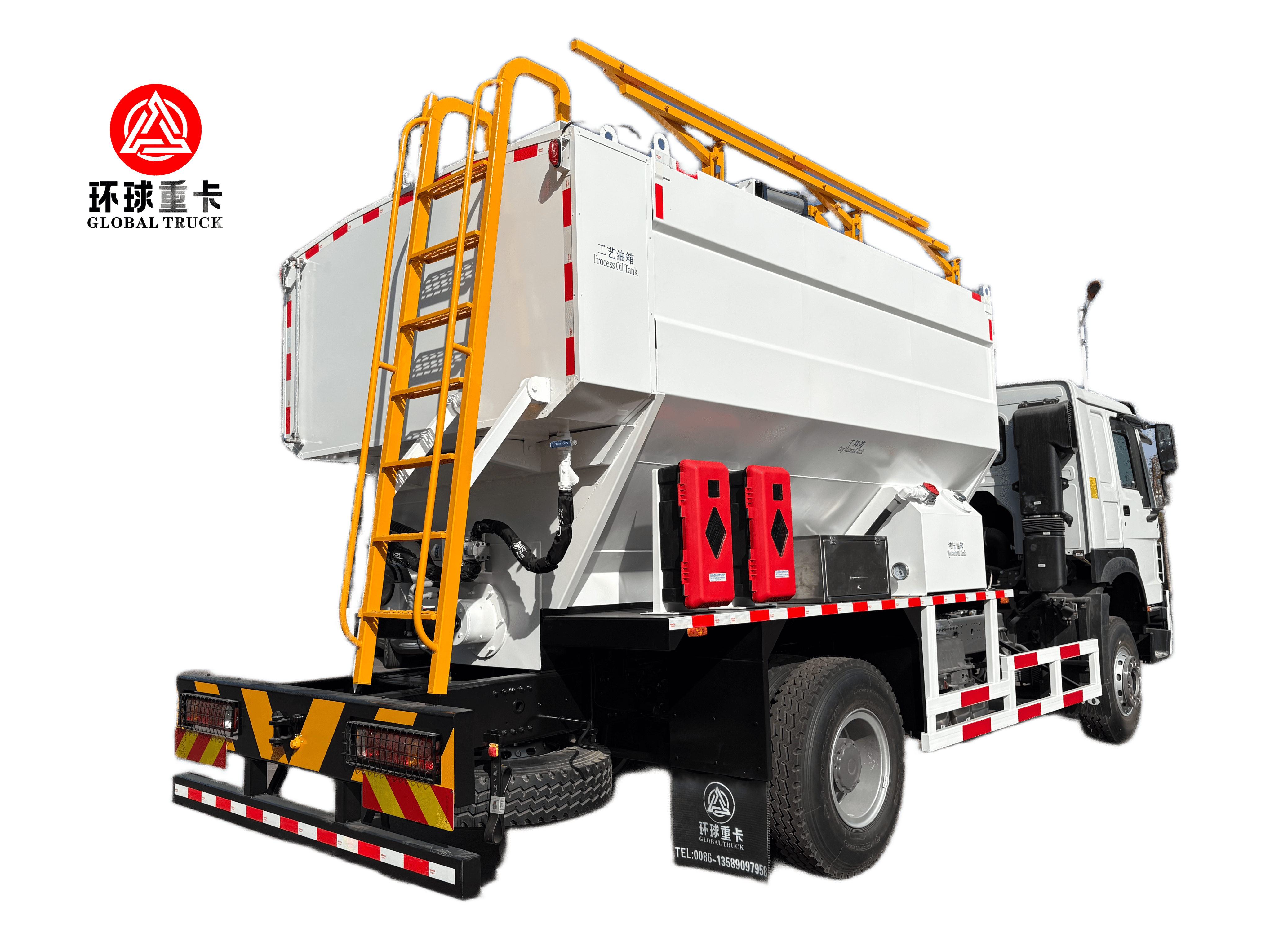

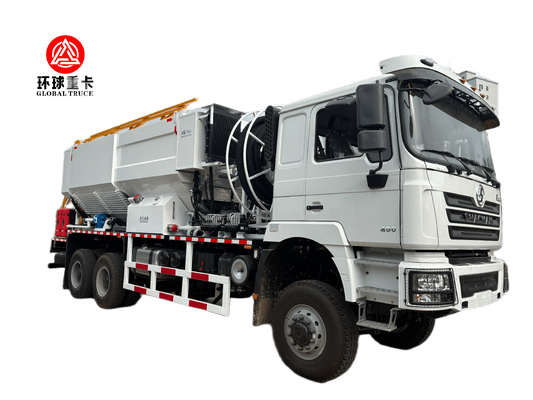

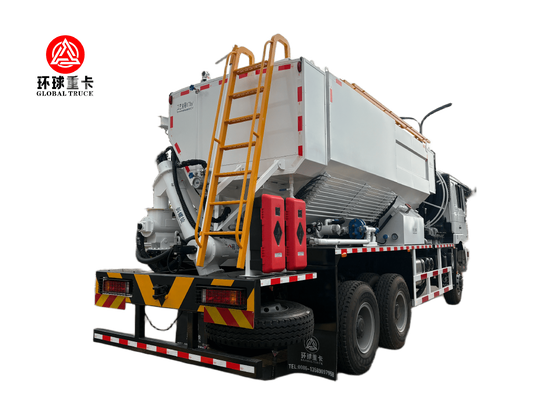

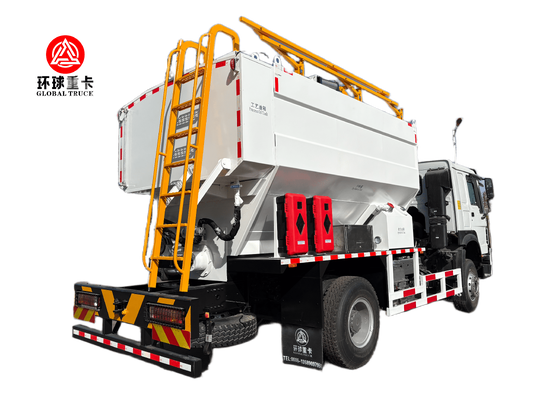

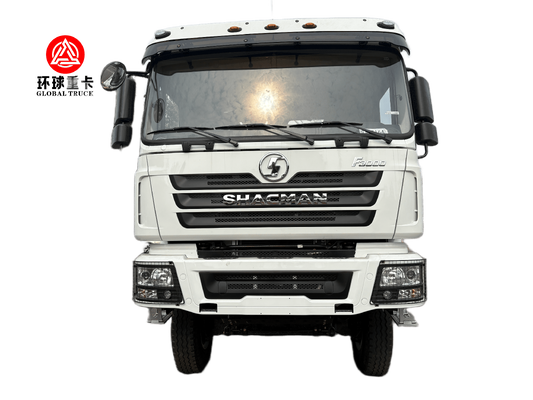

Bulk Emulsion Explosive Mixing and Charging Truck in mining operation Close-up view of charging arm and control system
