Name: New 6×4 20m³ Bulk Emulsion Explosive Mixing and Charging Truck with 300 kg/min Charging Efficiency and 8-23 m Telescopic Hose Arm for Mining Blasting
Brand: Shandong Global Heavy Truck Import&Export Co.,Ltd
SKU: HOWO,SHACMAN
Price: 137,500.00 USD
Availability: InStock

Home Products Special Purpose Truck

New 6×4 20m³ Bulk Emulsion Explosive Mixing and Charging Truck with 300 kg/min Charging Efficiency and 8-23 m Telescopic Hose Arm for Mining Blasting

Product Details:

Place of Origin:	CHINA
Brand Name:	HOWO.SHACMAN
Certification:	CE
Model Number:	HOWO,SHACMAN

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiable
Packaging Details:	nude
Delivery Time:	35 workdays
Payment Terms:	L/C,T/T
Supply Ability:	50 pcs /YEARS

Contact Now

Detailed Product Description

Product Type:	Bulk Emulsion Explosive Mixing And Charging Truck	Overall Dimensions (L × W × H):	11000 × 2500 × 4200 Mm
Main Application:	Mining, Quarrying, Open-Pit Blasting And Construction Blasting	Matrix + Filler Loading Capacity:	9/5 T, 5/9 T, 14/0 T
Gross Vehicle Weight:	32 T	Suitable Blasthole Diameter:	≥ DN80 Mm
Telescopic Hose Arm:	8–23 M	Hose Feeding Speed:	0.5 M/s
Highlight:	300 kg/min charging efficiency Bulk Emulsion Explosive Mixing and Charging Truck , 8-23 m telescopic hose arm Mining Blasting Service Truck , 14/0 t loading capacity Emulsion ANFO Truck

New 6×4 20m³ Bulk Emulsion Explosive Mixing and Charging Truck for Mining Blasting

Product Overview

The 8×4 Bulk Emulsion Explosive Mixing and Charging Truck is engineered for mobile on-site emulsion mixing and borehole charging in mining, quarrying, and blasting operations. This heavy-duty vehicle integrates material storage, conveying, mixing, pumping, and charging functions into a single robust mobile platform.

Technical Specifications

Product Attribute	Technical Specification
Product Type	Bulk Emulsion Explosive Mixing and Charging Truck
Drive Type	8×4
Application	Mining, Quarrying and Blasting
Overall Dimensions	11000 × 2500 × 4200 mm
Curb Weight / GVW	16 t / 32 t
Number of Axles	4 Axles
Loading Capacity	9/5 t, 5/9 t, 14/0 t
Charging Efficiency	0-300 kg/min
Telescopic Arm	8-23 m
Delivery Hose	DN60 × 40 m
Suitable Blasthole Diameter	≥ DN80 mm
Final Emulsion Density	0.7-1.25 g/cm³
Detonation Velocity	2500-4800 m/s
Engine Power	350 HP / 257.4 kW
Control System	Industrial PLC Control
Monitoring System	GPS and Real-Time Operation Monitoring
Braking System	AEBS (EBS + ESC/ECS)
Brand	GLOBAL
Origin	China

Key Features

Heavy-duty 8×4 chassis configuration for stable operation in demanding mining environments
Three matrix and filler loading configurations: 9/5 t, 5/9 t, and 14/0 t
High charging efficiency up to 300 kg/min
Optional 8-23 m telescopic hose arm and DN60 × 40 m delivery hose for flexible operation
Advanced PLC control system with GPS and real-time operation monitoring
Enhanced safety with AEBS braking system (EBS + ESC/ECS)

Target Markets

The 8×4 configuration is ideal for large-scale mining and quarrying projects requiring higher payload capacity and heavy-duty road performance.

Africa: Zambia, Zimbabwe, Tanzania, Ghana, South Africa, Namibia, Botswana, Guinea, Burkina Faso, Mali, DRC, Mauritania
Middle East: Saudi Arabia, Oman, UAE
Central Asia: Kazakhstan, Uzbekistan, Mongolia
South America: Peru, Chile, Bolivia, Brazil
Southeast Asia: Indonesia, Philippines, Vietnam

Note: Final vehicle configuration must be confirmed according to local road regulations, mining conditions, and applicable explosive-related regulations.

Frequently Asked Questions

Why choose an 8×4 chassis?

The 8×4 configuration provides a heavy-duty four-axle platform suitable for demanding mining and quarry applications.

What is the maximum charging efficiency?

The specified charging efficiency is up to 300 kg/min.

What loading modes are available?

The truck supports 9/5 t, 5/9 t and 14/0 t matrix and filler loading configurations.

What blasthole diameter is suitable?

The specified suitable blasthole diameter is DN80 mm or larger.

What is the telescopic arm range?

The optional telescopic hose arm provides an extension range of 8-23 m.

Can the truck be customized?

Yes. The chassis, loading configuration, charging system, hose arm and control configuration can be discussed according to the customer's project requirements.

What information is needed for a quotation?

Please provide the country, mining application, required charging capacity, blasthole diameter and project requirements. We can then confirm the suitable configuration and quotation.

Can it be used in African mining projects?

Yes, the 8×4 heavy-duty configuration can be considered for large-scale mining and quarry projects in Africa. The final specification should be confirmed according to local regulations and site conditions.

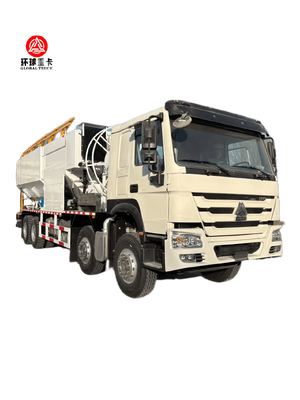

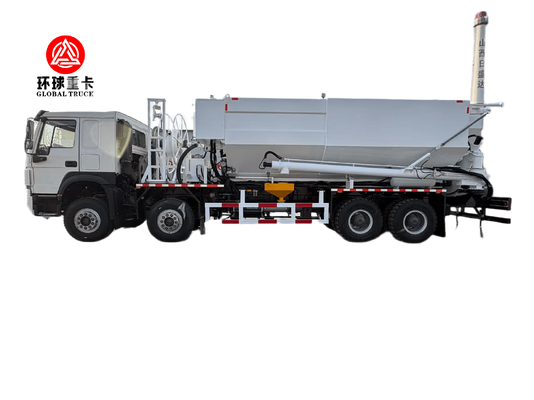

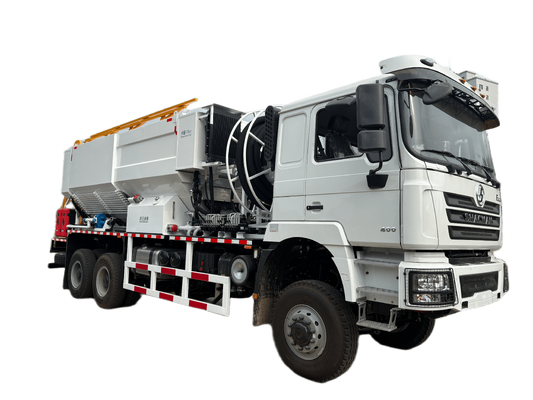

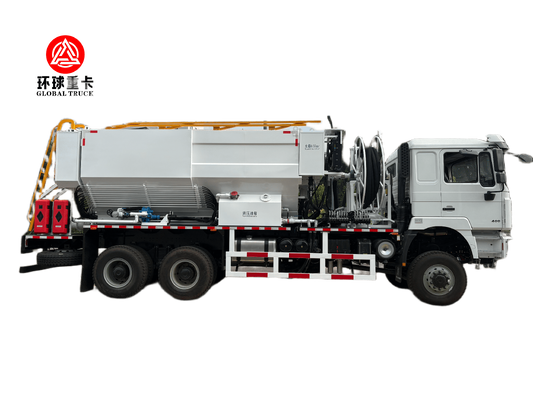

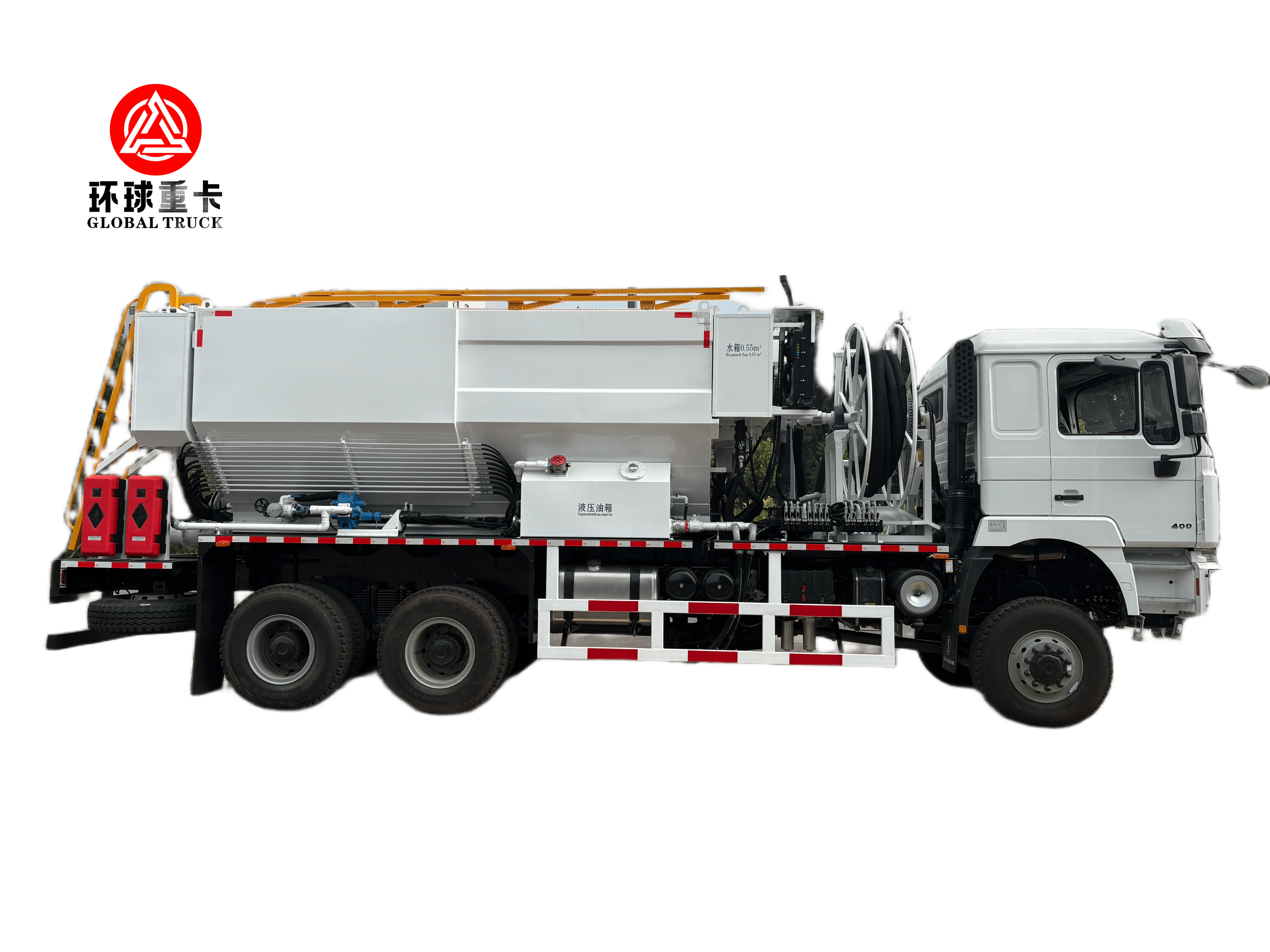

Product Gallery
