Name: 8×4 Bulk Emulsion Explosive Mixing and Charging Truck with 350 HP Diesel Engine and 8-23 m Telescopic Hose Arm for Mining
Brand: Shandong Global Heavy Truck Import&Export Co.,Ltd
SKU: HOWO,SHACMAN
Price: 137,500.00 USD
Availability: InStock

Home Products Special Purpose Truck

8×4 Bulk Emulsion Explosive Mixing and Charging Truck with 350 HP Diesel Engine and 8-23 m Telescopic Hose Arm for Mining

Product Details:

Place of Origin:	CHINA
Brand Name:	HOWO.SHACMAN
Certification:	CE
Model Number:	HOWO,SHACMAN

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiable
Packaging Details:	nude
Delivery Time:	35 workdays
Payment Terms:	L/C,T/T
Supply Ability:	50 pcs /YEARS

Contact Now

Detailed Product Description

Product Type:	Bulk Emulsion Explosive Mixing And Charging Truck	Overall Dimensions (L × W × H):	11000 × 2500 × 4200 Mm
Main Application:	Mining, Quarrying, Open-Pit Blasting And Construction Blasting	Matrix + Filler Loading Capacity:	9/5 T, 5/9 T, 14/0 T
Gross Vehicle Weight:	32 T	Suitable Blasthole Diameter:	≥ DN80 Mm
Telescopic Hose Arm:	8–23 M	Hose Feeding Speed:	0.5 M/s
Highlight:	8×4 Drive Type Bulk Emulsion Explosive Mixing and Charging Truck , 350 HP Diesel Engine Mining Blasting Service Truck , 8-23 m Telescopic Hose Arm Emulsion Anfo Truck

New 8×4 Bulk Emulsion Explosive Mixing and Charging Truck for Kazakhstan Mining

Product Overview

The 8×4 Bulk Emulsion Explosive Mixing and Charging Truck is designed for on-site emulsion mixing and borehole charging in mining and quarrying projects. With an 8×4 heavy-duty chassis and 350 HP diesel engine, the truck provides a robust mobile platform for demanding mining operations.

Technical Specifications

Product Attribute	Technical Specification
Product Type	Bulk Emulsion Explosive Mixing and Charging Truck
Drive Type	8×4
Application	Mining, Quarrying and Open-Pit Blasting
Overall Dimensions	11000 × 2500 × 4200 mm
Curb Weight / GVW	16 t / 32 t
Number of Axles	4 Axles
Loading Capacity	9/5 t, 5/9 t, 14/0 t
Charging Efficiency	0-300 kg/min
Telescopic Arm	8-23 m
Delivery Hose	DN60 × 40 m
Suitable Blasthole Diameter	≥ DN80 mm
Final Emulsion Density	0.7-1.25 g/cm³
Detonation Velocity	2500-4800 m/s
Engine Power	350 HP / 257.4 kW
Control System	Industrial PLC Control
Monitoring System	GPS and Real-Time Operation Monitoring
Braking System	AEBS (EBS + ESC/ECS)
Brand	GLOBAL
Origin	China

Suitable Applications in Kazakhstan

The 8×4 configuration can be considered for:

Open-pit mining
Metal ore mining
Copper and gold mining
Coal mining
Quarrying and aggregate production
Large-scale excavation projects
Mining infrastructure projects

It is intended for project environments where a heavy-duty 4-axle chassis and mobile on-site mixing and charging capability are required.

System Features

The integrated system combines material storage, conveying, mixing, pumping and charging functions. The truck supports 9/5 t, 5/9 t and 14/0 t matrix and filler loading configurations. Charging efficiency can reach 300 kg/min, while the optional telescopic hose arm provides an extension range of 8-23 m.

The PLC control system supports key operating functions, while GPS and real-time monitoring can provide vehicle position and operating information for project management.

Frequently Asked Questions

Q1: Is the truck suitable for Kazakhstan mining projects?

A: The 8×4 heavy-duty configuration can be considered for large-scale mining, quarrying and open-pit projects in Kazakhstan. Final configuration should be confirmed according to the specific project and local requirements.

Q2: Why use an 8×4 chassis?

A: The 8×4 configuration provides a four-axle heavy-duty platform suitable for demanding mining and quarry applications.

Q3: What is the charging efficiency?

A: The specified charging efficiency is 0-300 kg/min.

Q4: What are the available loading configurations?

A: The truck supports 9/5 t, 5/9 t and 14/0 t matrix and filler configurations.

Q5: What is the working range of the charging arm?

A: The optional telescopic hose arm has an extension range of approximately 8-23 m.

Q6: Can the truck be customized for Kazakhstan?

A: Yes. Chassis configuration, driving position, loading configuration, charging system and other specifications can be discussed according to the customer's project requirements and local regulations.

Q7: What information should be provided for a quotation?

A: Please provide the mining application, required capacity, blasthole diameter, working conditions and project location. We can then confirm the suitable configuration and quotation.

Q8: Can you provide spare parts and technical support?

A: Yes. Technical documentation, operating instructions and spare parts support can be provided according to the final vehicle configuration.

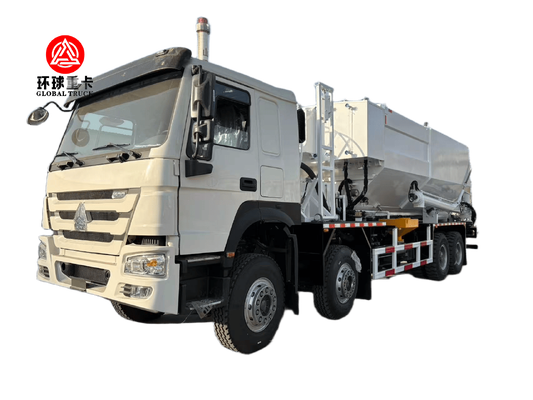

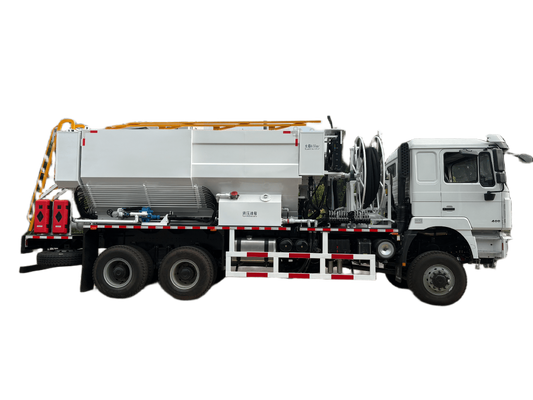

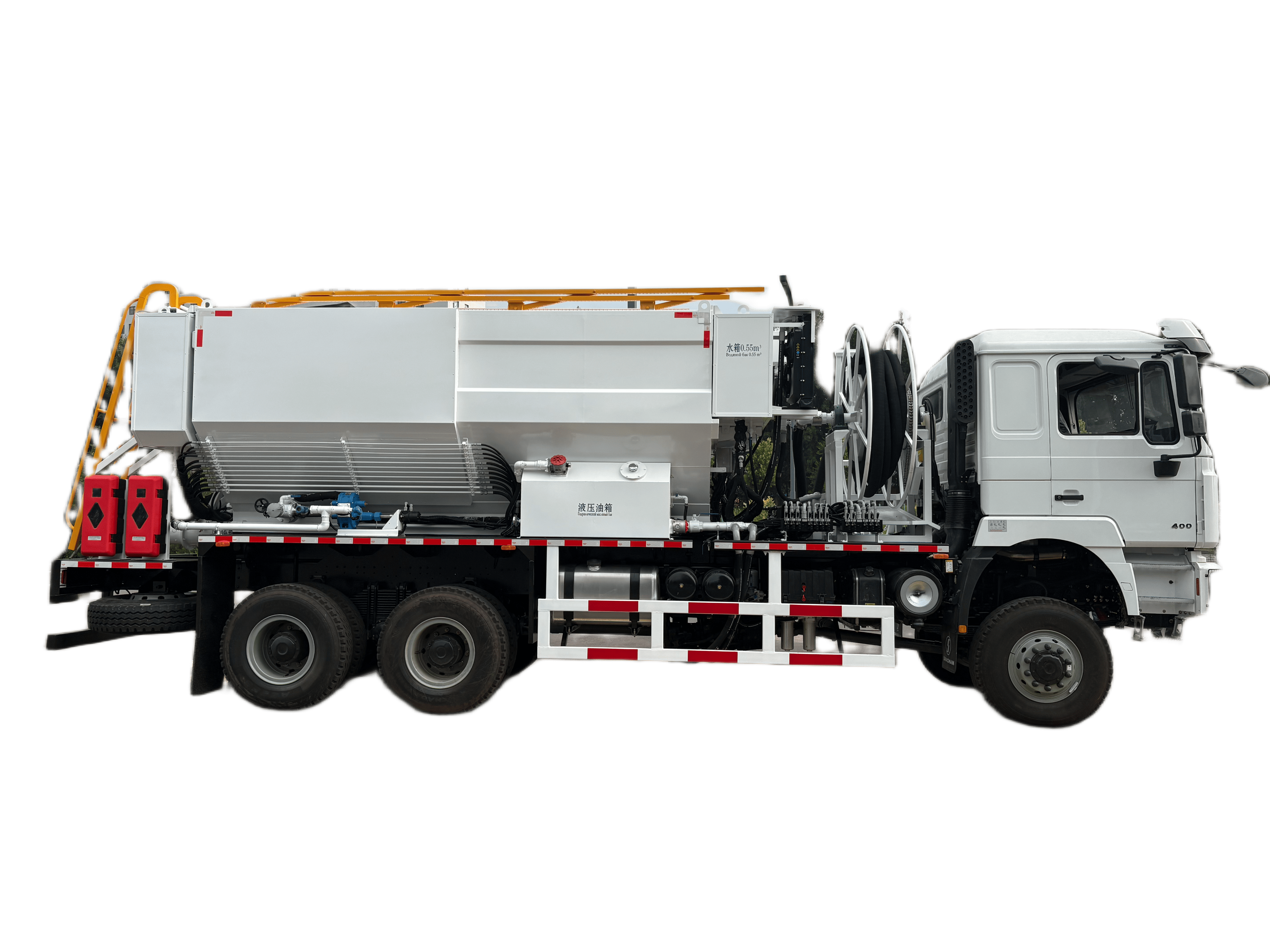

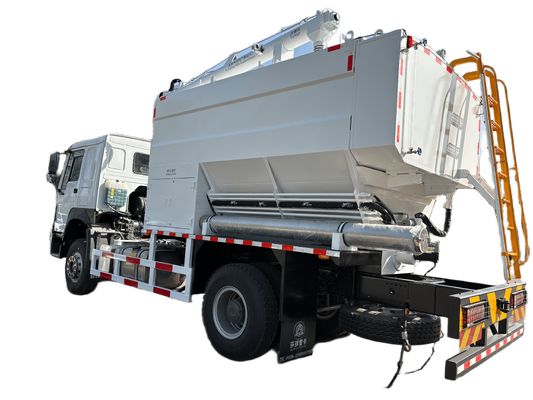

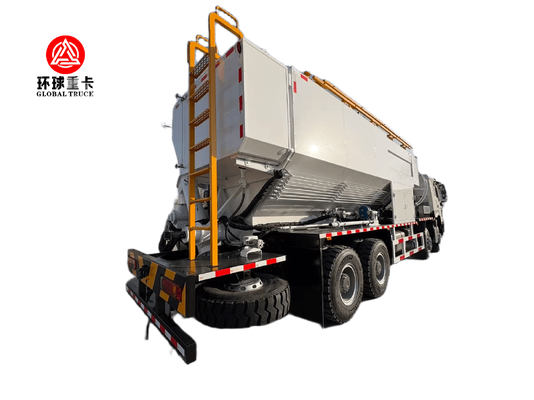

Product Images
