Name: 32 Ton 8×4 Bulk Emulsion Mixing and Charging Truck with 8-23 m Telescopic Hose Arm and 300 kg/min Charging Efficiency for Mining
Brand: Shandong Global Heavy Truck Import&Export Co.,Ltd
SKU: HOWO,SHACMAN
Price: 137,500.00 USD
Availability: InStock

Home Products Special Purpose Truck

32 Ton 8×4 Bulk Emulsion Mixing and Charging Truck with 8-23 m Telescopic Hose Arm and 300 kg/min Charging Efficiency for Mining

Product Details:

Place of Origin:	CHINA
Brand Name:	HOWO.SHACMAN
Certification:	CE
Model Number:	HOWO,SHACMAN

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiable
Packaging Details:	nude
Delivery Time:	35 workdays
Payment Terms:	L/C,T/T
Supply Ability:	50 pcs /YEARS

Contact Now

Detailed Product Description

Product Type:	Bulk Emulsion Explosive Mixing And Charging Truck	Overall Dimensions (L × W × H):	11000 × 2500 × 4200 Mm
Main Application:	Mining, Quarrying, Open-Pit Blasting And Construction Blasting	Matrix + Filler Loading Capacity:	9/5 T, 5/9 T, 14/0 T
Gross Vehicle Weight:	32 T	Suitable Blasthole Diameter:	≥ DN80 Mm
Telescopic Hose Arm:	8–23 M	Hose Feeding Speed:	0.5 M/s
Highlight:	32 Ton Gross Vehicle Weight Bulk Emulsion Mixing and Charging Truck , 8-23 m Telescopic Hose Arm Mining Blasting Service Truck , 300 kg/min Charging Efficiency Special Purpose Truck

New 8×4 32 Ton Bulk Emulsion Mixing and Charging Truck for Kazakhstan Mining

Product Overview

The 8×4 Bulk Emulsion Mixing and Charging Truck is engineered for on-site emulsion mixing and borehole charging in demanding mining and quarrying operations. Featuring a robust 350 HP diesel engine and heavy-duty chassis, this vehicle provides a stable mobile platform for efficient material handling.

Technical Specifications

Product Attribute	Technical Specification
Product Type	Bulk Emulsion Mixing and Charging Truck
Drive Type	8×4
Application	Mining, Quarrying and Open-Pit Blasting
Overall Dimensions	11000 × 2500 × 4200 mm
Curb Weight / GVW	16 t / 32 t
Number of Axles	4 Axles
Loading Capacity	9/5 t, 5/9 t, 14/0 t
Charging Efficiency	0-300 kg/min
Telescopic Arm	8-23 m
Delivery Hose	DN60 × 40 m
Suitable Blasthole Diameter	≥ DN80 mm
Final Emulsion Density	0.7-1.25 g/cm³
Detonation Velocity	2500-4800 m/s
Engine Power	350 HP / 257.4 kW
Control System	Industrial PLC Control
Monitoring System	GPS and Real-Time Operation Monitoring
Braking System	AEBS (EBS + ESC/ECS)
Brand	GLOBAL
Origin	China

Suitable Applications

This versatile truck is ideal for various mining and quarrying operations including:

Gold mining
Copper mining
Uranium mining
Coal mining
Open-pit mining
Metal ore mining
Quarrying
Aggregate production

The final vehicle configuration should be confirmed according to the mine's operating conditions, local road requirements and applicable regulations.

Key Features

The integrated system combines material loading, conveying, mixing, pumping and charging functions for maximum operational efficiency. Key performance features include:

Three loading configurations: 9/5 t, 5/9 t, and 14/0 t
High charging efficiency up to 300 kg/min
Extended reach with DN60 × 40 m delivery hose
Optional telescopic hose arm with 8-23 m extension range
Advanced industrial PLC control system
Comprehensive GPS and real-time monitoring capabilities

Frequently Asked Questions

Is this truck suitable for Uzbekistan mining projects?

Yes. The 8×4 heavy-duty configuration can be considered for large-scale mining, quarrying and open-pit blasting projects in Uzbekistan.

What types of mines can use this truck?

It can be considered for gold, copper, uranium, coal and other metal or mineral mining projects where on-site emulsion mixing and charging is required.

What is the charging efficiency?

The specified charging efficiency is 0-300 kg/min.

What loading capacity options are available?

The system supports 9/5 t, 5/9 t and 14/0 t matrix and filler loading configurations.

How long is the charging hose?

The standard delivery hose specification is DN60 × 40 m.

Can the charging arm be extended?

Yes. The optional telescopic hose arm provides an extension range of approximately 8-23 m.

Can the truck be customized for Uzbekistan?

Yes. We can discuss chassis configuration, driving position, loading system, hose arm and control configuration according to the customer's project requirements.

What information is needed for a quotation?

Please provide the mine location, application, required capacity, blasthole diameter and working conditions. We can then confirm the suitable configuration.

Can it be used in remote mining areas?

The heavy-duty 8×4 chassis is designed for demanding working environments. The final configuration should be selected according to the actual road and site conditions.

Can you provide spare parts and technical support?

Yes. Spare parts, technical documents and operating instructions can be supplied according to the final truck configuration.

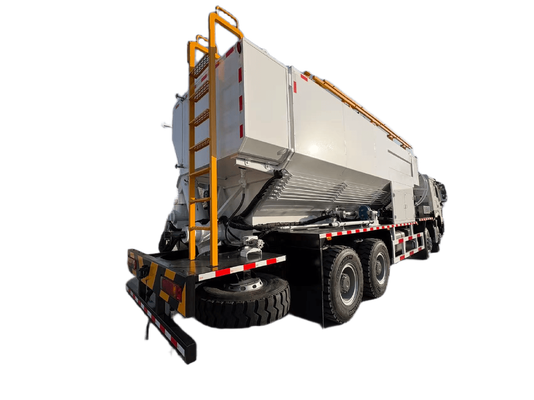

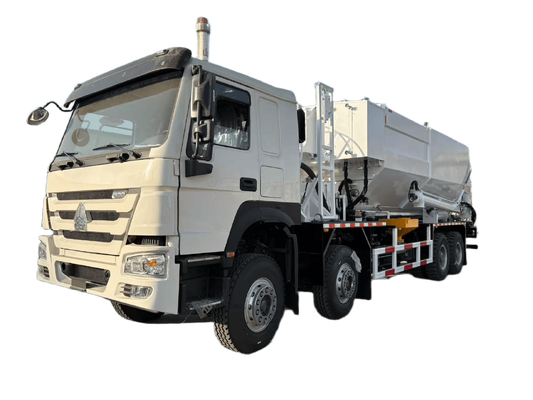

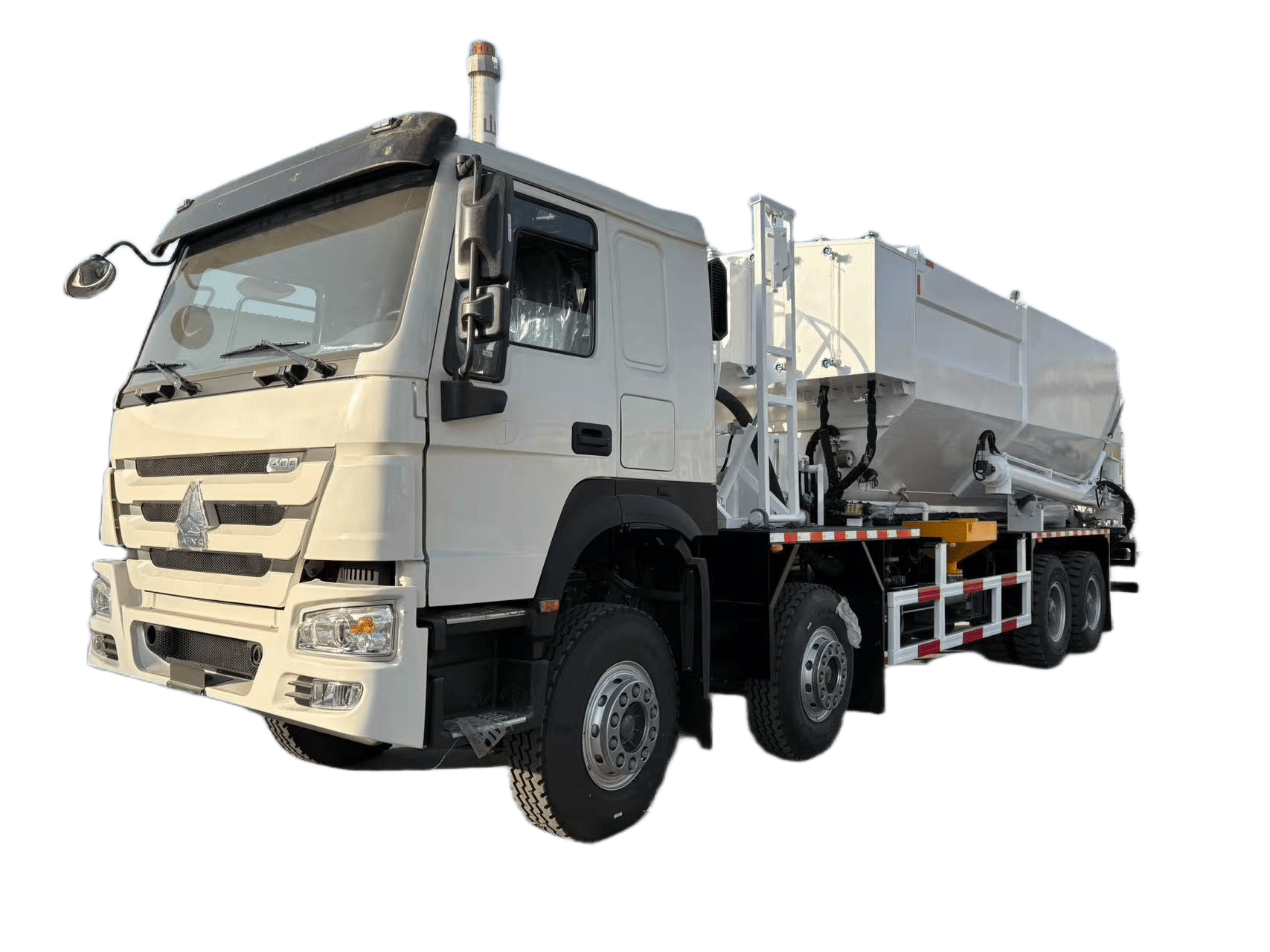

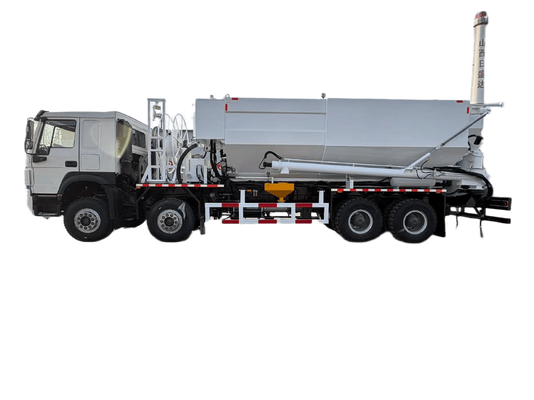

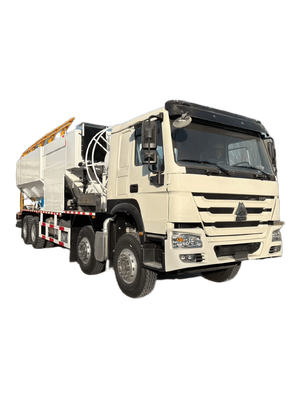

Product Images
