Name: New SHACMAN 6×4 Bulk Emulsion Mixing and Charging Truck with 300 kg/min Efficiency and 8-23 m Telescopic Hose Arm
Brand: Shandong Global Heavy Truck Import&Export Co.,Ltd
SKU: HOWO,SHACMAN
Price: 137,500.00 USD
Availability: InStock

Home Products Special Purpose Truck

New SHACMAN 6×4 Bulk Emulsion Mixing and Charging Truck with 300 kg/min Efficiency and 8-23 m Telescopic Hose Arm

Product Details:

Place of Origin:	CHINA
Brand Name:	HOWO.SHACMAN
Certification:	CE
Model Number:	HOWO,SHACMAN

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiable
Packaging Details:	nude
Delivery Time:	35 workdays
Payment Terms:	L/C,T/T
Supply Ability:	50 pcs /YEARS

Contact Now

Detailed Product Description

Product Type:	Bulk Emulsion Explosive Mixing And Charging Truck	Overall Dimensions (L × W × H):	11000 × 2500 × 4200 Mm
Main Application:	Mining, Quarrying, Open-Pit Blasting And Construction Blasting	Matrix + Filler Loading Capacity:	9/5 T, 5/9 T, 14/0 T
Gross Vehicle Weight:	32 T	Suitable Blasthole Diameter:	≥ DN80 Mm
Telescopic Hose Arm:	8–23 M	Hose Feeding Speed:	0.5 M/s
Highlight:	300 kg/min charging efficiency Bulk Emulsion Mixing and Charging Truck , 8-23 m telescopic hose arm Emulsion Explosive Mixing and Charging Truck , SHACMAN 6×4 heavy-duty chassis Mining Blasting Service Truck

New SHACMAN 6×4 Bulk Emulsion Mixing and Charging Truck for Tajikistan Mining

Product Overview

The SHACMAN 6×4 Bulk Emulsion Mixing and Charging Truck is a mobile solution designed for on-site emulsion mixing and borehole charging in mining and quarrying operations. This equipment combines material storage, conveying, mixing, pumping and charging functions on a SHACMAN 6×4 heavy-duty truck chassis.

Technical Specifications

Product Attribute	Technical Specification
Product Type	Bulk Emulsion Mixing and Charging Truck
Chassis	SHACMAN 6×4 Heavy-Duty Chassis
Application	Mining, Quarrying and Open-Pit Blasting
GVW	32 t
Loading Capacity	9/5 t, 5/9 t, 14/0 t
Charging Efficiency	0-300 kg/min
Telescopic Arm	8-23 m
Delivery Hose	DN60 × 40 m
Suitable Blasthole Diameter	≥ DN80 mm
Emulsion Density	0.7-1.25 g/cm³
Detonation Velocity	2500-4800 m/s
Control System	Industrial PLC Control
Monitoring	GPS and Real-Time Monitoring
Braking System	AEBS (EBS + ESC/ECS)
Origin	China

Tajikistan Mining Applications

This SHACMAN 6×4 bulk emulsion mixing and charging truck is ideal for mining projects in Tajikistan, including:

Gold mining
Silver mining
Coal mining
Metal ore mining
Open-pit mining
Quarrying
Mountain mining
Aggregate production

The 6×4 heavy-duty chassis is specifically designed for demanding mining roads and transport between material preparation areas and blasting sites.

Key Features & Advantages

SHACMAN 6×4 heavy-duty chassis
Designed for mining and quarry applications
On-site mixing and charging system
Up to 300 kg/min charging efficiency
Three matrix and filler loading configurations
8-23 m optional telescopic hose arm
DN60 × 40 m delivery hose
PLC control system
GPS and real-time monitoring
Customizable configuration based on project requirements

Frequently Asked Questions

Q1: Why choose a SHACMAN 6×4 chassis for this truck?

A: SHACMAN 6×4 provides a heavy-duty chassis platform suitable for mining and quarry applications. The final chassis specification can be selected according to the customer's working conditions.

Q2: Is it suitable for high-altitude areas in Tajikistan?

A: The vehicle can be configured according to the project's altitude, ambient temperature and operating conditions. These details should be confirmed before production.

Q3: What is the charging capacity?

A: The specified charging efficiency is 0-300 kg/min.

Q4: What are the available loading modes?

A: The system supports 9/5 t, 5/9 t and 14/0 t matrix and filler loading configurations.

Q5: What is the hose length?

A: The delivery hose is DN60 mm in diameter and 40 m long.

Q6: How far can the telescopic arm extend?

A: The optional telescopic arm has an extension range of 8-23 m.

Q7: Can the truck be customized for a Tajikistan mine?

A: Yes. We can discuss the chassis, loading configuration, hose arm, control system and other specifications according to the actual project.

Q8: What information is needed for a quotation?

A: Please provide the mine location, type of mining, blasthole diameter, required charging capacity, road conditions and operating environment.

Q9: Can you supply spare parts?

A: Yes. Spare parts and technical documentation can be supplied according to the final SHACMAN chassis and equipment configuration.

Q10: Can this truck be used for different mining projects?

A: The equipment configuration can be adjusted for different project requirements. The final configuration should be confirmed according to the specific application and applicable local regulations.

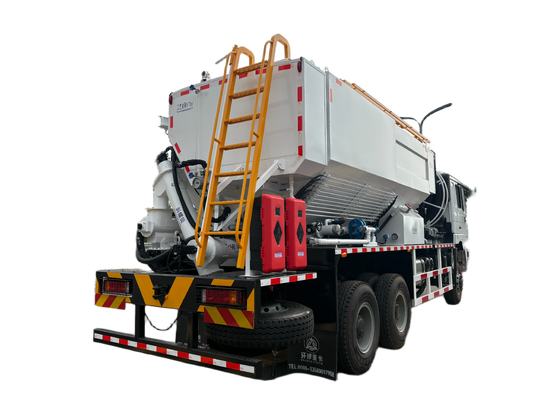

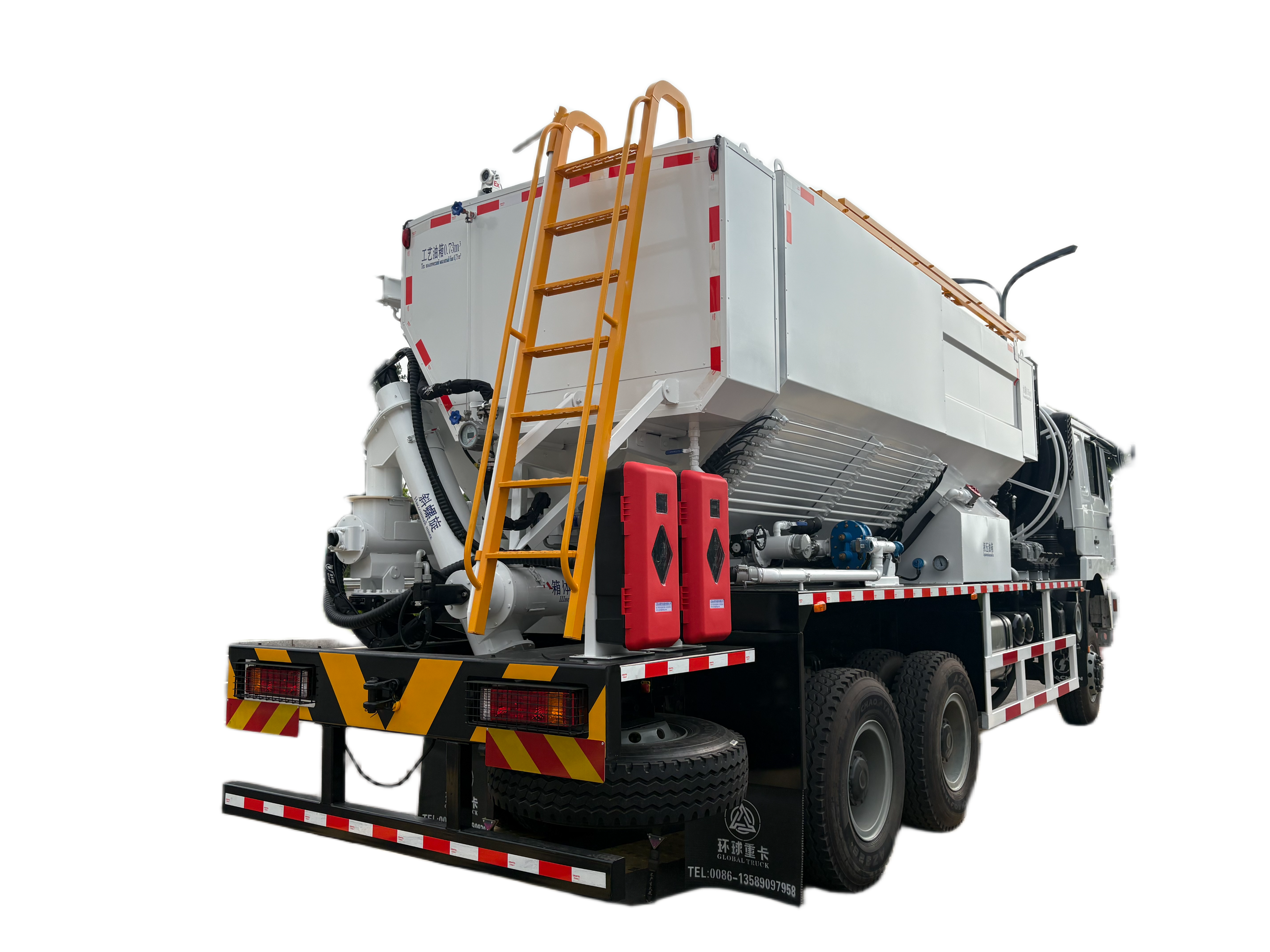

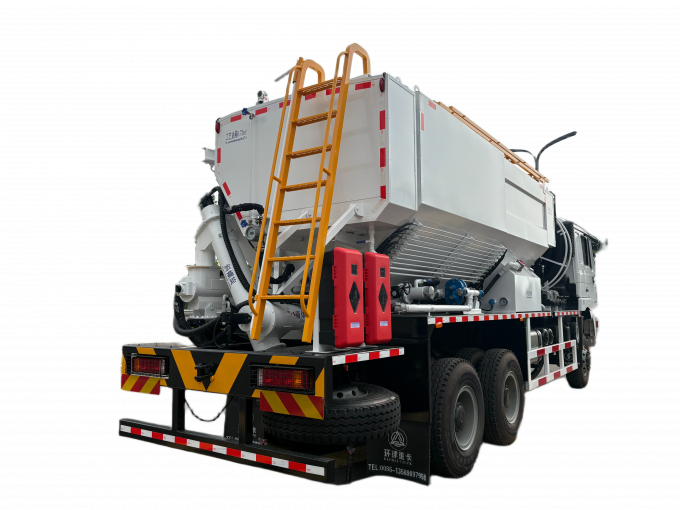

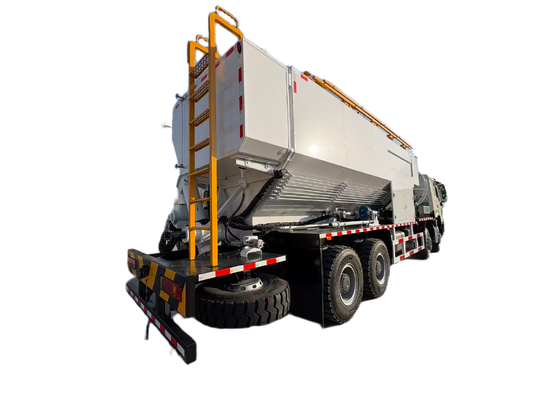

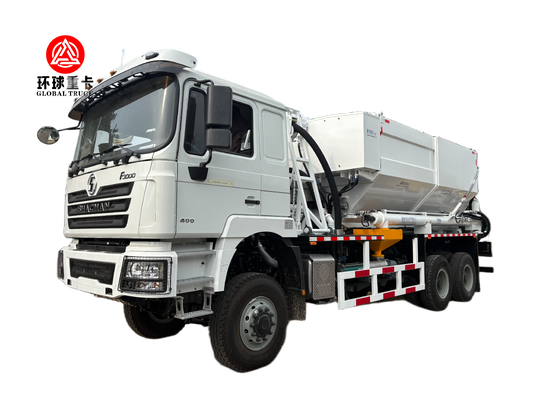

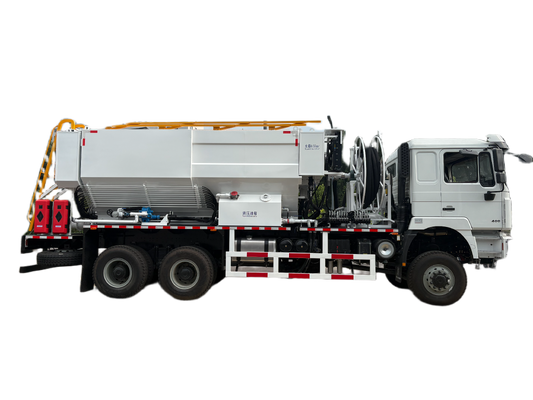

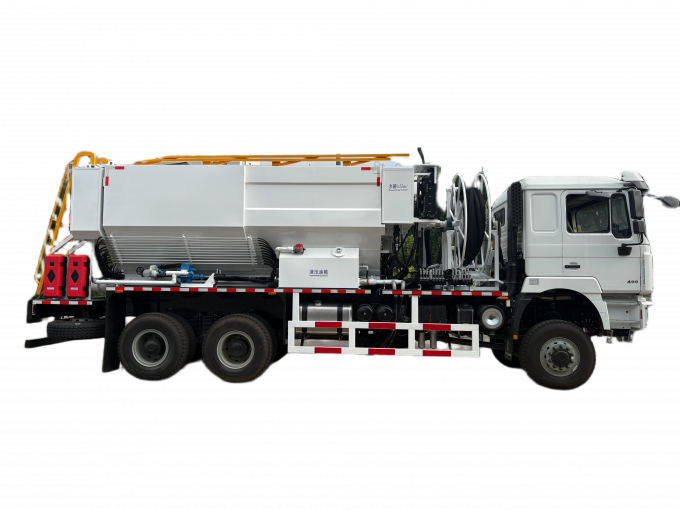

Product Images
