SHACMAN 6x4 Bulk Emulsion Explosive Mixing and Charging Truck with 350 HP Diesel Engine, 300 kg/min Charging Efficiency, and 8-23 m Telescopic Hose Arm

SHACMAN 6x4 Bulk Emulsion Explosive Mixing and Charging Truck with 350 HP Diesel Engine, 300 kg/min Charging Efficiency, and 8-23 m Telescopic Hose Arm

  • SHACMAN 6x4 Bulk Emulsion Explosive Mixing and Charging Truck with 350 HP Diesel Engine, 300 kg/min Charging Efficiency, and 8-23 m Telescopic Hose Arm
  • SHACMAN 6x4 Bulk Emulsion Explosive Mixing and Charging Truck with 350 HP Diesel Engine, 300 kg/min Charging Efficiency, and 8-23 m Telescopic Hose Arm
  • SHACMAN 6x4 Bulk Emulsion Explosive Mixing and Charging Truck with 350 HP Diesel Engine, 300 kg/min Charging Efficiency, and 8-23 m Telescopic Hose Arm
  • SHACMAN 6x4 Bulk Emulsion Explosive Mixing and Charging Truck with 350 HP Diesel Engine, 300 kg/min Charging Efficiency, and 8-23 m Telescopic Hose Arm
SHACMAN 6x4 Bulk Emulsion Explosive Mixing and Charging Truck with 350 HP Diesel Engine, 300 kg/min Charging Efficiency, and 8-23 m Telescopic Hose Arm
Product Details:
Place of Origin: CHINA
Brand Name: SHACMAN F3000
Certification: CE
Model Number: SHACMAN F3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: nude
Delivery Time: 35 workdays
Payment Terms: L/C,T/T
Supply Ability: 50 pcs /YEARS
Contact Now
Detailed Product Description
Product Type: Bulk Emulsion Explosive Mixing And Charging Truck Overall Dimensions (L × W × H): 11000 × 2500 × 4200 Mm
Main Application: Mining, Quarrying, Open-Pit Blasting And Construction Blasting Matrix + Filler Loading Capacity: 9/5 T, 5/9 T, 14/0 T
Gross Vehicle Weight: 32 T Suitable Blasthole Diameter: ≥ DN80 Mm
Telescopic Hose Arm: 8–23 M Hose Feeding Speed: 0.5 M/s
Highlight:

350 HP Diesel Engine Bulk Emulsion Explosive Mixing and Charging Truck

,

300 kg/min Charging Efficiency Special Purpose Truck

,

8-23 m Telescopic Hose Arm Mining Blasting Service Truck

SHACMAN 6x4 Bulk Emulsion Explosive Mixing and Charging Truck
The SHACMAN 6x4 Bulk Emulsion Explosive Mixing and Charging Truck is a heavy-duty mining vehicle designed for professional on-site bulk emulsion preparation and charging applications. Built on a SHACMAN 6x4 chassis, the truck combines material storage, conveying, pumping, charging and intelligent control systems into one mobile platform.
With a 350 HP diesel engine and PTO-powered charging system, this bulk emulsion truck is designed for demanding mining, quarrying and open-pit operations. The integrated PLC control system provides centralized management of the specified working functions, while the dynamic telemetry system supports GPS tracking, operational parameter monitoring and production video transmission.
Key Features
  • SHACMAN 6x4 heavy-duty chassis
  • 350 HP / 257.4 kW diesel engine
  • Integrated bulk emulsion mixing and charging system
  • Loading configurations of 9/5 t, 5/9 t and 14/0 t
  • Charging efficiency up to 300 kg/min
  • DN60 × 40 m conveying hose
  • Optional 8-23 m telescopic hose arm
  • Suitable for blastholes of DN80 mm and above
  • Industrial PLC control system
  • Remote control for specified operating functions
  • GPS tracking and real-time operational monitoring
  • Production video transmission
  • AEBS braking system with EBS + ESC/ECS
  • Heavy-duty manual transmission with reinforced flange PTO
Technical Specifications
Product Type Bulk Emulsion Explosive Mixing and Charging Truck
Chassis SHACMAN 6x4
Engine Power 350 HP / 257.4 kW
Fuel Diesel
Curb Weight 16 t
Gross Vehicle Weight 32 t
Overall Dimensions 11000 × 2500 × 4200 mm
Loading Capacity 9/5 t, 5/9 t, 14/0 t
Charging Efficiency 0-300 kg/min
Latex Matrix Density 1.3 g/cm³
Emulsion Density 0.7-1.25 g/cm³
Detonation Velocity 2500-4800 m/s, adjustable
Telescopic Hose Arm 8-23 m, optional
Conveying Hose DN60 × 40 m
Suitable Blasthole Diameter ≥ DN80 mm
Pipe Feeding/Retracting Speed 0.5 m/s
Control System Industrial PLC
Monitoring System GPS and Real-Time Operational Monitoring
Transmission Heavy-Duty Manual Transmission
PTO Reinforced Flange PTO
Braking System AEBS (EBS + ESC/ECS)
Speed Limiter 79 km/h
Brand GLOBAL
Chassis SHACMAN
Origin China
SHACMAN 6x4 Chassis for Mining Operations
The SHACMAN 6x4 chassis provides a heavy-duty three-axle platform for the integrated bulk emulsion mixing and charging system. The 6x4 configuration is designed for demanding operating environments where traction and chassis durability are important considerations.
The chassis can be matched with the specialized working system according to the required vehicle weight, operating conditions, mine-site requirements and applicable local regulations.
Bulk Emulsion Mixing and Charging System
The vehicle integrates material storage, conveying and charging functions into a mobile working platform. Piston pumps are used for conveying the specified materials, while the charging system is powered through the vehicle engine and PTO.
The system provides a specified charging efficiency of up to 300 kg/min. The final emulsion density is adjustable within the specified range of 0.7-1.25 g/cm³, while the specified detonation velocity range is 2500-4800 m/s.
Intelligent PLC Control and Monitoring
An industrial PLC control system provides centralized control of the specified working functions. Remote control is available for pipe feeding, charging and hole alignment functions.
The dynamic telemetry system supports GPS vehicle tracking, operational parameter monitoring and production video transmission, providing useful information for fleet and equipment management.
Applications
  • Open-pit mining
  • Metal ore mining
  • Coal mining
  • Quarrying
  • Aggregate production
  • Mining contractor operations
  • Professional blasting service projects
The final vehicle configuration and application should be confirmed according to site conditions, operating requirements and applicable local regulations.
Frequently Asked Questions
What is a SHACMAN 6x4 bulk emulsion explosive truck?
It is a specialized mining vehicle combining a SHACMAN 6x4 heavy-duty chassis with an integrated bulk emulsion mixing and charging system.
What engine power does the SHACMAN 6x4 truck have?
The specified engine power is 350 HP, equivalent to 257.4 kW.
What is the charging capacity?
The specified charging efficiency is 0-300 kg/min, depending on the operating configuration and material conditions.
What loading configurations are available?
The system supports 9/5 t, 5/9 t and 14/0 t loading configurations.
What is the hose specification?
The specified conveying hose is DN60 with a total length of 40 meters.
Product Images

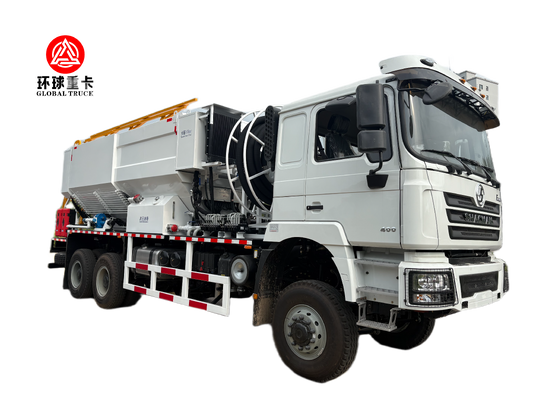

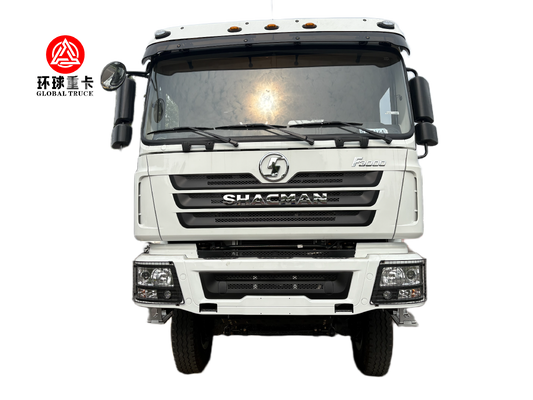

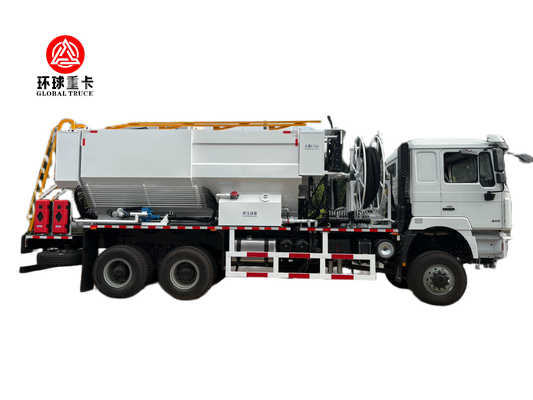

SHACMAN 6x4 Bulk Emulsion Explosive Mixing and Charging Truck - Front View SHACMAN 6x4 Bulk Emulsion Explosive Mixing and Charging Truck - Side View
