New SHACMAN 6×4 Bulk Emulsion Mixing and Charging Truck for Tajikistan Mining
Product Overview

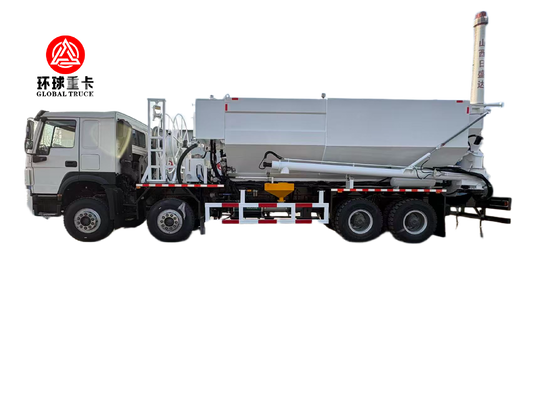

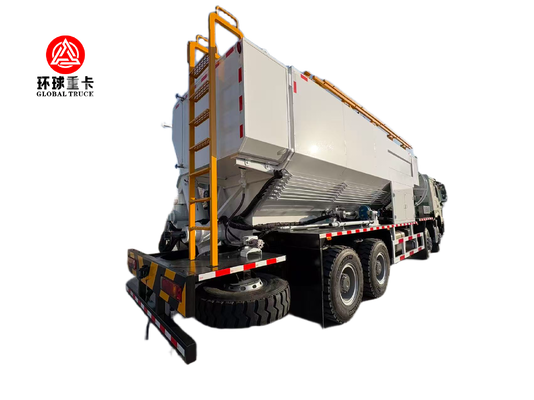

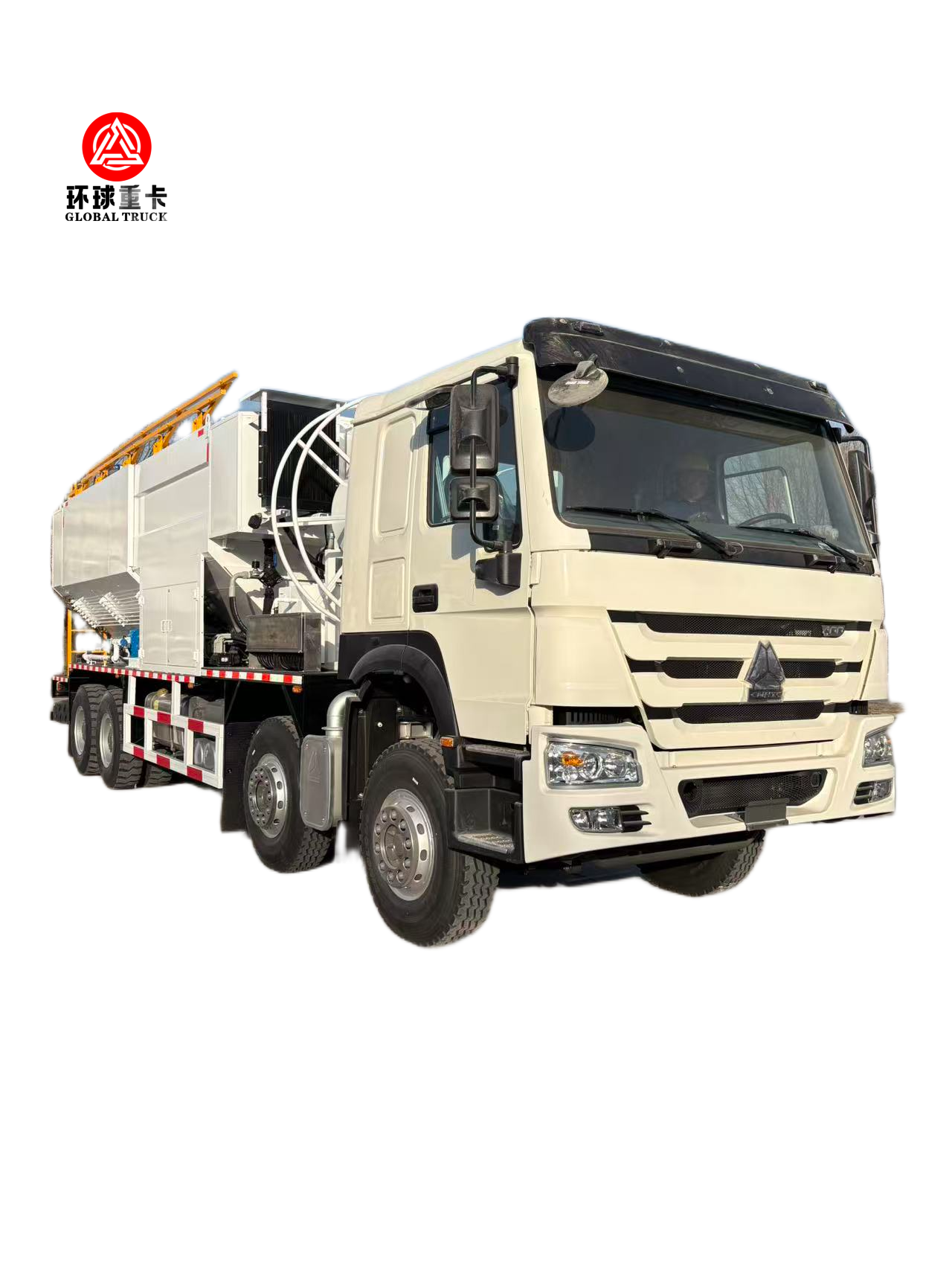

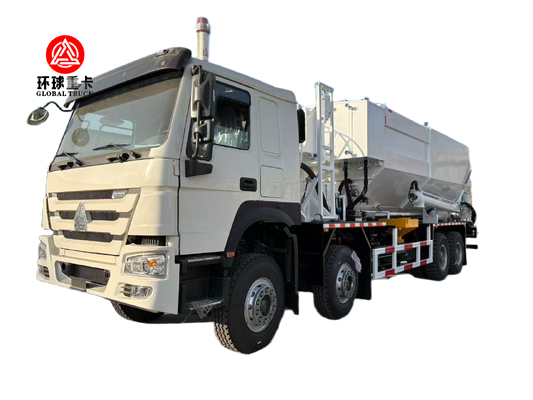

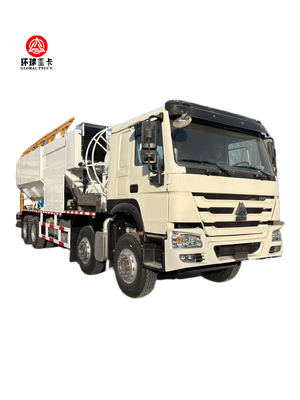

The HOWO-7 8x4 Bulk Emulsion Explosive Mixing and Charging Truck is a heavy-duty mining vehicle designed for professional on-site bulk emulsion preparation and charging applications. Built on a HOWO-7 8x4 chassis, the truck integrates material storage, conveying, pumping, charging and intelligent control systems into one mobile platform.
The 8x4 configuration provides a heavy-duty four-axle chassis platform for demanding mining and quarrying environments. The vehicle is equipped with a 350 HP diesel engine and a PTO-powered charging system, with an industrial PLC control system for centralized management of the specified working functions.
The bulk emulsion charging system provides a charging efficiency of up to 300 kg/min and supports multiple loading configurations. An optional 8-23 m telescopic hose arm and DN60 × 40 m conveying hose are available for different site requirements.
Key Features
- HOWO-7 8x4 heavy-duty chassis
- 350 HP / 257.4 kW diesel engine
- Integrated bulk emulsion mixing and charging system
- 9/5 t, 5/9 t and 14/0 t loading configurations
- Charging efficiency up to 300 kg/min
- DN60 × 40 m conveying hose
- Optional 8-23 m telescopic hose arm
- Suitable for blastholes of DN80 mm and above
- Industrial PLC control system
- Remote control for specified operating functions
- GPS tracking and real-time operational monitoring
- Production video transmission
- AEBS braking system with EBS + ESC/ECS
- Heavy-duty manual transmission with reinforced flange PTO
- Road speed limiter set at 79 km/h
Technical Specifications
| Item |
Specification |
| Product Type |
Bulk Emulsion Explosive Mixing and Charging Truck |
| Chassis |
HOWO-7 8x4 |
| Engine Power |
350 HP / 257.4 kW |
| Fuel |
Diesel |
| Curb Weight |
16 t |
| Gross Vehicle Weight |
32 t |
| Overall Dimensions |
11000 × 2500 × 4200 mm |
| Loading Capacity |
9/5 t, 5/9 t, 14/0 t |
| Charging Efficiency |
0-300 kg/min |
| Latex Matrix Density |
1.3 g/cm³ |
| Emulsion Density |
0.7-1.25 g/cm³ |
| Detonation Velocity |
2500-4800 m/s, adjustable |
| Telescopic Hose Arm |
8-23 m, optional |
| Conveying Hose |
DN60 × 40 m |
| Suitable Blasthole Diameter |
≥ DN80 mm |
| Pipe Feeding/Retracting Speed |
0.5 m/s |
| Control System |
Industrial PLC |
| Monitoring System |
GPS and Real-Time Operational Monitoring |
| Transmission |
Heavy-Duty Manual Transmission |
| PTO |
Reinforced Flange PTO |
| Braking System |
AEBS (EBS + ESC/ECS) |
| Speed Limiter |
79 km/h |
| Chassis Brand |
HOWO |
| Chassis Model |
HOWO-7 |
| Origin |
China |
HOWO-7 8x4 Chassis
The HOWO-7 8x4 chassis provides a heavy-duty four-axle platform for the integrated bulk emulsion mixing and charging system. The 8x4 drivetrain is suitable for applications requiring a larger chassis platform and high vehicle carrying capacity.
The HOWO-7 chassis can be matched with the specialized working system according to the customer's operating environment, mine-site requirements and applicable local vehicle regulations.
Bulk Emulsion Mixing and Charging System
The truck combines the main systems required for professional bulk emulsion charging applications. Piston pumps are used for material conveying, while the charging system is powered through the vehicle engine and PTO.
The specified charging efficiency is 0-300 kg/min. The system supports three loading configurations: 9/5 t, 5/9 t and 14/0 t.
The specified emulsion density range is 0.7-1.25 g/cm³, while the specified detonation velocity range is 2500-4800 m/s.
Telescopic Hose Arm and Charging System
An 8-23 m telescopic hose arm is available as an optional configuration. The vehicle uses a DN60 conveying hose with a specified length of 40 meters.
The hole alignment mechanism uses a single-cylinder design, providing a relatively simple structure for maintenance. The specified suitable blasthole diameter is DN80 mm or larger.
PLC Control and Remote Monitoring
The HOWO-7 8x4 bulk emulsion truck uses an industrial PLC control system for the specified working functions. Remote control can be used for pipe feeding, charging and hole alignment functions.
The dynamic telemetry system supports GPS tracking, operational parameter monitoring and production video transmission, allowing equipment managers to monitor vehicle operation remotely.
Mining and Quarrying Applications
The HOWO-7 8x4 bulk emulsion mixing and charging truck is designed for professional mining and quarrying service applications, including:
- Open-pit mining
- Metal ore mining
- Coal mining
- Quarrying
- Aggregate production
- Mining contractor operations
- Professional blasting service projects
The final vehicle configuration and application should be confirmed according to the mine-site conditions, operating requirements and applicable local regulations.
Frequently Asked Questions
What is a HOWO-7 8x4 bulk emulsion truck?
It is a specialized mining vehicle combining a HOWO-7 8x4 heavy-duty chassis with an integrated bulk emulsion mixing and charging system.
What is the engine power?
The specified engine power is 350 HP, equivalent to 257.4 kW.
What is the gross vehicle weight?
The specified gross vehicle weight is 32 tons, with a curb weight of 16 tons.
What is the charging efficiency?
The specified charging efficiency is 0-300 kg/min, depending on the operating configuration and material conditions.
What loading capacities are available?
The system supports three specified configurations: 9/5 t, 5/9 t and 14/0 t.
What is the hose length?
The specified conveying hose is DN60 × 40 m.
Is the telescopic arm standard?
The 8-23 m telescopic hose arm is an optional configuration and can be selected according to the application requirements.
What blasthole diameter is supported?
The specified suitable blasthole diameter is DN80 mm or larger.
Does the truck have GPS monitoring?
Yes. The dynamic telemetry system supports GPS tracking, operational parameter monitoring and production video transmission.
Can the HOWO-7 8x4 truck be customized?
The vehicle configuration can be discussed according to the customer's required capacity, operating environment, mine-site conditions and applicable local regulations.
How can I request a quotation?
Please provide the destination country, required capacity, application and any specific chassis or working-system requirements. We can then prepare a suitable configuration and quotation.
