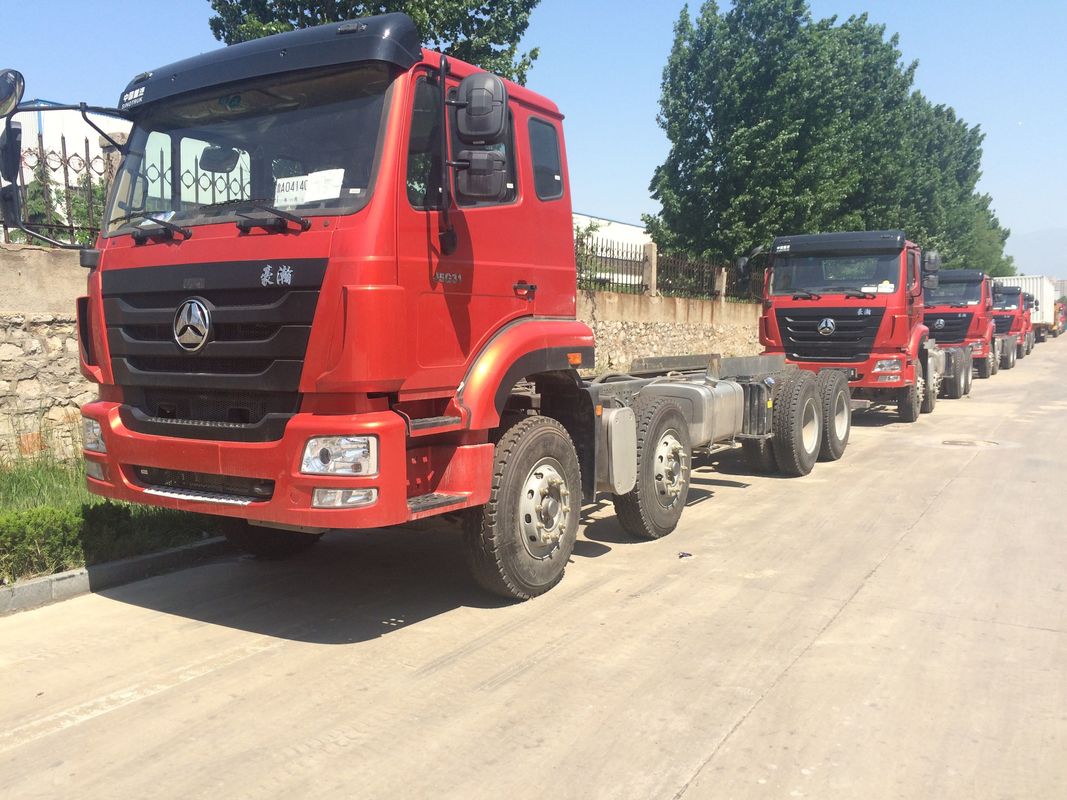

12 Wheeler 8x4 Tractor Unit , Heavy Automatic Tractor Truck HW19710 Transmission

12 Wheeler 8x4 Tractor Unit , Heavy Automatic Tractor Truck HW19710 Transmission

    • 12 Wheeler 8x4 Tractor Unit , Heavy Automatic Tractor Truck HW19710 Transmission
    • 12 Wheeler 8x4 Tractor Unit , Heavy Automatic Tractor Truck HW19710 Transmission
    • 12 Wheeler 8x4 Tractor Unit , Heavy Automatic Tractor Truck HW19710 Transmission
  • 12 Wheeler 8x4 Tractor Unit , Heavy Automatic Tractor Truck HW19710 Transmission

    Product Details:

    Place of Origin: JINAN CITY OF CHINA
    Brand Name: SINOTRUK HOHAN
    Certification: ISO9001
    Model Number: ZZ6255N3646

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 UNIT
    Price: Negotiable
    Packaging Details: Nude
    Delivery Time: 30-45 work days
    Payment Terms: L/C, T/T
    Supply Ability: 500 units/month
    Contact Now
    Detailed Product Description
    Chassis Model: ZZ6255N3646 Driving Type: Left Hand Drive
    Transmission: HW19710, 10 F And 2 R Lifting Model: Ventral Lifting, Strengthen T Model
    Cabin: H17, German BENZ Technology Loading Capacity: 30T
    High Light:

    diesel tractor truck

    ,

    prime mover truck

    SINOTRUK HOHAN Euro 2 8X4 tractor truck 12 wheeler with HW19710 Transmission



    Product desccription:



    This model is new design cabin, the designer from Italy, and Powerful engine, reinforced axle, excellent performance, and the many color choice, and the best cost and performance, deeply favored by oversea customers.



    Packing:



    Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.



    Competitive advantages:



    1. you the high quality trucks and spare parts at reasonable price.

    2. own strong teams in technology that could help you solve problem quickly.

    3. the designs according to your special requirement and ideas.

    4. supply spare parts (original, OEM, and replacement) for all types of trucks

    5. cooperate with efficient logistics which ensure the goods reach you timely and safely.

    6. rich experienced team and could provide good after-sales service



    Chassis model ZZ6255N3646
    Driving type Left hand drive (LHD)
    Color Optional (yellow, red, black, white, blue, grey, green)
    Engine Model SINOTRUK brand, D10.38-50,380hp, Euro III, Diesel.
    Type Six cylinders inline, water cooling, 4 stroke, supercharge intercooler
    Engine net weight (kg) 850
    Rated Power (kw/rpm) 279/2200
    Maximum Torque (Nm) 1590N.m
    Maximum Torque speed 1200~1500RPM
    Compression ratio 17.5:01
    Bore X Stroke 126x123mm
    Displacement L 9.726
    Lgnition order 1-5-3-6-2-4
    Cabin H17, German BENZ Technology, extended cab with one sleeper (berth), air-conditioner, damping comfortable seat, dash board with LCD, MP3, safety belts, curtain, electrical window regulator, adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber devices etc.
    Transmission

    HW19710, 10 F and 2 R, manual.

    Transmission with main and auxiliary transmission structure, main transmission with double counter shaft, auxiliary transmission with planetary reduction.

    Front Axle HF7, rated load 7000kg, drum brake.
    Rear Axles MCY11, rated load 16000kgx2, Speed ratio: 4.11
    Steering D50, power steering with hydraulic system.
    Brake system

    Service brake: dual circuit compressed air brake

    Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

    Auxiliary brake: engine exhaust brake

    Tires 12R22.5 Steel radial tires, plus one spare tire (totally 11 units)
    Max. speed 102km/h
    Fuel tank 600L volume
    Lifting Model Ventral Lifting, strengthen T model
    External dimension 6850x 2496x3700mm
    Loading Capacity 30T
