Home ProductsHeavy Cargo Truck

HW19710 Transmission 10 Wheeler Cargo Truck , Commercial Diesel Cargo Truck

HW19710 Transmission 10 Wheeler Cargo Truck , Commercial Diesel Cargo Truck

    • HW19710 Transmission 10 Wheeler Cargo Truck , Commercial Diesel Cargo Truck
    • HW19710 Transmission 10 Wheeler Cargo Truck , Commercial Diesel Cargo Truck
    • HW19710 Transmission 10 Wheeler Cargo Truck , Commercial Diesel Cargo Truck
  • HW19710 Transmission 10 Wheeler Cargo Truck , Commercial Diesel Cargo Truck

    Product Details:

    Place of Origin: JINAN CITY OF CHINA
    Brand Name: HOWO
    Certification: ISO9001
    Model Number: ZZ1317N3867A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 UNIT
    Price: Negotiable
    Packaging Details: Nude.
    Delivery Time: 30-45 Work days
    Payment Terms: L/C, T/T
    Supply Ability: 500 units/month
    Contact Now
    Detailed Product Description
    Engine: WD615.69(Euro 2) Color:: Green
    Cab: SINOTRUK HW76 Lengthen Cab Clutch: SINOTRUK Φ430 Diaphragm-spring Clutch
    Gross Vehicle Weight:: 31000kg Carriage Internal Dimensions(mm): 8480x2326x800mm
    High Light:

    cargo van box truck

    ,

    cargo transport truck

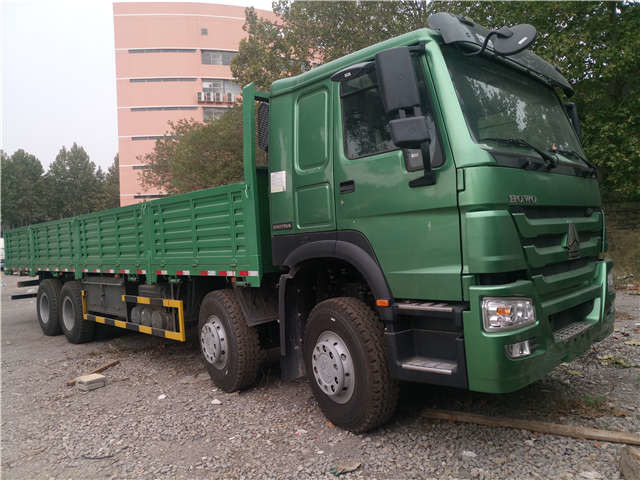

    SINOTRUK HOWO 8x4 Cargo TRUCK 10 Wheeler with green color and HW19710 Transmission





    Description:



    HOWO brand Cargo Truck is produced by SINOTRUK.The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.The engine adopt 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection.Adopting full hydraulic transmission, it can bring the power of engine into full play amply.Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.Rich experience and well after-sale service.



    Packing:



    Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.



    Competitive Advantage:



    1. Adopt HW76 Cab single bunk,new type seat,adjustable steering wheel

    2. EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.

    3. Adopting full hydraulic transmission, it can bring the power of engine into full play amply.

    4. Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.

    5. Rich experience and well after-sale service.



    Model ZZ1317N3867A

    Engine

















    Model WD615.69(Make SINOTRUK)
    Horsepower 336
    Maximum output
    Kw/r/min
    196/2200
    Type 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled,direct injection
    Bore x Stroke 126x130 mm
    Valve 2
    Displacement 9.726L
    Emission standard Euro II
    Weight in kg Kerb weight 10940
    Gross vehicle weight 31000
    Max speed 102km/h
    Wheelbase 1800+3800+1350mm
    Angle Approach 16
    Departure 20
    Overhang Front 1540mm
    Rear 2495mm
    Dimension Overall dimension 10755x2496x3025mm
    Volume of cargo box 8480x2326x800mm




    Cab

    Model SINOTRUK HW76 Lengthen cab
      HW76 cab, single sleeping, with air-condition), all-steel forward control, 70° hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.
    Transmission SINOTRUK HW19710 transmission ,10 forward and 2 reverse



    Clutch

    SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance



    Steering

    ZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving)

    Front Axle

    SINOTRUK HF9 Front Axle



    Rear Axles

    SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73



    Brake System

    Service brake:dual circuit compressed air brake

    Parking brake (emergency brake):spring energy,compressed air operating on rear wheels

    Wheels & Tyres

    Tyres:12.00R20 radial tyre with 1 Spare tire.



    Electrics

    Operating voltage:24V,negative grounded

    24V,7.5KW.Starter:24V,7.5 Kw

    28V,1500W.Alternator:3-phase,28V,1500 W

    2x12V,165Ah.Batteries:2x12 V,165 Ah

    horn,headlamps,fog lights,brake lights,indicators and reverse light

    Oil Tank Square type-400L Aluminum alloy fuel tank



    HW19710 Transmission 10 Wheeler Cargo Truck , Commercial Diesel Cargo Truck 0HW19710 Transmission 10 Wheeler Cargo Truck , Commercial Diesel Cargo Truck 1
