8m3 Tank Capacity Asphalt Construction Equipment Synchronous Chip Sealer LMT5312TFC

8m3 Tank Capacity Asphalt Construction Equipment Synchronous Chip Sealer LMT5312TFC

    • 8m3 Tank Capacity Asphalt Construction Equipment Synchronous Chip Sealer LMT5312TFC
    • 8m3 Tank Capacity Asphalt Construction Equipment Synchronous Chip Sealer LMT5312TFC
  • 8m3 Tank Capacity Asphalt Construction Equipment Synchronous Chip Sealer LMT5312TFC

    Product Details:

    Place of Origin: CHINA
    Brand Name: SINOTRUK
    Certification: CCC/ISO
    Model Number: ZZ1317N4667C

    Payment & Shipping Terms:

    Minimum Order Quantity: 1unit
    Price: Negotiation
    Packaging Details: Nude
    Delivery Time: 35 work days
    Payment Terms: L/C, T/T
    Supply Ability: 1000 units per month
    Contact Now
    Detailed Product Description
    Outline Dimension Of The Whole Vehicle(LxWxh, Mm): 12000x2498x3630 Tank Capacity(m3): 8
    Capacity Of Aggregate Bin(m3): 12 Chassis: ZZ1317N4667C
    Cleaning Way: Clean By High Pressure Air Asphalt Spraying Volume(l/m2): 0.5-3.0

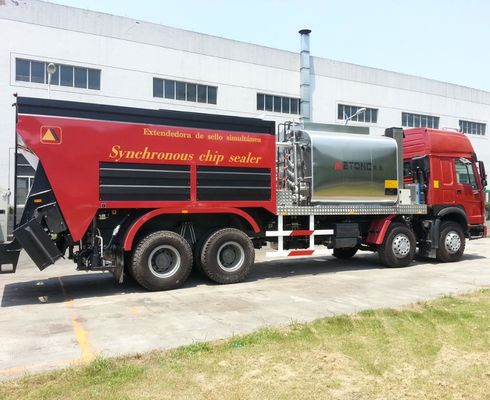

    LMT5312TFC Asphalt Synchronous Chip Sealer with ZZ1317N4667C chassis model



    Description:


    LMT5312TFC intelligent asphalt synchronous sealer honorably launched by Metong has several advantages such as saving cost, good wear resistance and water proof performance. Once the construction is done, the normal traffic could be carried out on the highways in different grades

    Manual adjust asphalt spraying's volume.Burner heating tube, nozzle operate one controlled multiple pneumatic control through pneumatic cylinder control. No heat conduction oil circulation system, asphalt pipeline and the spray bar heated by hot asphalt recycling.By using the digital to display vehicle speed and asphalt tank pump speed and accurate temperature display. Compressed air cleaning system. Take chassis hydraulic force or auxiliary diesel engine as power



    Packing:

    Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.

    Competitive Advantage:



    1.The spray volume is intelligently controlled while the spraying volume and vehicle speed is monitored in real time with closed-loop control.

    2.LMT5312TFC intelligent synchronous asphalt sealer features reliable performance, long durability and easy operation.

    3.The aggregate is transported by the belt,which is especially suitable for the work under the overpass or in the tunnel.

    4.The heating system and circulation heat preservation system which work best could keep the pipeline and nozzle unobstructed. There is no need to clean them with diesel.

    5. The pneumatic system controls the nozzles and aggregate doors.Each aggregate door and nozzle could be governed solely by the computer.

    6. LMT5312TFC intelligent synchronous asphalt seealer has the self-absorption and discharging function to improve its working efficiency.

    7. With compact structrue and nice appearance,it could flexibly change its working direction on the highway.



    Name Intelligent Asphalt Rubber Synchronous Sealer
    Model LMT5312TFC
    Outline Dimension of the Whole Vehicle(LxWxh, mm) 12000x2498x3630
    Tank Capacity(m3) 8
    Capacity of Aggregate Bin(m3) 12
    Chassis ZZ1317N4667C
    Vehicle Pattern Flathead, 8x4 rea drive
    Tire Specification 12.00-20
    Approach Angle/Departure Angle(º) 16/10
    Rated Engine Power/Rotation Speed(kw/r/min) 247/2200
    Fuel Type Diesel
    Seating Capacity(including the driver) 2
    Top Speed(kw/h) 90
    Whole Vehicle Weight(kg) 31000
    Working speed(km/h) 3-4
    Max.Asphalt Flow(L/min) 1200
    Max.Spraying Width(m) 4500
    Asphalt Spraying Volume(l/m2) 0.5-3.0
    Stone Diameter(mm) 5-20
    Max.speed of Stone Chips Spray Roller(r/min) 130
    Max.Spray Width of stone(m) 4.5
    Drive System Hydraulic Drive
    Max.Pressure of Hydraulic System(MPa) 20
    Cleaning Way Clean by high pressure air
