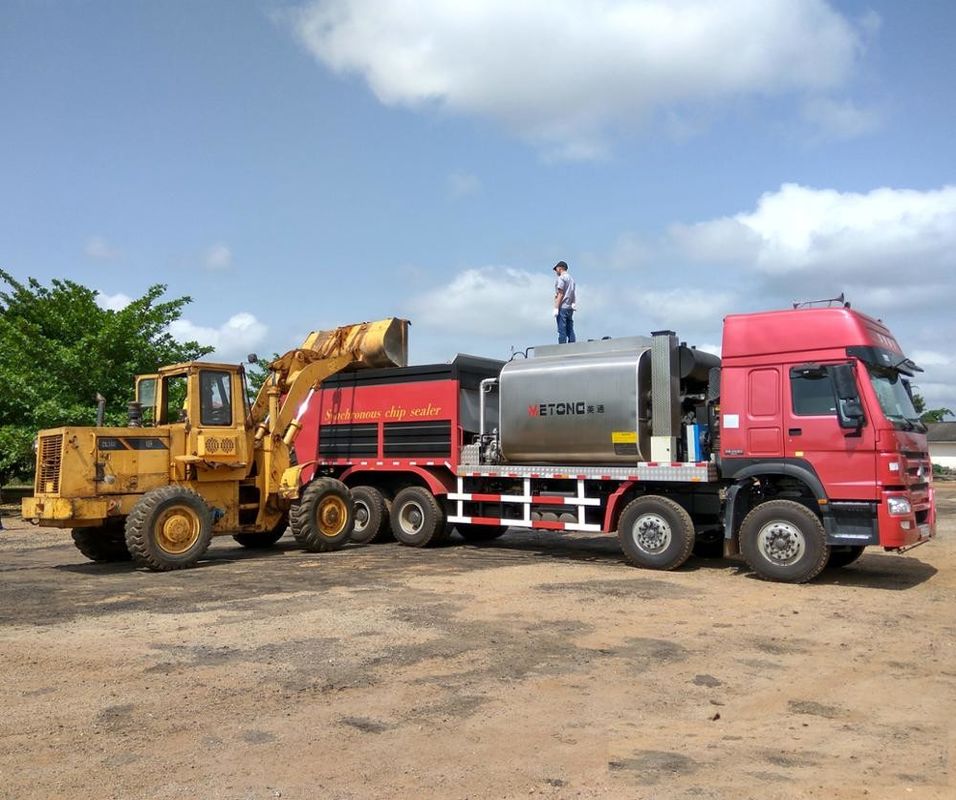

ZZ3317N4667D1 Road Maintenance Vehicle / Asphalt Delivery Truck

ZZ3317N4667D1 Road Maintenance Vehicle / Asphalt Delivery Truck

    • ZZ3317N4667D1 Road Maintenance Vehicle / Asphalt Delivery Truck
    • ZZ3317N4667D1 Road Maintenance Vehicle / Asphalt Delivery Truck
    • ZZ3317N4667D1 Road Maintenance Vehicle / Asphalt Delivery Truck
    • ZZ3317N4667D1 Road Maintenance Vehicle / Asphalt Delivery Truck
    • ZZ3317N4667D1 Road Maintenance Vehicle / Asphalt Delivery Truck
    • ZZ3317N4667D1 Road Maintenance Vehicle / Asphalt Delivery Truck
  • ZZ3317N4667D1 Road Maintenance Vehicle / Asphalt Delivery Truck

    Product Details:

    Place of Origin: CHINA
    Brand Name: HOWO
    Certification: CCC ISO
    Model Number: ZZ3317N4667W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 UNIT
    Price: Negotiation
    Packaging Details: Nude
    Delivery Time: 25-30 work days
    Payment Terms: L/C, T/T
    Supply Ability: 1000 units per month
    Contact Now
    Detailed Product Description
    Model:: ZZ3317N4667D1 Stock Bin Volume:: 12m3
    Asphalt Spray Volume:: 0.2-3.0kg/m2 Gravel Particle Size: 3-30mm
    Spray Accuracy:: 1% Color:: White/Yellow.
    Asphalt Tank Capacity:: 8m3

    Sinotruk 8m3 Asphalt Tank capacity 12m3 Hopper capacity intelligent synchronous chip sealer Truck



    LMT5311TFC Synchronous Chip Sealer,asphalt chip sealer,chip sealer manufacturer

    Brief introduction

    LMT5311TFC intelligent synchronous chip sealer is the special construction machinery of international stature and could be applied into the simultaneous spraying work of highways. It could simultaneously spray asphalt and aggregate or respectively spray them. It recovered soon once the construction is done. It is suitable for the construction of highways at different grades.



    Main featurer

    1. we adopt the highway equipment made by the well-know manufacturer in Italy with over 70 years of history. The asphalt produced by the equipment is with high viscosity.

    2.LMT5311TFC intelligent synchronous chip sealer adopts the innovative low-pressure spraying technology.

    3. The hydraulic flexible spraying pole could be controlled by remote control system.

    Parameters of chip sealer



    Advantage:

    1.Bitumen Asphalt Tank(capacity): 6000L-25000L is optional

    2.Chassis and relevant spare parts could be designed against customers'requirements.

    3.Bitumen Tank with Stainless steel cover and key parts such as burner,bitumen pump all are imported from Italy,America etc by world-renowned brand

    4.Chip spreading and bitumen spraying could be done once to cut greatly labor force and maintaining cost

    5.10-15% lower price than suppliers across asia and 1/5 or 1/6 price of Europe & America items however,gurantee premium quality & functions

    6.Well-developed after-service and quality-guranty promise

    7. Over 10 years manufacturing experience in road-building line,and two maufacturing bases under Metong group

    8.10-20 days timely delivery





    Main Parameter

    Model LMT5311TFC
    Chassis ZZ1317N4667C (SINO TRUCK HOWO)
    Type Cab-over-Engine 8×4 Rear driver
    Engine model WD615.95E
    Power(hp/r/min) 247/2200
    No. of the cab persons 2
    Dimension (mm) 12000×2490×3730
    Kurb weight(kg) 11470
    Max. mass(kg) 31000
    Before suspend (mm) 1525
    Rear suspend (mm) 3000
    Max. truck speed(km/h) 90
    Fuel consumption per one hundred kilometer(L) <19
    Working speed(km/h) 1.2~6.5
    Asphalt tank rated capacity(L) 8000
    Chip storehouse capacity(m3) 12
    Chip diameter(mm) 5-25
    Spray width(m) ≤4
    No. of Bitumen Nozzle 34
    Spray value(L/m2) 0.5~3.0
    Asphalt working permit viscosity(Cst) ≤300
    Cleaning system Max. pneumatic(MPa) 0.6
    Hydraulic system Max. press(MPa) 20
    Cleaning System Air
    Bitumen Pump Belgium Johnson
    Variable Pump German
    Double Gear Pump German Rexroth
    Bitumen Pump Motor Italy Sai
    Heat Conducting Oil Pump Motor China
    Spraying Roller Motor DANMARK Danfoss
    Heat Conducting Oil Pump China
    Burner Italy Riello
    Control System Germen Siemens
    Speed Sensor German Turck
    P-T-O METONG
    Monitor CHINA
    Temperature Control Box JAPAN OMRON
    Nozzle METONG Patent
    Generator Japan Honda


    ZZ3317N4667D1 Road Maintenance Vehicle / Asphalt Delivery TruckZZ3317N4667D1 Road Maintenance Vehicle / Asphalt Delivery TruckZZ3317N4667D1 Road Maintenance Vehicle / Asphalt Delivery TruckZZ3317N4667D1 Road Maintenance Vehicle / Asphalt Delivery Truck

    Certifications

    Our Products' Certificates(CE,SGS,ISO9001,3C,etc.)



    Company Information

    Since its establishment,Shan Dong Sanwei Trade Co.,ltd has always maintaned a sound,stable and rapid development;Now,it has grown into a diversified enterprise focusing on the developemnt of road construction&maintenance machinery.The company has always upheld the opertation principle of "quality first,customer foremost and whole-hearted service"; By virtue of the powerful innovation and R&D strength,as well as the first-class technology and sevice,it has continuously provided the customers with the products of high performace&high reliability; Actually,the Company's products have already covered all provinces&autonomous regions of China,Southeast Asia,Central Asia,Eastern Europe,Africa,South America and other countries and regions,which have won the unanimous recognition and praise from the customers.



    FAQ

    Q1. Why did you begin foreign trade business?

    We entered international market since 2003. With quality products and excellent service, our products are well-received in more than 80 countries.

    Q1. What certificates and patents do you have?

    We have been accredited by CCMQS ISO9001 and SGS. Our AR150 series is CE certified and we can also arrange CE certificate for other products. We have acquired more than 20 patents.

    Q2. What’s the best price of your products?

    Prices vary because the configuration of our products ranges from low-end to high-end. We enjoy a good reputation in the market for offering reasonable prices.



    Q3. What warranty coverage do I have?

    Our Asphalt Distributor has one-year warranty. We will provide free accessories for exported products.



    Q4. What is the requirement to be an agent?

    1. Have professional maintenance staff and excellent service;

    2. Have good relationship with local counterparts;

    3. Annual sales about xx

    4. Have robust sales network.
