Ground Screw Helical Construction Pile Drilling Machine With 4105 Turbocharged Engine

Ground Screw Helical Construction Pile Drilling Machine With 4105 Turbocharged Engine

    • Ground Screw Helical Construction Pile Drilling Machine With 4105 Turbocharged Engine
    • Ground Screw Helical Construction Pile Drilling Machine With 4105 Turbocharged Engine
    • Ground Screw Helical Construction Pile Drilling Machine With 4105 Turbocharged Engine
    • Ground Screw Helical Construction Pile Drilling Machine With 4105 Turbocharged Engine
    • Ground Screw Helical Construction Pile Drilling Machine With 4105 Turbocharged Engine
    • Ground Screw Helical Construction Pile Drilling Machine With 4105 Turbocharged Engine
  • Ground Screw Helical Construction Pile Drilling Machine With 4105 Turbocharged Engine

    Product Details:

    Place of Origin: China
    Brand Name: VOTE
    Certification: ISO/CCC
    Model Number: VT-SPD

    Payment & Shipping Terms:

    Packaging Details: Nude
    Contact Now
    Detailed Product Description
    Condition: New Brand Name: VOTE
    Engine Model: 4105 Turbocharged Engine Track Width: 400mm
    Drilling Speed: 1-2.5m/min Dimension(L*W*H): 5200*2400*1900mm
    Product Model: Solar Pile Driver Drilling Diameter: 300mm

    Ground Screw Helical Pile Driver Construction Pile Drilling Machine



    Product description



    The pile drilling machine is suitable for piling of photovoltaic screw pile, drilling hole works, geological exploration or prospecting, constructional engineering, engineering explosion, and other engineering projects.



    Parameter



    Product model Solar pile driver
    Engine model 4105 Turbocharged engines
    Dimensions 5200*2400*1900mm
    Track width 400mm
    Drilling diameter 300mm
    Drilling speed 1-2.5m/min
    Drilling depth 4m
    Drill pipe speed 74r/min
    Heat sink Air cooling
    Main pump model CBG1-F040/040
    Main pump speed 1500
    Main pump pressure 20
    Main valve flow 100
    Gradeability 30°
    Max. speed 2.5km/h



    Product feature





    1. Drive system: Adopting high quality 4105 type turbocharged diesel engine, rated power up to 65kw, which assure more reliable power source for construction.



    2.Hydraulic system: Advanced hydro system, high quality hydraulic element, and strictly assembly process, ensure the hydraulic system of high efficiency and durability. With 2000 N.m hydraulic oil pump driving force, which can maximally guarantee the working stability and durability of the pile driver.



    3.Modeling design: Adopting homemade high quality crawler base, which is high strength, good stability, and in line with the industrial design idea of beauty, that ensure the solar spiral pile rig a bigger and comfort space for operator.



    4.Production technical: More reasonable production process,after heat treatment wear-resist parts, strict welding process, make sure the rig less out of shape and more perfect performance.



    Our customer all over the world



    African countries:

    Congo, Tanzania, Djibouti, Angola, Chad, Algeria, Sudan, Libya, Eritrea, Uganda, Rwanda, Burundi and the Seychelles. Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria , Namibia, Cameroon, Equatorial Guinea, Ethiopia, Kenya , Gabon and Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, and so on.



    South America:
    Colombia, Venezuela, Guyana, French Guiana, Suriname, Ecuador, Peru, Bolivia, Brazil, Chile, Argentina, Uruguay, Paraguay, Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica, Panama, Antigua and Barbuda

    South Pacific:
    Papua New Guinea, Northern Mariana Islands, French Polynesia, Fiji, Guam, Heard and McDonald Islands, Kiribati, Cocos Islands, Cook Islands, Republic of the Marshall Islands, American Samoa, Microrony West Asia, Nauru, Niue, Norfolk Island, Palau, Pitcairn Islands, Samoa, Christmas Island, Solomon Islands, Tonga, Tuvalu, Tokelau, Wallis and Futuna, Vanuatu, New Caledonia.

    Asia countries:
    North Korea, Mongolia, including Vietnam, Laos, Cambodia, Myanmar, Thailand, Malaysia, Singapore, Indonesia, Philippines, Brunei, Sri Lanka, Maldives, Pakistan, India, Bangladesh, Nepal, Bhutan, Afghanistan, Iran, Azerbaijan, Armenia, Georgia, Turkey, Cyprus, Syria, Lebanon, Palestine, Jordan, Iraq, Kuwait, Saudi Arabia, Yemen, Oman, United Arab Emirates, Qatar, Bahrain, Turkmenistan, Uzbekistan, Kyrgyzstan, Tajikistan, Kazakhstan.

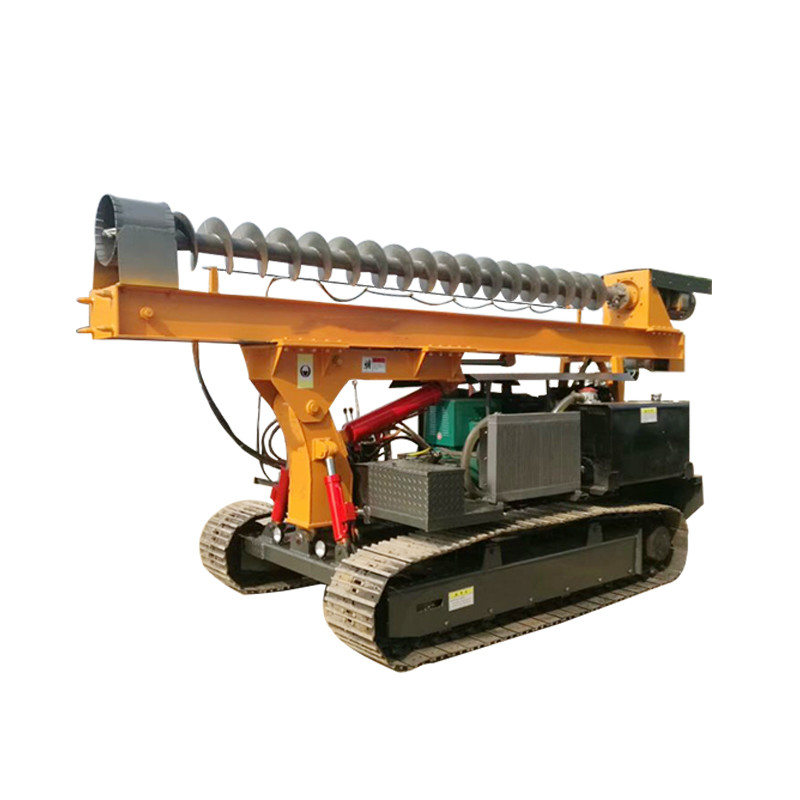

    Product picture



    Ground Screw Helical Construction Pile Drilling Machine With 4105 Turbocharged EngineGround Screw Helical Construction Pile Drilling Machine With 4105 Turbocharged Engine
