QY25K-II 25 Ton Boom Truck Crane / Hydraulic Mobile Mounted Crane

QY25K-II 25 Ton Boom Truck Crane / Hydraulic Mobile Mounted Crane

    • QY25K-II 25 Ton Boom Truck Crane / Hydraulic Mobile Mounted Crane
    • QY25K-II 25 Ton Boom Truck Crane / Hydraulic Mobile Mounted Crane
    • QY25K-II 25 Ton Boom Truck Crane / Hydraulic Mobile Mounted Crane
  • QY25K-II 25 Ton Boom Truck Crane / Hydraulic Mobile Mounted Crane

    Product Details:

    Place of Origin: China
    Brand Name: XCMG
    Certification: ISO/CE
    Model Number: QY25K-II

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiation
    Packaging Details: Nude
    Delivery Time: 30days
    Payment Terms: L/C, T/T
    Supply Ability: 10000 Unit/Units per Year
    Contact Now
    Detailed Product Description
    Max. Lifting Height: 42.15m Rated Loading Capacity: 25ton
    Max.travel Diameter: 75km/h Min.ground Clearance: 275mm
    Fuel Consumption Of 100km: 37L Span: 6m
    Min.turning Diameter: 21.5m Max.gradeability: 30%

    China XCMG QY25K-II 25 Ton Telescopic Boom Hydraulic Mobile Mounted Crane



    Product Description



    • Leading performance:

    the boom length in full extension is 39.5m, the performance leading in 5%. The grade ability is 40%, which make the machine have good road adaptability.

    • The unique U boom and plug-in boom head make the load-carrying capacity more balanced, and lift more smoothly.

    • The unique stretch and retract technique prevents the misoperation; the stretch and retract of the boom is safer and more reliable.

    • The control system is optimized by 8 patents; lifting, rotation, and luffing are easy and reliable.

    • Six unique technologies supply the quality assurance, and make the products keep a high value.

    • The innovative jib system adopts embedded block, plug-in boom head and octagon jib, which has excellent lifting performance and safe and reliable lifting work.

    • The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.

    • Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.

    • Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.

    • The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.

    • The humanity design makes the cab and control cab more spacious, and easy to operate.

    • Six unique manufacturing technologies ensure the high quality.



    Product parameter



    Item     Unit
    Dimensions Total length 12650 mm
    Total width 2500 mm
    Total height 3380 mm
    Weight Operating Weight 29400 Kg
    Front axle load 6200 Kg
    Rear axle load 23200 Kg
    Power Engine model SC8DK280Q3/WD615.329
    Engine power ratings 206/2200 312/2200 Kw(r/min)
    Engine torque ratings 1112/1400 1160/1400 N.m(r/min)
    Travel Max.travel diameter 75 Km/h
    Min.turning diameter 21.5 m
    Min.ground clearance 275 mm
    Approach angle 16 .
    Departure angle 13 .
    Max.gradeability 30 %
    Fuel consumption of 100km 37 L
    Driving Parameters Max.total lifting capacity 25 t
    Min. working radius 3000 mm
    Turning radius at swing table tail 3.065 m
    Max.lifting torque 1010 Kn.m
    Basic boom lifting length 10.7 m
    Longest boom lifting length with secondary arm 42.15 m
    Longest boom lifting length 34.19 m
    Outrigger longitudinal distance span 5.14 m
    Outrigger lareral distance span 6

    m



    Working speed Elevation duration for secondary boom 75 s
    Elevation duration for fully extended boom 100 s
    Max.rotation speed ≥2.5 r/min
    Max.speed for main winch ≥120 m/min
    Max.speed for auxiliary winch ≥120 m/min

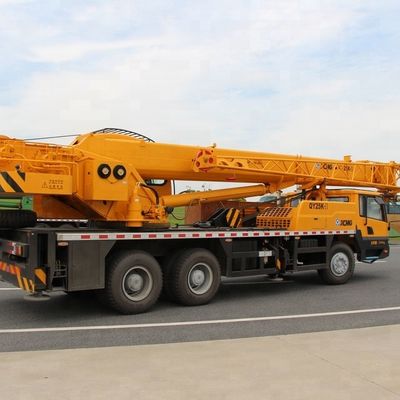

    Product picture



    QY25K-II 25 Ton Boom Truck Crane / Hydraulic Mobile Mounted CraneQY25K-II 25 Ton Boom Truck Crane / Hydraulic Mobile Mounted CraneQY25K-II 25 Ton Boom Truck Crane / Hydraulic Mobile Mounted CraneQY25K-II 25 Ton Boom Truck Crane / Hydraulic Mobile Mounted Crane
