Home ProductsHeavy Earth Moving Machinery

XC870K Heavy Earth Moving Machinery Cummins Engine 7440*2350*3450m

XC870K Heavy Earth Moving Machinery Cummins Engine 7440*2350*3450m

  • XC870K Heavy Earth Moving Machinery Cummins Engine 7440*2350*3450m
  • XC870K Heavy Earth Moving Machinery Cummins Engine 7440*2350*3450m
  • XC870K Heavy Earth Moving Machinery Cummins Engine 7440*2350*3450m
  • XC870K Heavy Earth Moving Machinery Cummins Engine 7440*2350*3450m
XC870K Heavy Earth Moving Machinery Cummins Engine 7440*2350*3450m
Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE/ISO9001
Model Number: XC870K
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 500 Unit/Units per Month
Contact Now
Detailed Product Description
Machine Weight: 7600kg Engine Brand: Cummins
Power(W): 82kw Max. Travel Speed: ≥40
Max. Breakout: 66kN Dimension(Long * Breadth * High): 7440*2350*3450m
Bucket Capacity: 1m3 Engine Model: B4.5
High Light:

dirt moving equipment

,

earth digging equipment

Yellow XCMG XC870K 2.5 Ton Backhoe China Loader Mini Tractor 7440*2350*3450m ​

Product description



1, The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.

2, The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.

3, The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.

4, The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.


The double pump confluence system with unloading function can automatically or manually switch over the individual pump based on the working condition and unload the high pressure by auxiliary pump, featuring high intelligence and energy-saving.

The XCMG's independently developed load-sensing system features smooth digging and loading combination motions, low motion changeover impact, and high efficiency and energy-saving.

During the digging and loading combination operations, the engine power to the drive system can be easily cut off so that all power is supplied to the hydraulic system to improve the digging and loading efficiency.

The machine automatically switches to two-wheel drive mode while traveling in gear IV to eliminate the parasitic power loss.



Specification





Description
Unit
Parameter value
Chassis type


integrated
Drive style


4 drive/2 drive
Digging working device


middle
Outline dimensions(L×W×H)
mm
7440×2350×3450
Total weight
kg
7600
Max. travel speed
km/h
≥40
Wheelbase
mm
2180
Engine
Power
kW
82
Supplier
tier 3 tier 2 tier 3 tier 2
Loading device
Bucket capacity
1
Rated load
kg
2500
Max. breakout
kN
66
Max. discharge height
mm
2770
Max. discharge distance
mm
755
System pressure
Mpa
24
Digging device
Bucket capacity
0.3
Max. digging radius
mm
5460
Max. digging depth
mm
4425
Max. digging force
kN
63
System pressure
Mpa
24

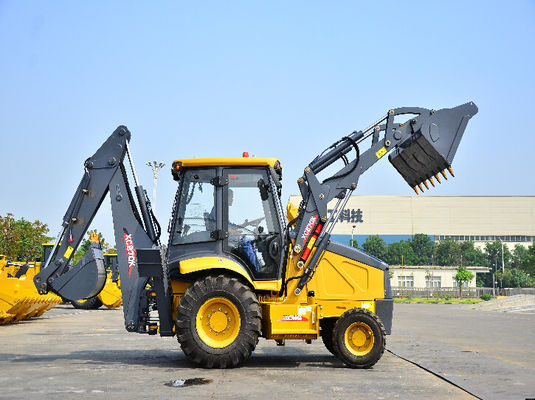

Product picture



XC870K Heavy Earth Moving Machinery Cummins Engine 7440*2350*3450m 0XC870K Heavy Earth Moving Machinery Cummins Engine 7440*2350*3450m 1XC870K Heavy Earth Moving Machinery Cummins Engine 7440*2350*3450m 2XC870K Heavy Earth Moving Machinery Cummins Engine 7440*2350*3450m 3
