Bucket Type 18m Bridge Inspection Vehicle With FAW Chassis HZZ5311JQJJF

Bucket Type 18m Bridge Inspection Vehicle With FAW Chassis HZZ5311JQJJF

    • Bucket Type 18m Bridge Inspection Vehicle With FAW Chassis HZZ5311JQJJF
    • Bucket Type 18m Bridge Inspection Vehicle With FAW Chassis HZZ5311JQJJF
    • Bucket Type 18m Bridge Inspection Vehicle With FAW Chassis HZZ5311JQJJF
  • Bucket Type 18m Bridge Inspection Vehicle With FAW Chassis HZZ5311JQJJF

    Product Details:

    Place of Origin: CHINA
    Brand Name: HZ
    Certification: ISO/CCC
    Model Number: HZZ5311JQJJF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiation
    Packaging Details: Nude
    Delivery Time: 30-45 work days
    Payment Terms: L/C, T/T
    Supply Ability: 1000 pieces per month
    Contact Now
    Detailed Product Description
    Max. Horizontal Range: 18M Max. Crossing Of Sound Barrier: 4300mm
    G.V.W: 31000KG Fuel Type: Diesel
    Overall Dimension: 12472(L)×2500(W)×4000(H)mm Emission Standard: Euro 3

    Bucket type-HZZ5311JQJJF 18m Bridge Inspection Vehicle With FAW Chassis



    Product specification :



    Type Bucket type
    Max. horizontal range 18M
    Max. lowering depth 23M
    Space required on bridge 3500mm
    Max. overbridging of sidewalk 5200mm
    Max. crossing of sound barrier 4300mm
    The first scope of rotation 0-90°
    The second scope of rotation 0-180°
    Max. working height 15M
    Max. load on platform 250KG
    G.V.W 31000KG
    Overall dimension 12472(L)×2500(W)×4000(H)mm





    Packing:

    Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.


    Our advantages:



    A quality control team with more than 20 years' experience has been set up in our company. All the members in this team have more than 20 years' experience in the quality control of special purpose vehicle. Each step in the manufacturing process has been strictly monitored to guarantee the products' high quality. No matter what are your interested items, they will be in the same outstanding quality.



    FAQ:



    18m Bridge Inspection Vehicle (Bucket type-HZZ5311JQJJF) is the latest operating vehicle which independently developed by our company, it has nice exterior, compact structure, easy operation, safe and reliable features. It can safely and efficiently send staff and testing equipment to any location which the bridge magnitude allowed, in the meanwhile complete the work in the shortest time. It also meet the testing requirements for most different bridges.

    Bucket type Bridge inspection vehicle used FAW chassis, drive mode is 8 × 4, the maximum driving speed is 90km / h, maximum working speed is 10m/min, parts of hydraulic components and control components imported. The dedicated device uses first scalable, second rotating , third luffing mechanism, forming a three-dimensional space, six degrees of freedom space motion system, can safely and efficiently send staff and testing equipment to any location which the bridge magnitude allowed.

    .



    Company information:



    Founded in 2001,Shandong Sanwei Trade Co.,Ltd is a group of companies and a large factory&exporter authorized by SINOTRUK,FAW, BEIBEN,XCMG. Registered capital: US$90,000,000.00 . Headquartered in Jinan city of CHINA, the company has environmental advantages.Its business scope include: international trade business, domestic sales, Binzhou sales.The company has a professional sales team of 100 people, of which 50 people are responsible for overseas markets. They are proficient in English, French, Arabic, Spanish, Portuguese and other language skills. There are 50 people in charge of the domestic market, 80% of whom have more than 5 years of experience in truck and construction



    Reference pictures:

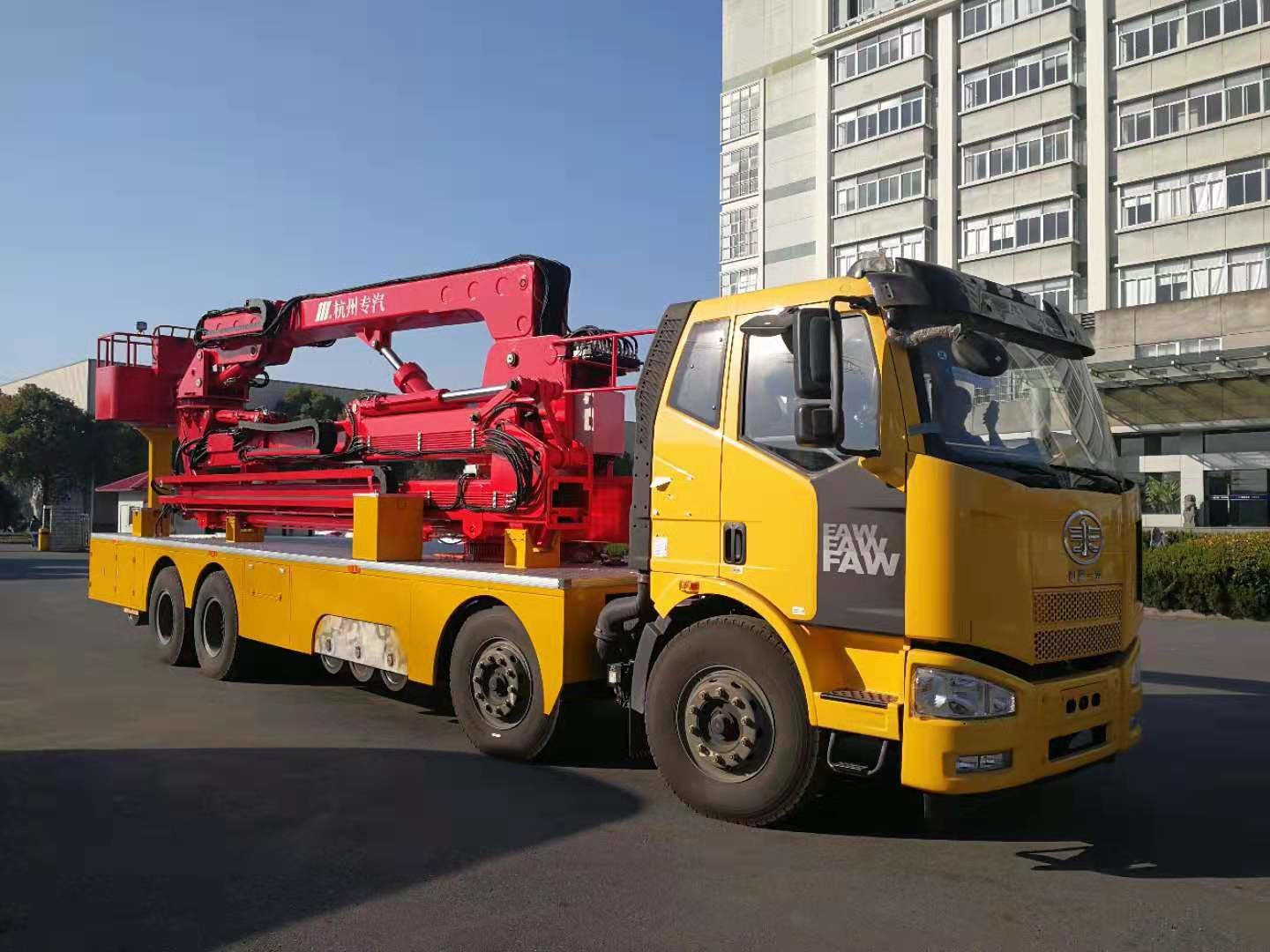

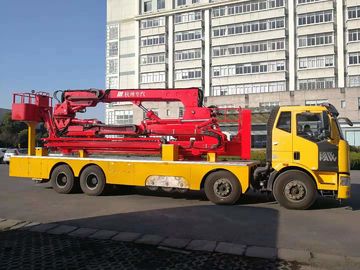

    Bucket Type 18m Bridge Inspection Vehicle With FAW Chassis HZZ5311JQJJFBucket Type 18m Bridge Inspection Vehicle With FAW Chassis HZZ5311JQJJF
