| Place of Origin: | CHINA |
| Brand Name: | HZ |
| Certification: | CCC/ ISO |
| Model Number: | HZZ5311JQJ22 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 UNITS/MONTH |
| Dimension (mm):: | 12595x2500x4000 Mm | Drive Type:: | 8X4 |
|---|---|---|---|
| G.V.W.:: | 37500kg | Maximum Width For Crossing Sidewalk:: | 3500mm |
| Horizontal Operation Range Under Bridge:: | 12500mm-22000mm | Maximum Driving Speed :: | 85 Km/h |
| High Light: | aircraft refueler trucks,truck mounted concrete pump |
||

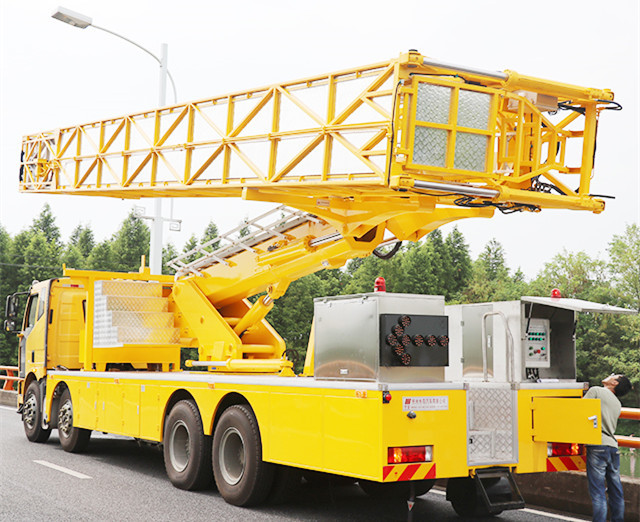

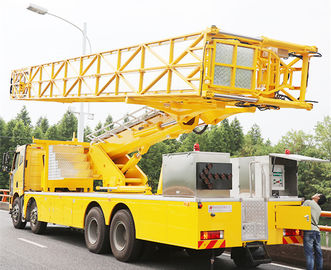

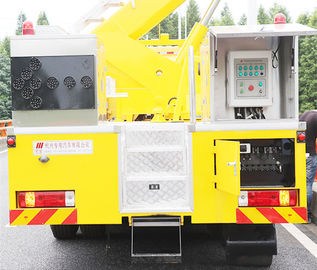

8x4 Arm Type Bridge Inspection Vehicle Bailey With CA1310P63K2L6TCA1 Chassis
Specification:
| Model | HZZ5311JQJ22 |
| Drive Type | 8×4 |
| Chassis Model | CA1310P63K2L6TCA1E4(Euro4) |
| Maximum Net Power of Engine | 206KW(280HP) |
| G.V.W. | 37500 kg |
| Overall dimensions | 12595×2500×4000 mm |
| Maximum Driving Speed | 85 km/h |
| Maximum Operation Speed | 10 km/h |
| Horizontal Operation Range Under Bridge | 12500mm-22000mm |
| Maximum Width for Crossing Sidewalk | 3500mm |
| Maximum Height for Crossing Guardrail | 3500mm |
| Maximum Loading Capacity for Extensible Platform | No Extensible Status is 800kg, Full Extensible Status is 700kg. |
| Maximum Loading Capacity for the end of Platform | No Extensible Status is 400kg, Full Extensible Status is 350kg. |
| The First Scope Rotation Angle | 0~90° |
| The Second Scope Rotation Angle | 0~180° |
| Occupation Width On the Bridge During Working Time | 2800mm |
| Maximum Vertical Operating Range Under The Bridge | 8100mm |
| Width of Working Platform | 1080mm |
| Classification of Wind Resistance | ≤12.5m/s |
| Fix Stabilizer for Rear Axle | Cylinder |
| Control Mode | Remote/Panel/Emergency |
| Wireless Remote Control | Germany NBB |
| Emergency Generator | America KOHLER |
| Hydraulic System | Electro-hydraulic Proportional Servo System(HAWE, Germany) |
| Amble Motor | Machinery Hydrostatic Transmission(France POCLAIN) |
Description:
We provide all kinds of special purpose vehicle, such as 22m Bridge Inspection Vehicle , tank truck, van semi-trailer, and etc. Our New technology 22m Bridge Operation Inspection Vehicle Truck for custom are widely used in all kinds of situation. Our New technology 22m Bridge Operation Inspection Vehicle Truck for custom can make your work much smoother and safer. We have professional design team with more than 20years' experience of special purpose vehicle. We have all kinds of special purpose vehicle fit all work situation for you. Also we accept custom design for our customers.
Horizontal truss :
Horizontal truss is consists of outside and inside truss.
Outside truss is made of high-strength steel, used advanced welding process to ensure the light weight.
Inside truss welded by high-strength aluminum alloy, it has nice appearance and light weight, meanwhile has sufficient strength and rigidity.
Through two supporting rollers to support inside truss to move in the rail.
The telescoping of horizontal truss through hydraulic motor drive the chain to move.
Outside truss mounted electrical limit for inside truss to ensure the safety of control.
Vertical truss :
Vertical truss is welded by high strength seamless torque tube profiles.
Vertical truss using left and right guide rail structure, it has nice appearance and light weight while has sufficient strength and rigidity.
Vertical truss using single cylinder to control telescopic, the range is 7000mm.
Hydraulic system:
It is consists of hydraulic pump, hydraulic motor, lifting hydraulic cylinder, telescopic hydraulic cylinder, supporting wheel cylinder, hydraulic valve and hydraulic accessories.
Hydraulic pipelines using ferrule-type compression joint and precision seamless steel tubes.
Hydraulic valves using WALVOIL(Italy) and HAWE(Germany) brand.
Hydraulic pump using HAWE(Germany) brand.
Electrical system:
Controller: EPEC(Finland)
Display screen: ESA(Italy)
Electric switch: SCHNEIDER(France)
Electrical system using DC 24V.
Proximity switch using inductive and photoelectric.
It has self-diagnostic function.
It has parameters auto-recovery function.
|
|
|
|
Video Monitoring System It consists of color LCD screen, high optical zoom camera, infrared night vision reversing cameras, etc. It enabling multi-intercom, platform monitoring platform camera, reversing video and other functions. Video monitor screen can be automatically switched according to the operation |
Vehicle Amble System
Excellent quality and performance hydraulic amble motor drive
Drawing for outer dimensions(Front,side and working state side)
