|Place of Origin:||CHINA|
|Minimum Order Quantity:||1|
|Delivery Time:||30-45 Days|
|Payment Terms:||L/C, T/T|
|Max. Horizontal Range Under Bridge::||19m-22m||Overall Dimensions::||12565(L)x2500(Wx4000 (H)mm|
|Max. Lowering Depth::||8m||Fuel Type::||Diesel|
|Engine Power::||239 KW||Max. Over-bridging Of Sidewalk::||3000mm|
aircraft refueler trucks,
truck mounted concrete pump

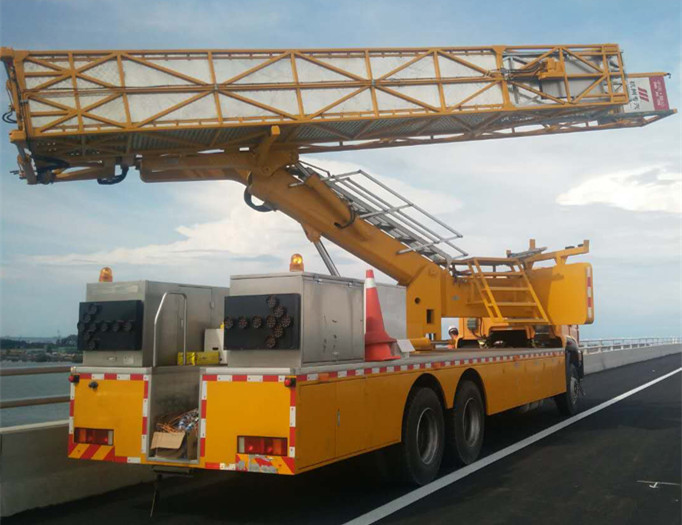

19-22m HZZ5318JQJ 8x4 Professional Platform Type Bridge Inspection Truck
|Max. horizontal range||15M,17m||19m, 22M|
|Max. lowering depth||8000mm||8000mm|
|Width of platform||1000mm||11000mm|
|Space required on bridge||2600mm||2600mm|
|Max. load on platform||600KG||800 kg|
|Max. load on telescopic platform||300KG||400 kg|
|Max. Over-bridging of sidewalk||2500mm||3000 mm|
|Max. crossing of sound barrier||3500mm||4200mm|
|The first scope of rotation||0-90°||0-90°|
|The second scope of rotation||0-1800||0-1800|
|Max. self-propelled speed||15m/min||15m/min|
|control system||Wireless remote control, Panel control, emergency manual control||Wireless remote control, Panel control, emergency manual control|
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
Cost Effective Solution:
Optimized and cost effective Chassis ( China FAW, SINOTRUK, Swedish Volvo, SCANIA optional) we can also design according to customer's local brand chassis brand
We design and manufacture all series bridge inspection truck from 12m to 22m

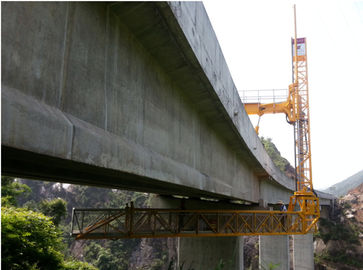

Our platform type bridge inspection truck are widely used in all kinds of under-bridge project: Such as inspections, repairs, stripping operations, painting and sandblasting, general maintenance, bearing replacement, installation and replacement of under-bridge pipelines and cables.
Good capabilities of high-spanning and wide-spanning, suitable for different operating conditions. Self-propelled ability during operation, max. moving speed 15m/min. Deploying time is only 5 minutes.
More Safety Design:
Key Parts with Europe brand (Such as control system, Hydralic system, Electric system)
Standby gasline generator make sure the woker safety during hydraulic fault.
Four inboard hydraulic stabilizers to ensure the truck stable during work
adopt mechanical, hydraulic and electrical triple limit, with the function of interlocking
180° work platform rotation
400kg/800kg work platform capacity
Two drive systems:
Main Hydraulic system: Truck engine P.T.O.
Back-up system: 10kw gasoline generator
Four inboard hydraulic stabilizers
Wireless remote, panels and emergency three operating mode.
Multi-party video communication system.
Self-propelled hydro-static drive
Self-erecting in single lane in 5 minutes
