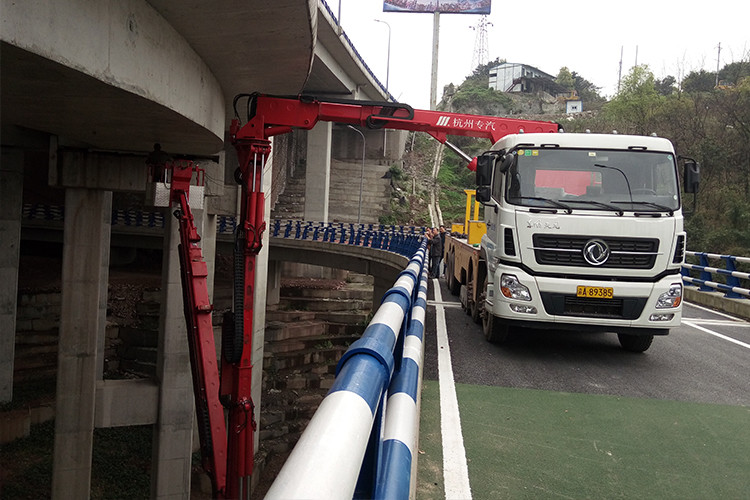

18m Platform 8x4 Bucket Bridge Inspection Truck With 21.7m Max. Under Bridge Depth

18m Platform 8x4 Bucket Bridge Inspection Truck With 21.7m Max. Under Bridge Depth

  • 18m Platform 8x4 Bucket Bridge Inspection Truck With 21.7m Max. Under Bridge Depth
  • 18m Platform 8x4 Bucket Bridge Inspection Truck With 21.7m Max. Under Bridge Depth
  • 18m Platform 8x4 Bucket Bridge Inspection Truck With 21.7m Max. Under Bridge Depth
18m Platform 8x4 Bucket Bridge Inspection Truck With 21.7m Max. Under Bridge Depth
Product Details:
Place of Origin: CHINA
Brand Name: HZ
Certification: ISO/CC
Model Number: HZZ5311JQJDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 units/month
Contact Now
Detailed Product Description
Model Number:: HZZ5311JQJDF Dimension(Lx W XH)(unloaded): 12150 X 2500 X 4000
Total Weight:: 31ton Max. Under Bridge Depth :: 21.7m
Max. Crossing Of Sound Barrier :: 4.3m Type:: 18m Platform
High Light:

aircraft refueler trucks

,

truck mounted concrete pump

18m Platform 8x4 Bucket Bridge Inspection Truck With 21.7m Max. Under Bridge Depth



Specifications:



Product Name

Bucket Bridge Inspection Truck 18m bridge inspection truck

Model

HZZ5311JQJDF

Outline Dimension

12150(L)×2500(W)×4000 (H)mm

Total Weight

31ton

Chassis Brand

Dongfeng

Type

18m Platform

Wheel Formula

8x4

Axles

4

Gear Box

Manual

Emission Standard

Euro 5

Max. Over-bridging of Sidewalk

5.2m

Max. Crossing of Sound Barrier

4.3m

Max. Under Bridge Depth

21.7m

Occupy Lane Width when Working

3.5m

Ambling Speed

15m/min

Payment

Western Union,T/T,L/C at sight,e-checking

Usage

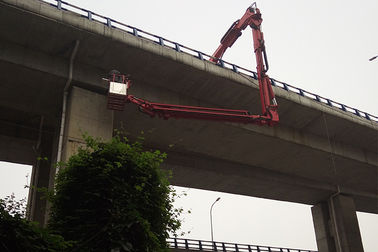

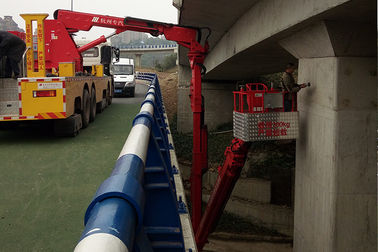

Widely used in periodic inspection on all parts of the bridges, which are not easily accessible. These inspections are primarily visual and require hands-on observations in order to check for loose and broken hardware, corrosion, insect damage, and a multitude of other maintenance and safety issues.In addition, there are a variety of operational uses, such as wiring laying, landscape laying,

Delivery Time

Around 3 months after the deposit receipt.

If urgent order, everything can be negotiable.



Package

Nude package, key parts wrapped with plastic films;



Description:



We provide all kinds of special purpose vehicle, such as construction vehicle, tank truck, van semi-trailer, and etc. Our Operating Vehicle For Bridge Detection are widely used in all kinds of situation. Our Operating Vehicle For Bridge Detection can make your work much smoother and safer. We have professional design team with more than 20years' experience of special purpose vehicle. We have all kinds of special purpose vehicle fit all work situation for you. Also we accept custom design for our customers.



Packing:



The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.The main machine nude, attached parts and tools put into standard export box.Within 20 days deliver .


Our factory:



Our factory cooperates with famous chassis manufacturers, such as SINOTRUK, FAW and etc. Our main business include producing special trucks and sell chassis, trucks and truck's spare parts. Our company has independent export potence, and has a mounts of clients overseas. Our leading productions include more than 300 types of trucks such as water truck, Fecal suction truck, Sewage suction truck, Garbage truck, Road sweeper, Fuel tank truck, High-altitude operation truck, Truck with Crane, Dump truck, Trainer truck, Semi-Trailer, fire fighting truck, van truck, Prime mover, chemical liquid truck, bulk cement truck, concrete mixer truck ,wrecker truck ,Pressure vessel, etc .Our company has solid technology ,flawless inspection, advanced equipments, reliant quality and flexible modes of operation .What's more, it has roundly passed the certification of ISO 9001-2008,the 3C(China Compulsory Certification)and other certifications that export needed.
We promise that all the products sold by us can get "three guarantees" for one year and enjoy maintenance and free technolog service for life. After service can be dealt within 48 hours.A quality control team with more than 20 years' experience has been set up in Hangzhou Special Automobile. All the members in this team have more than 20 years' experience in the quality control of special purpose vehicle. Each step in the manufacturing process has been strictly monitored to guarantee the products' high quality. No matter what are your interested items, they will be in the same outstanding quality. Operating







18m Platform 8x4 Bucket Bridge Inspection Truck With 21.7m Max. Under Bridge Depth 018m Platform 8x4 Bucket Bridge Inspection Truck With 21.7m Max. Under Bridge Depth 1
