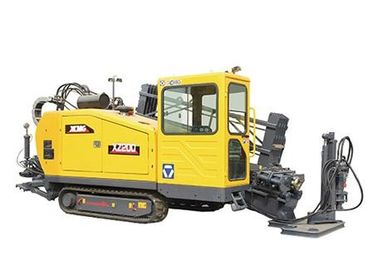

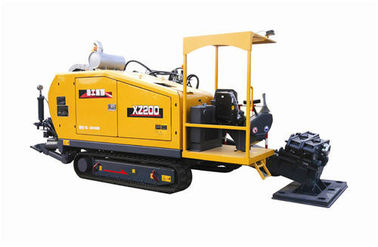

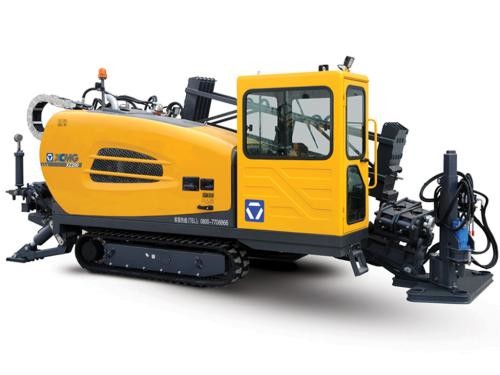

XCMG 225KN HDD XZ200 Horizontal Directional Drill Machine 8.5 Tons 113kw Engine
XZ Horizontal Directional Drills are mainly used in the trenchless piping construction and replacement of the underground pipe. The XZ Horizontal Directional Drills have the advantages of advanced performance, high efficiency and comfortable operation. Many key components adopt international famous products to guarantee the quality. They are the ideal machines for the construction of the water piping, gas piping, electricity, telecommunication, heating system, crude oil industry.
1,Closed circuits and hydraulic system with load sensing control.
2,Gear rack thrust/pull design insures operation. Floating carriage can protect the screw thread of the rods.
3,Main components of hydraulic system, electrical system and transmission system are of top-grade domestic and international brand, and high reliability.
4,Reinforcement carriage can be chosen and assembled to enhance pulling back force to meet special requirements.
5,Ergonomics theory is adopted in cab designing, more comfortable and convenient.
6,Drive-by-wire walking design is to ensure security.
7,Can meet the container freight transport(without full-automatic pipeloader).
| Description | Unit | Parameter value |
| Engine | Manufacturers | | Dongfeng Cummins |
| China III | Model | | QSB5.9-C150 |
| Rated Power | kW /(r/min) | 113 / 2200 |
| China II | Model | | 6BTAA5.9-C150 |
| Rated Power | kW /(r/min) | 112/ 2200 |
| China III | Model | | QSB4.5-C160 |
| EU Stage IIIA | Rated Power | kW /(r/min) | 119/2200 |
| Thrust-Pull | Type | | Pinion and rack drive |
| Max thrust-pull force | kN | 225/225 |
| Max thrust-pull speed | m/min | 26 |
| Rotation | Type | | two motor |
| Torque | N·m | 6350 |
| Max spindle speed | r/min | 160 |
| Loader Crance | / | / |
| Max inclination angle | ° | 22 |
| Pipe | Diameter × Length | mm×mm | Φ60×3000 |
| Mud pump | Max Flow rate | L/min | 250 |
| Max pressure | MPa | 8 |
| Weight | kg | 8500 |
