3kw 12m GTJZ1012 Electric Auto Scissor Lift / Aerial Work Platform

3kw 12m GTJZ1012 Electric Auto Scissor Lift / Aerial Work Platform

  • 3kw 12m GTJZ1012 Electric Auto Scissor Lift  / Aerial Work Platform
  • 3kw 12m GTJZ1012 Electric Auto Scissor Lift  / Aerial Work Platform
  • 3kw 12m GTJZ1012 Electric Auto Scissor Lift  / Aerial Work Platform
  • 3kw 12m GTJZ1012 Electric Auto Scissor Lift  / Aerial Work Platform
3kw 12m GTJZ1012 Electric Auto Scissor Lift  / Aerial Work Platform
Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE/ISO9001/CO
Model Number: GTJZ1012
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 Unit/Units per month
Contact Now
Detailed Product Description
Power: 3kw Lift Mechanism: Scissor Lift
Table Size: 2276*1120*1254mm Total Weight(kd): 2940
Platform Extension Length(mm): 900 Maximum Grade Ability(%): 25
Min. Lifting Height: 0.5m Overall Dimensions: 2485*1170*1908mm
High Light:

truck mounted access platforms

,

platform lift truck

XCMG 12m GTJZ1012 Electric Mobile Auto Scissor Lift Aerial Work Platform



Product Description



The scissors aerial work platform which is the newly developed series by XCMG can provide customers with a variety of personalization options. The compact structure can be applied flexibly in a narrow space; with the new electric drive system, the driving is more smooth, without emissions more environmentally friendly; industry-leading automatic pothole protection system, safe and reliable; more extensible platform workspace. Shear can be used in the truck series construction and maintenance of commercial buildings, warehouses, airports and other areas.

Product Highlights:

(1) Convenient transportation and stable operation
Scalable assistant expansion platform has bigger operation space and foldable rail makes transportation displacement more convenient. Industry-leading automatic hole protection system and tread widening design achieve that you can operate freely even at uneven ground.

(2) Environmental construction and convenient service
Pure electric drive, zero release, low noise and more environmental construction. Overall swing-type tray is convenient for service and maintenance.

(3) General and modular design
A set of booms are added, achieving rapid vehicle model extension, ensuring general design of parts and components and realizing more convenient customer repair and maintenance.



Specification



Itmm

Parameter

Overall Length(mm)

2485

Overall Width(mm)

1170

Overall Height(Guardrail folding)(mm)

2472(1908)

Wheel Base(mm)

1877

Maximum Working Heigh(m)

12

Maximum Platform Height(m)

10

Maximum Load Capacity(kg)

320

Extension Platform Load(kg)

115

Platform Size(mm)

2276*1120

Platform Extension Length(mm)

900

Lifting Speed of Working Platform(s)

56

Falling Speed of Working Platform(s)

43

Total Weight(kg)

2940

Travel Speed(High Speed)(km/h)

3.5

Travel Speed(low Speed)(km/h)

0.8

Max.Travel Platform Height(m)

10

Minimum Turning Radius(m)

0

Minimum Ground Clearance(mm)

100/20

Maximum Grade Ability(%)

25

Tire Specification

381*127

Battery(V/(Ah))

4*6(240)

Charger(A)

30

Warning Angle of Inclination (°)

1.5

3

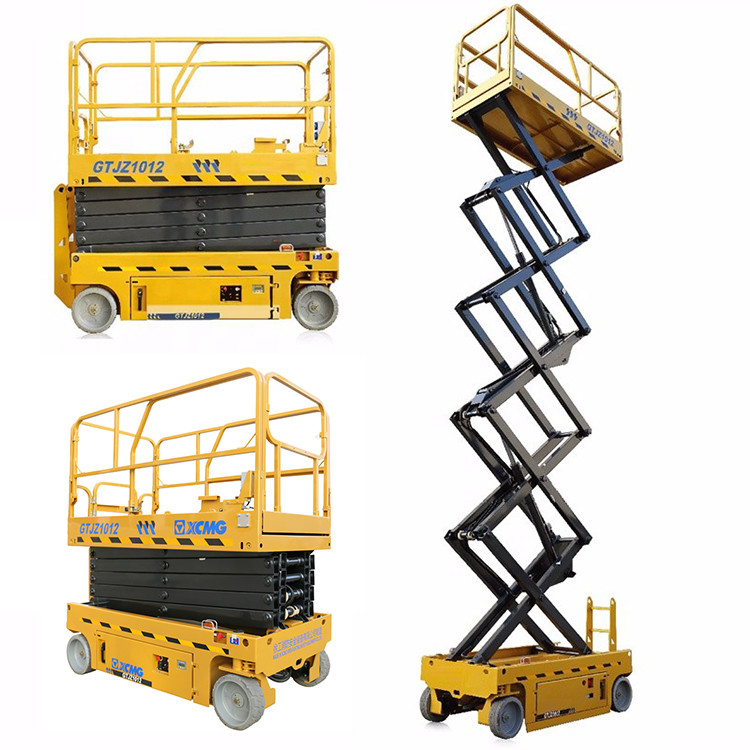

Product Show



3kw 12m GTJZ1012 Electric Auto Scissor Lift  / Aerial Work Platform 03kw 12m GTJZ1012 Electric Auto Scissor Lift  / Aerial Work Platform 13kw 12m GTJZ1012 Electric Auto Scissor Lift  / Aerial Work Platform 2
