8X4 371HP 28CBM Diesel Fuel Tanker Truck Heavy Duty ZZ1317N4667W

8X4 371HP 28CBM Diesel Fuel Tanker Truck Heavy Duty ZZ1317N4667W

    • 8X4 371HP 28CBM Diesel Fuel Tanker Truck Heavy Duty ZZ1317N4667W
    • 8X4 371HP 28CBM Diesel Fuel Tanker Truck Heavy Duty ZZ1317N4667W
    • 8X4 371HP 28CBM Diesel Fuel Tanker Truck Heavy Duty ZZ1317N4667W
    • 8X4 371HP 28CBM Diesel Fuel Tanker Truck Heavy Duty ZZ1317N4667W
  • 8X4 371HP 28CBM Diesel Fuel Tanker Truck Heavy Duty ZZ1317N4667W

    Product Details:

    Place of Origin: China
    Brand Name: HOWO
    Certification: ISO/CCC
    Model Number: ZZ1317N4667W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiation
    Packaging Details: Nude
    Delivery Time: 35-40 work days
    Payment Terms: L/C, T/T
    Supply Ability: 300 Unit/Units per Month
    Contact Now
    Detailed Product Description
    Transmission Type: Manual Storage: Fuel
    Fuel Type: Diesel Gross Vehicle Weight: 50000
    Tanker Capacity: 28000L Engine Capacity: 9726CC
    Horsepower: 371HP Drive Wheel: 8X4
    High Light:

    fuel tanker trucks

    ,

    oil tanker truck

    SINOTRUK HOWO 8X4 371HP 28CBM FUEL TANKER TRUCK MODEL ZZ1317N4667W

    Product Description



    HOWO truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets, it is researched and developed by sinotruk in line with international technical standards, sinotruk own its independent brand and independent intellectual property right, it is a new generation high end, advanced and matured heavy duty truck.



    Oil tanker truck is also called Fuel Tanker Truck, petrol delivery truck, diesel hauling trucks, crude oil transport trucks, oil tank trailer, fuel tanker semi trailers, mobile oil tank trucks, etc., is used to transport or refuel oil, petrol, diesel, lubricant, crude oil and some chemical liquid, etc.



    1. Oil tanker trucks mainly include truck chassis, oil tanker, piping system, manhole, vapor recovery system, manifold system, API valve, emergency valve, etc.
    2. Tank materials: Optional for carbon steel, stainless steel and aluminum alloy material. With multiple baffle plates in the tank, it has the advantages of high intensity, stability, transporting safety etc.
    3.Tank shape: Optional for round square, oval, and round;
    4. According to users' needs, the tank can be designed as single compartment or several compartments to contain different kinds of oil or chemicals.
    5. Oil pump: Users can choose centrifugal pumps, gear pump, copper gear pump, or stainless steel pump according to actual needs. It has advantage of big flow, high suction pressure and speed.


    Product Parameter



    Model ZZ1317N4667W
    Cabin HW79 High Roof Cabin, with two seats and two beds, with Air Conditioner and electric window. Option: HW76 with one bed



    Engine

    Model WD615.47
    Horse Power (Hp/rpm) 371/2200, Euro II Emission Standard
    Max.Toruqe(Nm/rpm) 1460/1100-1600
    Displacement L

    9.726



    Type 6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke direct injection diesel engine
    Transmission HW19710, 10 speeds forward and 2 speeds reverse.
    Front Axle HF9, Steering with double T-cross section beam, Loading Capacity: 2X9,000kgs
    Driving Axle HC16, Pressed axle housing, central reduction with hub reduction, with differential locks between wheels and axles. ratio: 4.8. Option: 4.42
    Suspension Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer
    Steering System ZF8118, Hydraulic steering with power assistance
    Brake System Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake
    Tire 12.00R20
    Fuel Tank Capacity (L) 400L Diesel Tank
    Kurb Weight (kg) 14,500
    Loading Capacity (kg) 35,500
    Gross Vehicle Weight (kg) 50,000
    Overall Dimension(L*W*H)(mm) 11984×2500×3785
    Tank Capacity(m3) 28
    Tank Material Carbon Steel
    Nos of Compartment Customized design from 1 to 6
    Wheelbase(mm) 1800+4600+1350
    Max. Speed (km/h) 75

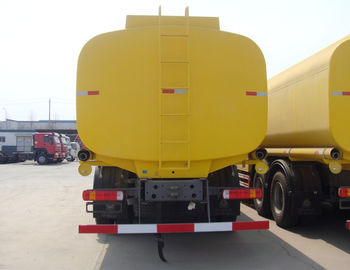

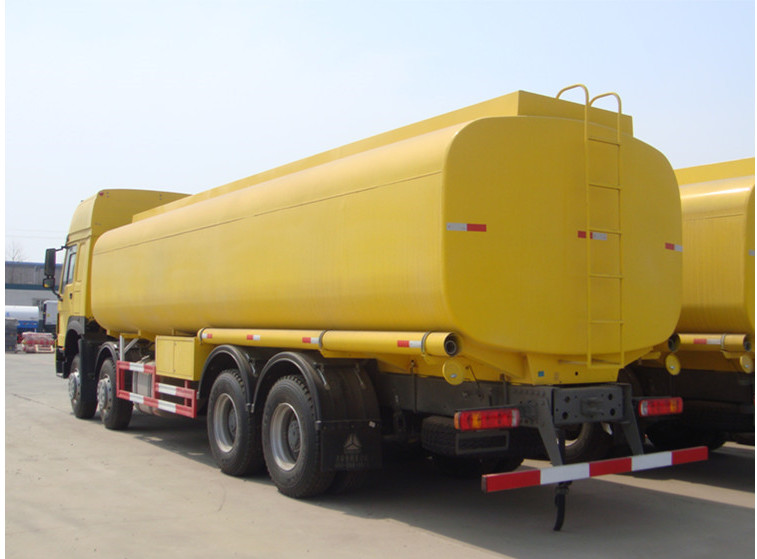

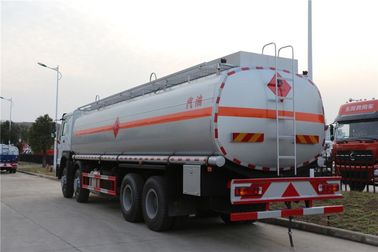

    Product Picture



    8X4 371HP 28CBM Diesel Fuel Tanker Truck Heavy Duty ZZ1317N4667W 08X4 371HP 28CBM Diesel Fuel Tanker Truck Heavy Duty ZZ1317N4667W 18X4 371HP 28CBM Diesel Fuel Tanker Truck Heavy Duty ZZ1317N4667W 28X4 371HP 28CBM Diesel Fuel Tanker Truck Heavy Duty ZZ1317N4667W 3
