| Place of Origin: | China |
| Brand Name: | HOWO |
| Certification: | ISO CE |
| Model Number: | HOWO |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Unit/Units per Month |
| Charging Capacity: | 12cbm | Mixing Power: | 0-14r/min |
|---|---|---|---|
| Outline Dimension: | 9130*2550*3800 Mm | Motor Power: | 250kw |
| Water Supply Mode: | PRESSING TYPE | Capacity: | 8-12 M3/h |
| Speed Of Mixing Drum: | 350kw | Working Cycle Period: | 4.5min |
| High Light: | truck mounted concrete pump,mobile cement mixer trucks |
||
Euro 2 HOWO 371hp 8X4 Manual Control 16 Cubic Meters 12tons Concrete Mixer Truck
Product Description
A concrete mixer is also called cement mixer, car river, concrete mixing plant, etc. It is a device that homogeneously combines cement, aggregate such as sand or gravel, and water to form concrete. A typical concrete mixer uses a revolving drum to mix the components.
It is suitable for urban construction, highway, railway and other departments. Mixer truck is a perfect, modern, and no pollution conveying equipment for mixed concrete, is one of indispensable information equipment of the mechanized construction.
Loading and discharge is speedily, discharge residual rate is low, hydraulic system is reliable, easy to operation adn look like beautiful.
1. Chinese famous heavy duty chassis brand in China---Sinotruk
2. Low oil consumption with strong horse power 371hp
3. LHD or RHD are optional
4. Volume of mixer drum: 3cbm-14cbm
5. One year for three key parts (engine ,gear-box, axle)
Product Parameter
| Vehicle main Dimensions | Overall dimensions (L×W×H)mm | 9824×2496×3350 | ||
| Wheel base (mm) | 3225×1350 | |||
| Wheel track (front/rear) (mm) | 2041/1850 | |||
| Approach/Departure angle(°) | 16/32 | |||
| Weight in KGS | Tare Weight | 12800 | ||
| Loading Capacity | 12070 | |||
| Front axles loading capacity | 7000 | |||
| Rear axles loading capacity | 2×9000 | |||
| Max. driving speed (km/h) | 90 | |||
| Engine | Brand | SINOTRUK | ||
| Type | 4-stroke direct injection,6-cylinder in-line with water cooking, turbo-charging and inter-cooking | |||
| Horse Power (HP)/(KPM) | 371HP | |||
| Emission standard | Euro Ⅱ | |||
| Gearbox | FULLER9, 9 forward 1 reverse | |||
| Clutch | Reinforced diaphragm clutch, diameter 420mm | |||
| Steering Gear | ZF power steering, model ZF8098, hydraulic steering with power assistance | |||
| Fuel tank (L) | 300 | |||
| Tire | 12R22.5 | |||
| Mixer Body | ||||
| Volume | M³ | 12M³ | ||
| Body Thickness | mm | High tensile strength steel | 6mm | |
| Hydraulics | Gear box | German made imported | ||
| Motor | German made imported | |||
| Pump | German made imported | |||
Our Service
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
After-sale service:
1. Lifetime free maintenance and upgrade. Spare parts could be supplied by cost price.
2. Free technician training, engineer abroad for customer service.
3. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
4. Special service for big project, such as stadium, exhibitions, squares and so on.

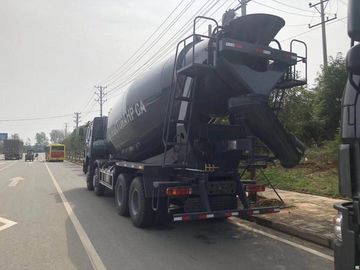

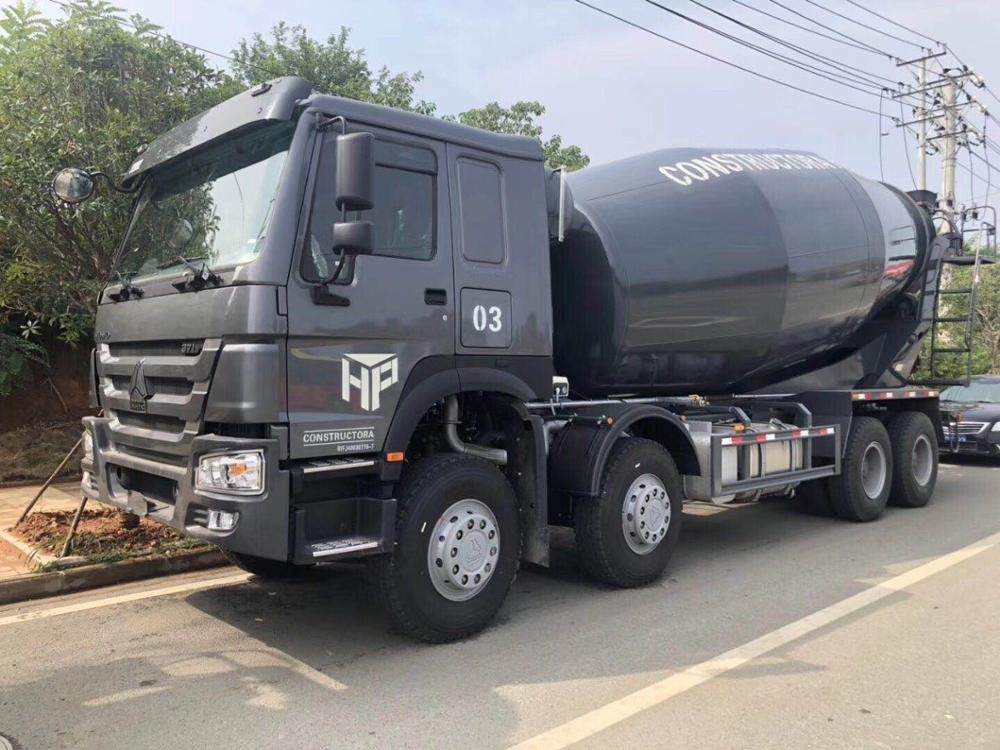

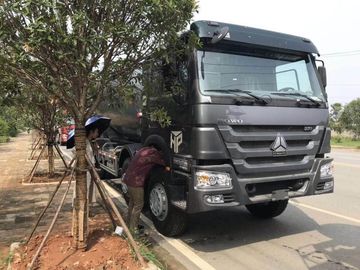

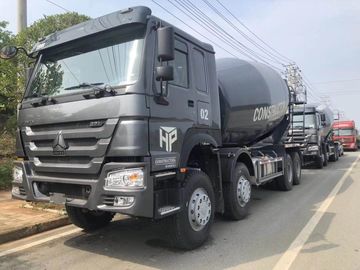

Product Picture
