Howo A7 8x4 28.29CBM Heavy Duty Dump Truck With HW19710 Transmission

Howo A7 8x4 28.29CBM Heavy Duty Dump Truck With HW19710 Transmission

    • Howo A7 8x4 28.29CBM Heavy Duty Dump Truck With HW19710 Transmission
    • Howo A7 8x4 28.29CBM Heavy Duty Dump Truck With HW19710 Transmission
    • Howo A7 8x4 28.29CBM Heavy Duty Dump Truck With HW19710 Transmission
    • Howo A7 8x4 28.29CBM Heavy Duty Dump Truck With HW19710 Transmission
  • Howo A7 8x4 28.29CBM Heavy Duty Dump Truck With HW19710 Transmission

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOWO
    Certification: ISO/CCC
    Model Number: ZZ3317N

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiation
    Packaging Details: Nude
    Delivery Time: 30-45 work days
    Payment Terms: L/C, T/T
    Supply Ability: 1000 Unit/Units per Month
    Contact Now
    Detailed Product Description
    Drive Wheel: 8x4 Gross Vehicle Weight: 31000
    Engine: WD615.47 Color: Optional
    Condition: New Steering: ZF 8198
    High Light:

    heavy duty tipper trucks

    ,

    construction dump truck

    HOWO A7 8x4 371hp 28.29CBM Heavy Duty Dump Truck With HW19710 Transmission



    Product description



    1. Chinese famous heavy duty chassis brand in China---Sinotruk

    2. Low oil consumption with strong horse power 371hp
    3. Large load capacity 40-45ton.

    4. Cabin: HW70 with no sleeper bed; HW76 with one sleeper bed. HW79 with two sleeper beds. With air conditioner.
    5. LHD or RHD are optional
    6. Tipper body: Size could be customized as requirement.
    7. One year for three key parts (engine ,gear-box, axle)





    Description:



    HOWO brand Truck is produced by SINOTRUK.Adopt WD615 series of 6-cylinder in line, 4-stroke, water cooled, turbo-charged inter-cooled,direct injection engine.Have good power economy.

    And the brake system have huge advantages.Service brake:dual circuit compressed air brake
    Parking brake (emergency brake):spring energy,compressed air operating on rear wheels

    Auxiliary brake:engine exhaust valve brake., and it can achieve continuously variable transmission.Rich experience and well after-sale service.

    (1) The overseas engineers are always ready to deal with unexpected needs.
    (2) More than 40 years' experience as a manufacturer, more than 12 years exporting experience.
    (3) Products Quality Certification SGS CCC ISO
    (4) Export to more than 30 countries and regions
    (5) Regularly callback to know the vehicle's working status.



    Product parameter



    Item No.

    Parameters

    Overall Dimension

    11245x2496x3600 mm

    Gross Vehicle Weight

    31000 kg

    Curb weight

    14860 kg

    Loading capacity

    45000 kg

    Front axle loading capacity

    HF9, 2x9000 kg

    Rear axle loading capacity

    HC16, 2x16000 kg

    Max Driving Speed

    75 km/h

    Engine

    WD615.47, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

    Engine horsepower

    371hp

    Emission Standard

    Euro II

    Displacement

    9.726L

    Gear Box

    HW19710, 10 Forwards gear & 2 reverse gear

    Steering Gear

    ZF 8198, power steering, hydraulic steering with power assistance

    Clutch

    Reinforced diaphragm clutch, diameter 430mm

    Fuel Tank

    400L Aluminum alloy fuel tank

    Cabin

    HOWO 76 Standard Cab, LHD Two seats with 1 sleeper, with air conditioner, 70° hydraulically tillable to the front.

    Tire

    12R22.5 Tubeless Tire , 12 pieces with one spare

    Brake

    Service brake: dual circuit compressed air brake

    Parking brake: spring energy, compressed air operating on rear wheels

    Auxiliary brake: engine exhaust valve brake

    Dump Body Size

    Size: 8200x 2300 x 1700mm, 32m3.

    Q345/B High Tension Steel Dump Body,

    Steel Thickness: bottom 8mm, side & front 6mm,

    Tipping hydraulics

    Front tipping, Complete set of HYVA Brand Hydraulics System



    Advantage


    1. Oil Saving--two kinds of technology route (electric control common rail and EGR), engine characteristic performance curve Improvement, entire car optimizing assembly, empty / full load switch, the latest streamline driving cab reducing wind resistance effectively, reducing self weight by 200--500kg, and etc.
    2. Safety--drum brake, tubeless tire, exhaust valve brake technique application, rear axle brake shoe widening, and etc.
    3. Driving comfort-- New style air bag seat, four point floating suspension with anti-roll bar, damping device for the cab, double locking seat belt, outside sun shade, drum brake solving brake sway in case of over load, and etc
    4. Reliability--all the assembly has passed extremely harsh condition experiments and the verification of over 2 years in bad use condition.
    5. Low application cost--large use quantity, complete service and accessory networks and low price.



    Packing:



    Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.The main machine nude, attached parts and tools put into standard export box.Within 20 days deliver the goods to main Port.Ro-Ro ship or bulk ship or according to customer requiring.
    We have professional forwarding partners.


    Competitive Advantage:

    1. It is suitable for in normal roads and tough roads, to transport and unload transport, stone, ore, and others loose materials.
    2. Warranty: one year
    3. Excellent and high-quality control
    4. Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.
    5. Rich experience and well after-sale service.
    6. Long lasting working life time.
    7. Shippping: we have logistic team, can cargo your truck fast and safety.

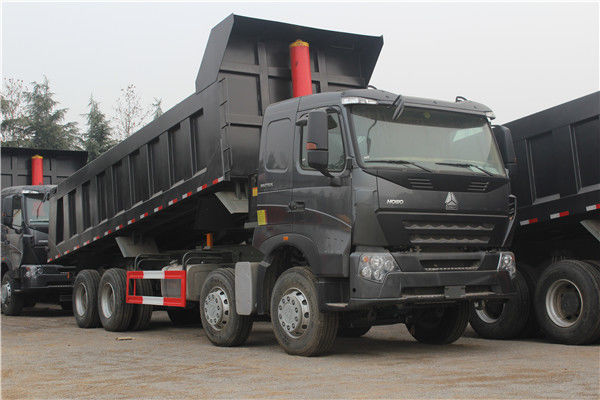

    Product picture



    Howo A7 8x4 28.29CBM Heavy Duty Dump Truck With HW19710 Transmission 0Howo A7 8x4 28.29CBM Heavy Duty Dump Truck With HW19710 Transmission 1
