| Place of Origin: | JINAN SHANDONG |
| Brand Name: | HOWO |
| Certification: | ISO9001 |
| Model Number: | ZZ3317N3567A |
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 UNITS/Mouth |
| Rated Loader Mass (kg): | 16000kg | Min. Turning Circle (m): | 19 |
|---|---|---|---|
| Appearance Dimensions (mm): | 9086x2496x3025 | Dimensions Of Lorry Body (L×W×H)mm,Front Lifting: | 7600×2300×1500 Front Lift φ180 |
| Steering: | ZF8118 Technology Left Hand Drive | Cab: | HW76(one Sleeper,with Air Conditioner) |
| Highlight: | sand dump truck,construction dump truck |
||

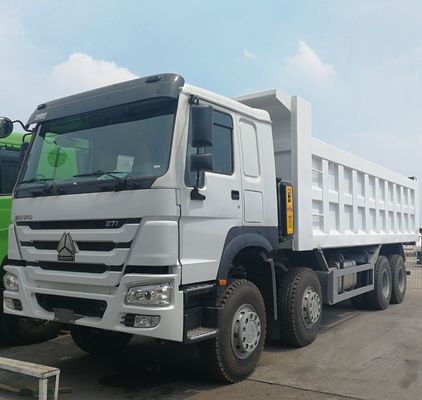

Optional color Euro 2 8x4 Dump Truck with ZF8118 technology left hand drive
Description:
HOWO 8x4 Dump Truck is produced by SINOTRUK.It is suitable for in normal roads and tough roads, to transport and unload transport, stone, ore, and others loose materials.Adopt HW76 Cab single bunk,new type seat,adjustable steering wheel.EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.Adopting full hydraulic transmission, it can bring the power of engine into full play amply.Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.Rich experience and well after-sale service.
Packing:
Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.Rich experience and well after-sale service.
Our advantages:
1. High quality has always been our advantage.We have perfect transportation methods, which can greatly save your transportation cost.Our semi trailers can transport .
2. Specialization ,standard and accurate meet your requirement.
3. The best quality standard guaranteed
4. Product upgrading and expansion of species
5. Good quality with competitive prices.
6. Flexible and convenient logistic service.
7. Excellent and high-quality control
8. Long lasting working life time.
| Model | ZZ3317N3567A | |
| Rated loader mass (kg) | 16000kg | |
| Kerb mass (kg) | 15000kg | |
| Gross vehicles mass (kg) | 31000kg | |
| Max. speed (km/h) | 80 | |
| Min. turning circle (m) | 19 | |
| Min. ground clearance (mm) | 314 | |
| Max.grade ability(%) | 30 | |
| Appearance dimensions (mm) | Length | 9086 |
| Width | 2496 | |
| Height | 3025 | |
| Wheelbase | 1800+3800+1350mm | |
| Engine | WD615.47 Erou2 | |
| Rated output power | 279kW/ 371hp | |
| Torque N.m r. p. m | 1250N.m / 1400-1600rpm | |
| Clutch | 430 diaphragm type | |
| Gearbox | Transmission | HW19710,10 forward 2 reward |
| Steering | ZF8118 technology left hand drive | |
| Cab | HW76(one sleeper,with air conditioner) | |
| Front axle | HF9 | |
| Drive axle | HC16(radio5.73) | |
| Tire: | 12.00R20 | |
|
Dimensions of lorry body (L×W×H)mm,Front lifting |
7600×2300×1500 front lift φ180 | |
| Fuel tank capacity (L) | 400 L (steel) | |
| Electrics |
Operating voltage:24V,negative grounded 24V,7.5KW.Starter:24V,7.5 Kw 28V,1500W.Alternator:3-phase,28V,1500 W 2x12V,165Ah.Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light |
|
