| Place of Origin: | JINAN CITY OF CHINA |
| Brand Name: | HOWO |
| Certification: | ISO9001 |
| Model Number: | ZZ1317N4667W |
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 units/month |
| Model: | ZZ1317N4667W | Tank Dimensions: | 9800×2500×1900mm |
|---|---|---|---|
| Clutch: | φ430 Diaphragm Clutch | Steering: | ZF8118, Hydraulic Steering With Power Assistance |
| Overall Dimensions: | 11700X2496X3025mm | Thickness: | 6mm |
| High Light: | fuel tanker trucks,oil tanker truck |
||

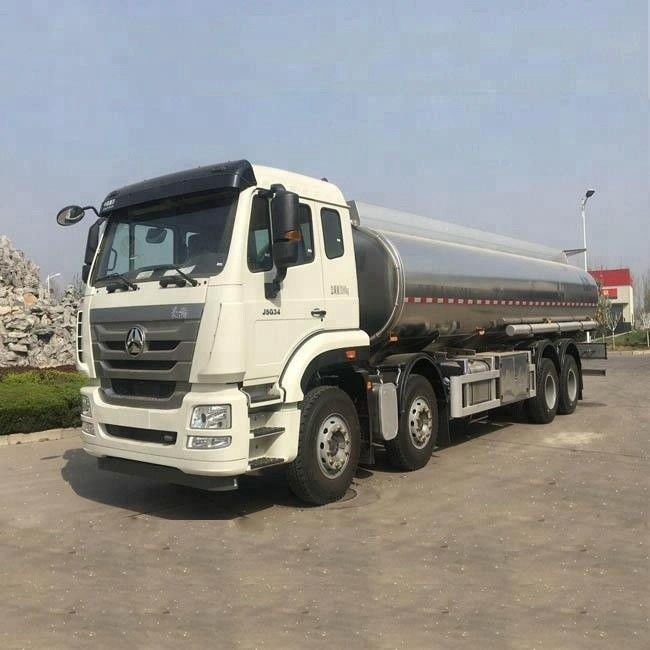

SINOTRUK HOWO 6x4 336hp 10 Wheeler Cooking oil tanker truck With 40000L volume
Description:
HOWO 8x4 cooking oil tanker truck now is good products in overseas market, the frame adopt U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members
Front suspension adopt 10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer.Rear suspension adopt 12 leaf semi-elliptic springs, bogie spring and stabilizer.Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.Professional Sales Team of trucks. Our target is not selling trucks; we help customers choose the best suitable trucks as per customer’s situation.
Packing:
Competitive Advantage:
1. Flexible and convenient logistic service.
2. Excellent and high-quality control
3. Rich experience and well after-sale service.
4. Long lasting working life time.
5. Rich experience and well after-sale service.
6. Long lasting working life time.
7. Shippping: we have logistic team, can cargo your truck fast and safety.
| Chassis model | ZZ1317N4667W |
| Overall dimensions | 11700X2496X3025mm |
| Front/rear wheel track | 2022/2041, 1830/1830mm |
| Approach/departure angle | 16/19° |
| Tank thickness | 6mm |
| Cab | HW76 a row and a half deluxe cab(with sleeping berth), allowable 3 passengers |
| Engine | WD615.69 |
| Euro 2 | |
| Type | 6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine |
| Rated power | 336hp, rated power speed 2200rpm |
| Displacement | 9726ml |
| Max.torque | 1350N.m |
| Bore x stroke | 126x130mm |
| Tire |
12.00R20 tubeless tire 12+1 nos |
| Clutch | φ430 diaphragm clutch |
| Fuel tank | 400L oil tank |
| Front axle | HF 7 tons |
| Rear axle | HC 16 tons |
| Drive form | 8X4 |
| Rated voltage | 24V, DC |
| Transmissions | HW15710 , 10 speed forward 2 reverse. |
| Steering device | Power assisted steering |
| Steering wheel | Left hand drive |
| Tank dimensions | 9800×2500×1900mm |
| Tank volume | 40000L |
| Tank thickness | 6mm |
