| Place of Origin: | CHINA |
| Brand Name: | HSM |
| Certification: | CE/ISO |
| Model Number: | PE200x300 Jaw Crusher |
| Minimum Order Quantity: | 1UNIT |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units/month |
| Capacity(t/h): | 2-8 | Weight: | 0.8t |
|---|---|---|---|
| Discharging Size: | 20-70mm | Max Feeding Size: | 165mm |
| Power: | 11kw | Color: | Optional |
| High Light: | anfo mixer equipment,mobile mixing unit |
||

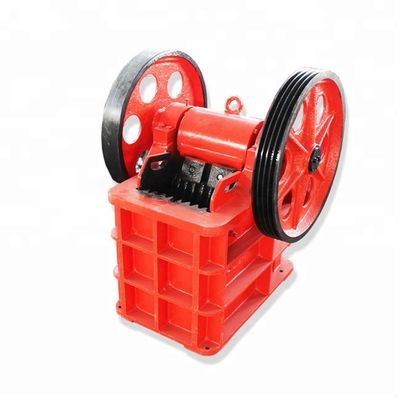

China Superior Mini Mining Equipment Crushing PE200x300 Jaw Crusher 2-8t/h
Description:
Small stone powder jaw crusher is widely applied to crush high hardness, mid hardness and soft rocks and ores such as ore, quartz, granite, limestone, slags, construction materials, marble, etc.
The maximum compression strength of materials to be crushed is 320MPA.
PE series is used for primary crushing, and PEX series is used for secondary crushing and fine crushing.
Jaw crusher is generally used as a primary crusher in a crushing circuit. Product is fed into the top of the jaw crusher by an vibrating grizzly feeder. The eccentric rotating drive shaft causes the movable jaw to oscillate crushing the aggregate against a fixed jaw. Jaw crushers are run on belt drives driven by diesel engine. Jaw crushers are used extensively throughout the aggregate and mineral processing industry.
Packing:
Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.
Competitive Advantage:
1. The crushing cavity is deep and no dead area, these structure improve the throughput.
2. The crushing ratio is big and the particle size is uniform.
3. The adjusting device of discharge adopts washer, this device is reliable, convenient ,and flexible to control the throughput.
4. The lubrication system is safe and reliable, easy to replace parts, low workload of maintenance.
5. Simple structure, reliable operation, low operation cost.
6. Saving energy.
7. The adjusting range of discharge gate is wide. These can meet the different requirements of users.
8. Low noise, less dust.
Technical Data:
|
model
|
feeding size(mm)
|
discharging size(mm)
|
capacity(t/h)
|
spindle speed
|
motor power(kw)
|
weight(t)
|
|
PE150×250
|
125
|
10-40
|
1-3
|
285
|
5.5-7.5
|
0.7
|
|
PE200×300
|
165
|
20-70
|
2-8
|
265
|
11
|
0.8
|
|
PE250×400
|
210
|
20-80
|
5-20
|
310
|
15-18.5
|
3
|
|
PE400×600
|
340
|
40-90
|
10-40
|
275
|
30
|
7.2
|
|
PE350×750
|
290
|
30-55
|
20-50
|
300
|
37
|
8.9
|
|
PE500×750
|
425
|
50-100
|
34-68
|
275
|
55
|
11.32
|
|
PE600×900
|
480
|
75-200
|
40-120
|
255
|
75
|
17.6
|
|
PE750×1060
|
630
|
80-200
|
80-160
|
250
|
90
|
30.53
|
|
PE900×1200
|
750
|
100-200
|
110-200
|
250
|
110
|
50
|
|
PE1000×1200
|
850
|
195-265
|
315-500
|
200
|
110
|
55
|
|
PE1200×1500
|
1020
|
150-300
|
400-800
|
180
|
160
|
100
|
|
PEX150×750
|
125
|
10-40
|
5-15
|
300
|
15
|
3.5
|
|
PEX250×1000
|
210
|
15-65
|
10-32
|
300
|
30
|
4.35
|
|
PEX250×1200
|
210
|
15-60
|
12-38
|
300
|
37
|
8.7
|
|
PEX300×1300
|
250
|
20-90
|
16-65
|
300
|
45-55
|
11.6
|
