| Place of Origin: | CHINA |
| Brand Name: | Huahong |
| Certification: | CE |
| Model Number: | LYH404 |
| Minimum Order Quantity: | 1UNIT |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 20-35 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units/month |
| Model: | LYH404 | Driving Type: | 4x4 (4-wheel Driving) |
|---|---|---|---|
| Dimension (mm): | 3513x1750x2130mm | Marked Power (KW): | 36.8kw |
| Wheelbase (mm): | 1924mm | Clutch: | 10 Inch Double Action |
| High Light: | agriculture farm equipment,mini farm tractor |
||

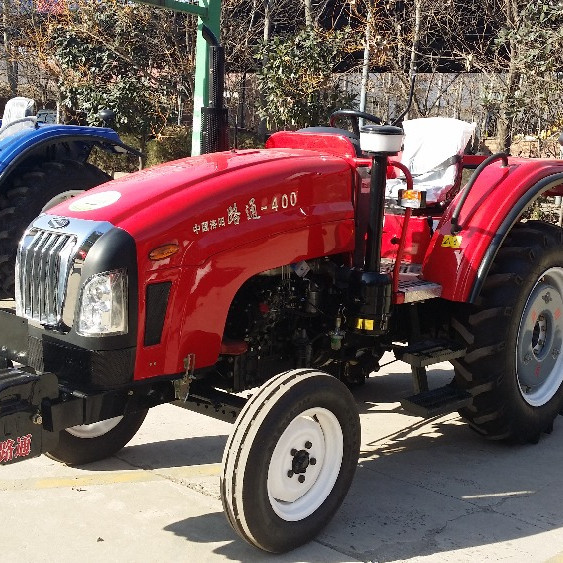

LYH404 4-wheel driving farm agricultural tractor machine with 36.8kw Marked power
Description:
1. The power by luoyang dongfanghong diesel engine, straight cold water, four-stroke engine, torque reserve;
2. Use 4 x (3 + 1) transmission (12 forward, four reverse), convenient operation, high work efficiency;
3. Double speed power output, speed is 540/1000 or 540/720, two sets of hydraulic output interface, can form a complete set of various agricultural machinery, adapt to many condition of operation;
4. Adopting full hydraulic steering, double-acting clutch, flexible operation of portable.shape.The man-5.Machine engineering optimization design of the whole vehicle can enhance the safety and comfort of the driver.
6. Optional single / dual hydraulic output, for a variety of farmland and transport work.
7. The power output speed can choose 540/1000 rpm, optional 540/540E rpm, supporting a variety of farm machinery, wide application range.
Packing:
Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.
Competitive Advantage:
1.Adjustable supporting slider, a protection of the ground
2. Flexible design, avoid snow blocking of outlet
3.Blow the snow to the green belt or roadside, or throw the snow onto truck
4.Ideal implements for clearing traffic lanes, sidewalks, yards etc
5.Sales manager cell number is 24hours available.
6.Payment terms is flexible.
7.Design the product according to your technical request.
Technical Data:
| Type | LYH404 | ||
| Model | 4x4 (4-wheel driving) | ||
| Dimension (mm) | Length (with front loading) | 3513 | |
| Width | 1750 | ||
| Height (to vent) | 2130 | ||
| Wheelbase (mm) | 1924 | ||
| Front-wheel tread (mm) | 1250 | ||
| Rear wheel tread (mm) | 1200~1500 (1300 in common use) | ||
| The smallest ground gap (mm) | 325 | ||
| Agriculture ground gap (mm) | 375 | ||
|
Turning radius (m) |
apply the brake with single side | 3.4 | |
| not apply the brake with single side | 4.1 | ||
| The whole tractor mass (kg) | structure mass | 1890 | |
| the smallest using mass | 2080 | ||
| Loading mass | front loading | 144 | |
| rear loading | 360 | ||
| Rated traction (KN) | 12 | ||
| Engine type | 498BT | ||
| Marked power (KW) | 36.8 | ||
| Clutch | 10 inch double action | ||
| Gear box | Shift combination style. Mesh cover shift | ||
| Speed range | 2.4-31.9 | ||
| Centre turn | Spire and taper sub-gear | ||
| Different speeder | Double planet wheels, close style | ||
| Different speed lock | Post and pin style | ||
| Final transmission | Planet gear style | ||
| Front driving bridge | Full closed prick gear style (for types with 4- wheel driving ) | ||
| Independent driving box | Column gear with straight teeth (for types with 4-wheel driving ) | ||
| Front wheel table specification | 8.3-20 | ||
| Rear wheel table specification | 12.4-28 | ||
| Redirector type | Mechanical or hydraulic turning | ||
| Arrester type | Arrester with double pieces of oil-bath tray (mechanical style) | ||
| Lifter type | Semi-separation | ||
| Control way to plough depth | Force, place control and floating control | ||
| Hanging device type | Three point hanging with postposition | ||
| Driving output axis turning speed (r/min) | 540/760 | ||
