Place of Origin: | China |
Brand Name: | LuTong |
Certification: | ISO |
Model Number: | LYH400 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | Negotiation |
Packaging Details: | Nude |
Delivery Time: | 30-45 work days |
Payment Terms: | L/C, T/T |
Supply Ability: | 500 units per month |
Condition: | New | Drive Type: | Gear Drive |
---|---|---|---|
Brand Name: | Lutong | Outlook Size: | 3513*1823*2130 Mm |
By Wheel: | 2WD | Engine: | 490BT |
Spread Of Axies: | 1880 Mm | Complete Machine Quality: | 1665 Kg |
High Light: | agriculture farm tractors,agriculture farm equipment |

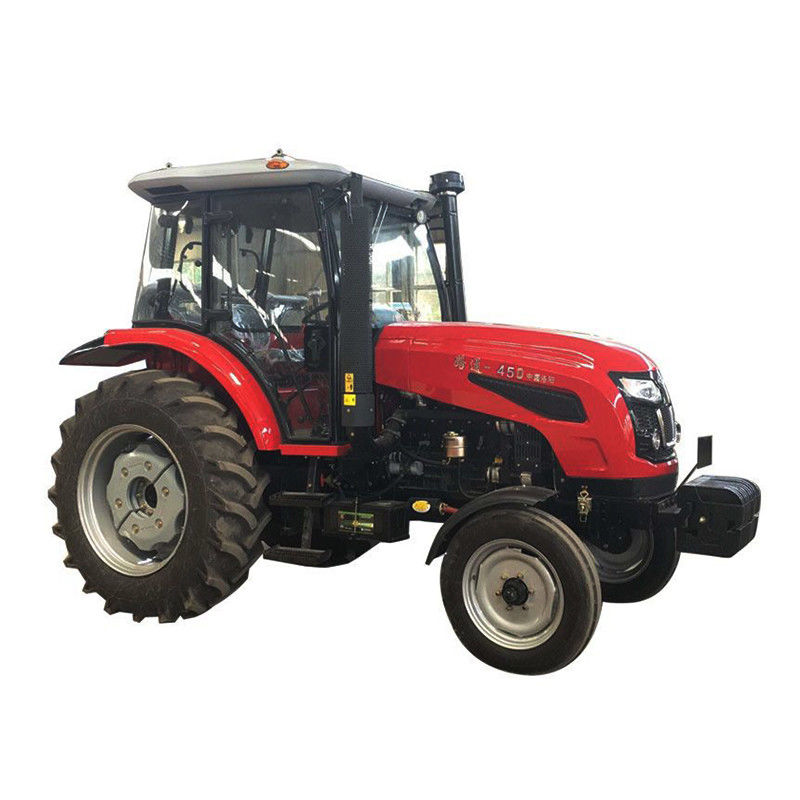

China Multi-purpose Farm Tractor LUTONG LYH400 4WD Optional Color
Features
That the LYH400/404 road sun makes 40 series wheeled tractors red- is that Luoyang Lutong agriculture equipment Ltd. acts on self's own grinding hair's having the horizontal in the homeland same kind model wheeled tractor in the lead. The main characteristic has: Adopt new Zhejiang firewood diesel , reliability well , has bigger moment of torsion reserve system; 10 inches of pair of effects clutch; The speed change box archives place is 4 X (2 + 1); Detached driving force of postposition exports a device , drive balances , bears the weight of a force big; The entire hydraulic pressure front wheel adopt the independent oil road gets lost , gets lost nimble , reliable , saves labour; The force moment adopt disk brake , braking is big , the braking is reliable.
Specification
Tractor model | LYH400 | LYH404 | |
Pattern | 4×2 (two turn actuation) | 4×4 (four-wheel drive) | |
Outlook size mm | Long (in front of belt counterweight) | 3513 | 3513 |
Width | 1823 | 1750 | |
High (to air vent) | 2130 | 2130 | |
Spread of axies (mm) | 1880 | 1924 | |
Front wheel tread (mm) | 1200-1500 (commonly used 1300) | 1250 | |
Rear wheel tread (mm) | 1200-1500 (commonly used 1300) | ||
Smallest gully (mm) | 400 | 325 | |
Agronomy gully (mm) | 450 | 375 | |
Changes radius (mm) | Unilateral brake | 3.1 | 3.4 |
Unilateral does not apply the brake | 3.5 | 4.1 | |
Complete machine quality (kg) Disposition quality (kg) |
Structure quality | 1665 | 1890 |
Smallest use quality | 1840 | 2080 | |
First disposes | 108 | 144 | |
Latter disposes | 360 | 360 | |
Fixed force of traction (KN) | 9 | 12 | |
Engine model | 490BT | ||
Demarcation power (KW) | 29.4 | ||
Coupling | 10 inch dry list function or double-acting | ||
Gear box | 4× (2 1) keeps off the composition type meshing wrap to shift gea | ||
Speed range | 2.4-31.9 | ||
Central rotation | Screw round bevel gear pair | ||
Differential device | Two planetary gears, closed type | ||
Differential lock | Plug type | ||
Final transmission | Planet gear type | ||
First driving axle | The entire seal bevel gear type (four-wheel drive type uses) | ||
Transfer case | The straight tooth cylindrical gears (four-wheel drive type uses) | ||
Front wheel tire specification | 6.0-16 8.3-20 | ||
Trailing wheel tire specification | 12.4-28 | ||
Diverter pattern | Mechanical or the entire hydraulic pressure changes | ||
Brake labor | Biplate oil bath plate brake (mechanical type) | ||
Hoist pattern | The half minute sets at the type | ||
Ploughs the deep control mode | Strength, position control and fluctuation control | ||
Suspension unit pattern | Postpositioned three point suspension | ||
Dynamic output speed of spindle (r/min) | 540/760 |
