| Place of Origin: | JINAN CITY OF CHINA |
| Brand Name: | SINOTRUK |
| Certification: | ISO9001/CC |
| Model Number: | ZZ5607S3841AJ |
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units/month |
| Wheelbase(mm): | 3800+1500 | Dimension(Lx W XH)(unloaded): | 8080x3000x3775 |
|---|---|---|---|
| Gross Vehicle Weight:: | 60000kg | Model Number:: | ZZ5607S3841AJ |
| Color:: | Customer's Request | Capacity (Load):: | 61 - 70t |
| High Light: | howo mining dump truck,sinotruk howo dump truck |
||

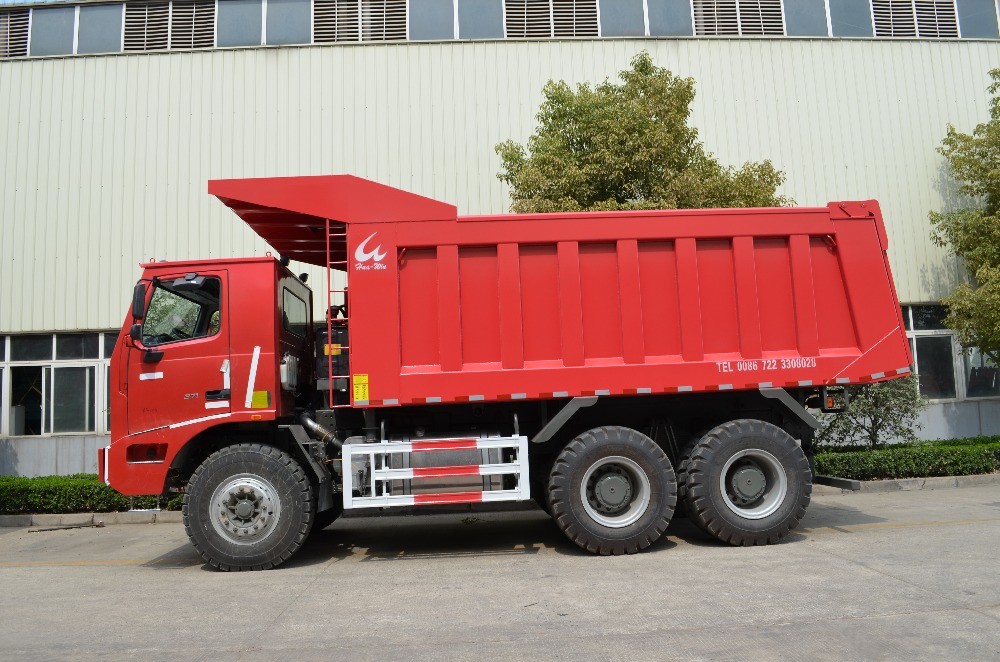

ZZ5607S3841AJ SINOTRUK HOWO Euro 2 6x4 70t mining dump truck with 60000kg gross weight
Description:
1. Q:How about the warranty?
A:One year
2. Q:Do you have ISO certificate ?
A:Yes , we have,pls contact us to get our certifications.
3. Q:How about the delivery time?
A: It depends on the style of truck ,normally around 30 working days
4. Q:How about shipping ?
A:Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container,small type can shipping by container ,Pls contact us to get a shipping quotation .
5. Q: How do you control the quality of product?
A:our workers are well trained. Our very product under goes a scrutinizing inspection process.
6. Q: How about your product After-sales service system?
A:Our main export country have accepted after-sales service,some of country used the third department service.
7. Q: Do you accept Custom orders? What’s is your MOQ order?
A:Yes, we do, our MOQ is 1 set.
8. Q: What’s the payment terms?
A:By T/T or L/C at sight ,Western Union,moneyGram
Packing:
Thick wax polished on products before shipping to protect.Use container, RORO/bulk ship or others as your requirement. We provide transportation insurance to guarantee the new and great condition of products for customer.
Competitive Advantage:
Experience
10 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.
Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.
Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.
Production supply capacity
Company scale
More than 3000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.
Specifications:
|
Size parameters |
Chassis dimensions(mm) |
Length | 7800 |
| Width | 3300 | ||
| Height(Empty loaded) | 3310 | ||
| Wheelbase(mm) | 3800+1500 | ||
| Track distance(mm) | Front wheel | 2741 | |
| Rear wheel | 2520 | ||
| Front suspension(mm) | 1500 | ||
| Rear suspension(mm) | 1000 | ||
| Minimum ground clearance(mm) | 340 | ||
| Approach angle(°) | 32 | ||
| Departure angle(°) | 40 | ||
|
Quality parameters |
Chassis kerb weight(kg) | 17300 | |
| Axle load quality distribution(kg) | Front axle | 7000 | |
| Rear axle | 10300 | ||
|
Performance parameters |
Maximum speed(km/h) | 56.7 | |
| Maximum grade(%) | 40.4 | ||
| Minimum turning diameter(m) | 20 | ||
| Fuel tank capacity(L) | 500 | ||
| Cab | Model | Unilateral cab | |
| Crew | 1 | ||
|
Engine |
Model | D12.42-30 | |
| Emission | Euro 2 | ||
| Total displacement | 11.596 | ||
| Rated power kW/(r/min) | 309/2000 | ||
| Maximum torque Nm/(r/min) | 1820/1100-1500 | ||
|
Clutch |
Model | Pull type diaphragm spring clutch,hydraulically control air assist | |
| Driven plate outside diameter | Φ430 | ||
|
Transmission |
Model | HW21712+HW70 | |
| Forward speed ratio | 15.01,11.67,9.03,7.14,5.57,4.38,3.43,2.67,2.06,1.63,1.27 | ||
| Reverse speed ratio | 13.81,3.16 | ||
|
Rear axle |
Model | AC26 double drive axle | |
| Total speed ratio | 8.51 | ||
| Differential lock | Inter-wheel differential lock,differential lock between shafts | ||
|
Wheel |
Wheel rim | 10.0/2-25 | |
| Tires | Model | 14.00-25 NHS | |
| Air pressure(kpa) | 1100±10(heavy load) | ||
|
Steering system |
Steering gear type | ZF8118 | |
| Steering gear ratio | 26.2~22.2 | ||
| Power cylinder model | φ 70 | ||
| Steering oil pump maximum pressure(kpa) | 20000 | ||
|
Braking System |
Rated work pressure | 850kpa | |
| Driving brake | Double loop pneumatic brake | ||
| Parking brake | Spring energy storage brake | ||
| Auxiliary brake | Engine exhaust brake | ||
| EVB | |||
|
Electrical system |
Line type | Single wire | |
| Line voltage(V) | 24 | ||
| Generator power(W) | 1800 | ||
| Battery | Voltage(V) | 2X12 | |
| Capacitance(Ah) | 180 | ||
