9 Ton Wheeler Crawler Amphibious Dredge Excavator With Japan Yanmar Engine
Product Details:
Place of Origin: CHINA
Brand Name: XINIU
Certification: CCC/ISO9001/CE
Model Number: X9
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: Package in Nude
Delivery Time: 20-25 work days
Payment Terms: L/C, TT
Supply Ability: 5000 UNITS/Month
Contact Now
Detailed Product Description
Operating weight: 8770kg Bucket capacity: 0.3m³
Engine: Yanmar 4TNV94L-BVBKC Max. digging radius: 6880mm
Max.digging depth: 3772mm Max.digging height: 7130mm
Max.dump height: 5220mm
High Light:

dirt moving equipment

,

crawler hydraulic excavator

X9 9Ton Wheeler Crawler amphibious Excavator Digger Mobile Spider



Brief Introduction:



X9 Wheel-crawler excavator is with national invention patent which is totally researched and developed by our company, the first design in the world. Convenient moving, fast travelling speed, quick transferring from wheels to track walking. The front tire axle can be quickly disassembled when required.



Feature:



Wheel-Crawler Excavator X9, with CE ISO certificates. New design, patent products, running on the wheel, working on the crawler, wheel and crawler is easy to change each other, one city transport, no need the truck again, very convenient, with good market now.

9ton, GERMANY REXROTH pump, USA EATON swing motor, traveling motor, South Korea SUNJIN valve/ Joystick, A/C cab for choose, Radio, USB, 0.32m3 bucket, Overall dimension: 6570x2120x2982 mm, Running on wheels, Working on track.



Products Advantage:



Yanmar Engine

-- Using imported engine, stable and durable, this engine features low noise, low vibration, and easy maintenances for main parts.

Strong power hydraulic system

-- Main pump, valve, swing motor and travel motor imported with reliable quality.

Control monitor

--Electronic monitoring using a dot matrix type advanced multifunctional large screen liquid crystal display, electronic throttle control system has the function of throttle control, automatic idle speed, overheat protection, speed acquisition.

Easy to maintain

--Large maintenance space, convenient for the periodic maintenance of various parts.

Delicate and beautiful appearance

--Streamlined design, smooth and beautiful appearance.



Products Specifications



Dimension
Total length
Boom 3.6m+Bucket arm 2m 6570
Total height
Boom 3.6m+Bucket arm 2m 2982
Counter weight turning radius 1836
Hood height 2104
Counterweight ground clearance 1120
Upper structure width 2000
Cab Height 2982
Total Tire Width 2120
wheels up wheel gague 270
Wheel Tread 3400
Distance of swing center to rare wheel 1682
wheels down wheel gague 3560
Distance of swing center to rare wheel(wheels down) 1767
Rare wheel ground clearance(wheel up) 300
Tracks ground clearance(wheel down) 330
Total height(wheel down) 3190
Track wheel track 2050
Track width 400
Track outer width 2160

Operating Range
working device 3.6m+Bucket arm 2m
Max. digging radius 6880
Max.digging radius on ground 6735
Max.digging depth 3772
Max.digging height 7130
Max.dump height 5220
Min.turning radius 2617
Max.vertical digging depth 3425
Bucket digging force 56
Bucket arm digging force 36

Specification   Unit
Operating weight   8770kg
Bucket capacity   0.3m³
Engine Model Yanmar 4TNV94L-BVBKC
Displacement 3.054L
Engine Power/rpm 33.7kW/2100rpm
Max.torque 193.2~210.6N.m/1260±100rpm
Speed Traveling Speed 25km/h
Track traveling speed 2.3km/h
Swing Speed 9rpm
Max.grade Ability 30°
Hydraulic and liquid capacity Hydraulic system Rexroth
Pump variable capacity pump
Pressure 25MPa
Displacement 132L/min
Capacity of hydraulic tank 175L
Capacity of fuel tank 150L
Engine oil capacity 12L

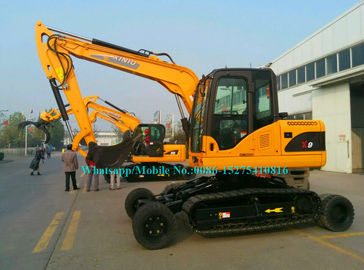

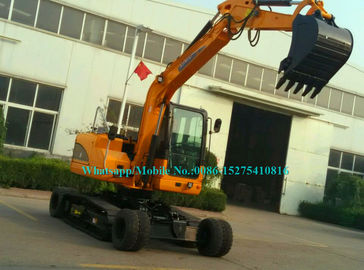

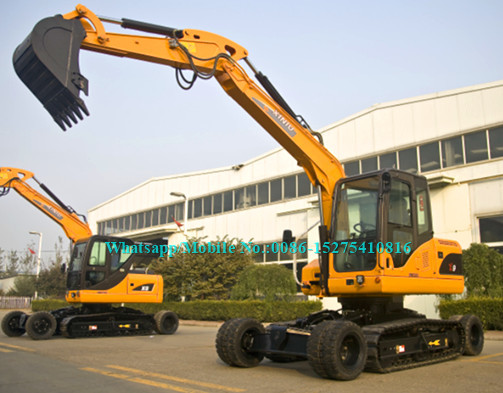

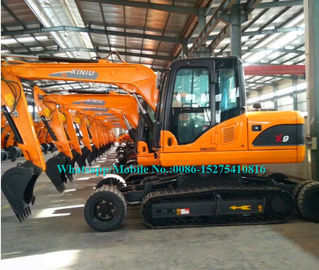

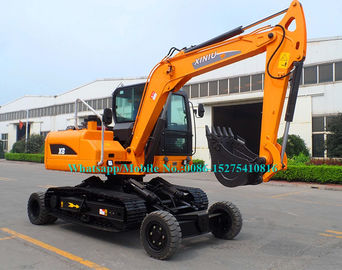

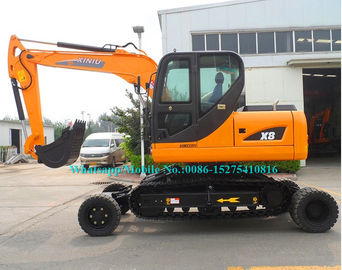

Products Photos:

9 Ton Wheeler Crawler Amphibious Dredge Excavator With Japan Yanmar Engine 09 Ton Wheeler Crawler Amphibious Dredge Excavator With Japan Yanmar Engine 19 Ton Wheeler Crawler Amphibious Dredge Excavator With Japan Yanmar Engine 29 Ton Wheeler Crawler Amphibious Dredge Excavator With Japan Yanmar Engine 3

Our Services



1. All machines are with one year warranty, will send parts for free during the warranty period.

2. 24 hours every day, 7 days one week service

3. Perfessional service man give quick solution and support to all problems and questions.

4. Quick delivery time,

5. Professional sales team consisted of diligent, dynamic and innovative people with international version

6. Excellent logistics services ensuring timely delivery of consignments all over the world through ocean, airline, road and railway.

7. Well coordinated and expertly managed operation system adapted.

8. Expert team of after-sales professionals assuring all our products are under excellent maintenance and performance.
