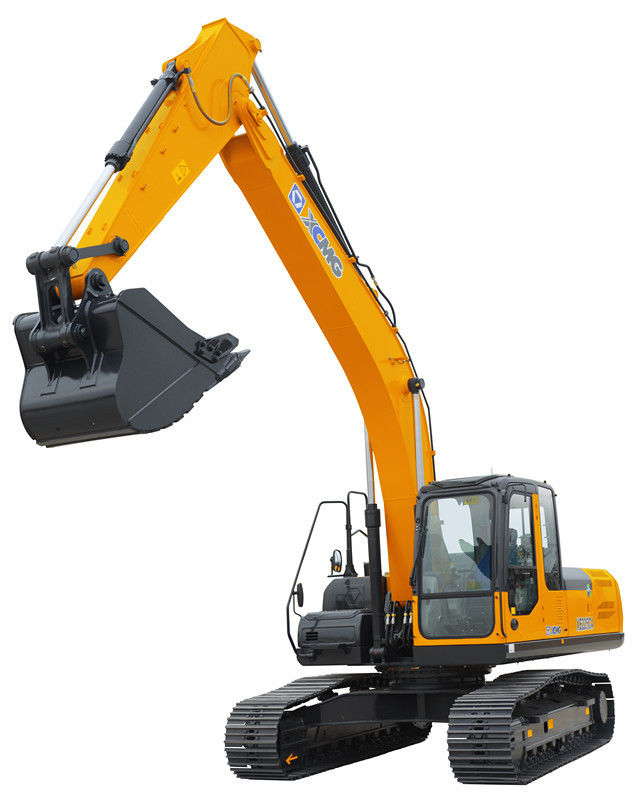

37 Ton Heavy Earth Moving Machinery XE370CA Large Hydraulic Crawler Excavator

37 Ton Heavy Earth Moving Machinery XE370CA Large Hydraulic Crawler Excavator

    • 37 Ton Heavy Earth Moving Machinery XE370CA Large Hydraulic Crawler Excavator
    • 37 Ton Heavy Earth Moving Machinery XE370CA Large Hydraulic Crawler Excavator
    • 37 Ton Heavy Earth Moving Machinery XE370CA Large Hydraulic Crawler Excavator
  • 37 Ton Heavy Earth Moving Machinery XE370CA Large Hydraulic Crawler Excavator

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: XCMG
    Certification: CE/ISO9001
    Model Number: XE370CA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: nude
    Delivery Time: 10-30days
    Payment Terms: L/C, T/T
    Supply Ability: 1000 sets/year
    Contact Now
    Detailed Product Description
    Maximum Digging Height: 10123mm Max Digging Radius: 10470mm
    Moving Type: Crawler Excavator Maximum Digging Depth: 6927mm
    Dimension(L*W*H): 11388*3190*3530mm Engine Rated Power: 190.5Kw
    Engine Model: ISUZU AA-6HK1XQP
    High Light:

    dirt moving equipment

    ,

    earth digging equipment

    China machine manufacturer XE370CA crawler excavator XCMG Official Manufacturer 37 ton new crawler



    Product Quick Details:



    Warranty: 1 Year

    After-sales Service Provided: Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts

    Place of Origin: Jiangsu, China (Mainland)

    Brand Name: CANMAX

    Condition: New

    Moving Type: Crawler Excavator

    Maximum Digging Height:8365/10225mm

    Maximum Digging Depth:2866/7194mm

    Max Digging Radius:7972/11290mm

    Certification:CE ISO

    Product name: XE370CA Crawler excavator

    Keywords: crawler excavator

    Bucket Capacity:1.8m3

    Engine Model:ISUZU AA-6HK1XQP

    Engine Rated Power:190.5Kw

    Max. Digging Height:10123mm

    Max. Digging Depth:6927mm

    Max. Dumping Height:10470mm



    Product Features:

    1The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
    2The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
    3, The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
    4The advanced structure and hinge points on the digging end and the industrys largest rotating angle of the bucket ensure strong soil holding capacity.

    5. The original ISUZU engine provides powerful performance and low fuel consumption,applied with the most optimized matching system.
    6.  Advanced energy-saving Kawasaki hydraulic system.
    7. New luxury and comfortable cab system with large space is designed on the basis of ergonomic concept.
    8. Heavy load and strengthening type boom and arm can guarantee the powerful digging force under poor working conditions.
    9. Optional break hammer and pipeline,quick coupler,cab fence,traveling alarm and rotary warning lights are available.

    Product Specification:

    Description Unit Parameter value
    Operating weight kg 36600
    Bucket capacity 1.4~1.8
    Engine Model Engine ISUZU AA-6HK1XQP
    Style Direct injection ---
    Four strokes ---
    Water cooling ---
    Turbo-charging ---
    Air to air intercooler ---
    No. of cylinders --- 6
    Output power kW/ r/min 190.5/2000
    torque/speed N.m 872.8/1700
    Displacement L 7.79
    Main performance Travel speed(H/L) km/h 5.4/3.2
    Gradeability % 70
    Rotary speed r/min 9.6
    Ground pressure kPa 66.6
    Bucket digging force kN 263
    Arm digging force kN 225
    Hydraulic system Main pump -- K5V160DTH
    Rated flow of main pump L/min 2×320
    Main safety valve pressure MPa 34.3/37
    Pressure of pilot system MPa 3.9
    Oil Capacity Fuel tank capacity L 630
    Hydraulic tank capacity L 320
    Engine oil capacity L 28
    Appearance size Overall length mm 11386/6.4m boom,
    11186/6.2m boom
    Overall width mm 3190
    Overall height mm 3530/6.4m boom,
    3676/ 6.2m boom
    Width of platform mm 2950
    Length of crawler mm 5035
    Overall width of chassis mm 3190/600 Crawer,
    3290/700 Crawer,
    Width of crawler mm 600
    Wheel base of crawler mm 4040
    Crawler gauge mm 2590
    Clearance under counterweight mm 1197
    Min. ground clearance mm 500
    Min. rear-end swing radius mm 3570
      Max. digging height mm 10123
    Working scope Max. dumping height mm 6947
      Max. digging depth mm 6927
    (2.71m arm) Max. digging depth at the range of level 8 feet mm 6709
      Max. vertical wall digging depth mm 5312
      Max. digging reach mm 10470
      Min. swing radius mm 4424
    Working scope Max. digging height mm 9891
      Max. dumping height mm 6820
    (2.5m arm) Max. digging depth mm 6786
      Max. digging depth at the range of level 8 feet mm 6666
      Max. vertical wall digging depth mm 4914
      Max. digging reach mm 10414
      Min. swing radius mm 4416
    Worker Standard Length of boom mm 6400
    Length of arm mm 2670
    Bucket capacity 1.6
    Optional Length of arm mm 2900/3200/4000
    Bucket capacity 1.4/1.5
    1.8



    37 Ton Heavy Earth Moving Machinery XE370CA Large Hydraulic Crawler Excavator 0
