|Place of Origin:||CHINA|
|Minimum Order Quantity:||1UNIT|
|Delivery Time:||25-30 work days|
|Supply Ability:||1000 units per month|
|Model No.:||RT40E||Lifting Capacity:||40T|
|Driving Type:||4x4||Kerb Mass:||30300KG|
|Engine Power:||142kw/(r/min)||Min. Turning Radius (outer Edge Of The Vehicle Body):||5.7 M|
truck mounted hydraulic crane,
telescopic boom truck mounted crane,
40T 4x4 mobile truck crane

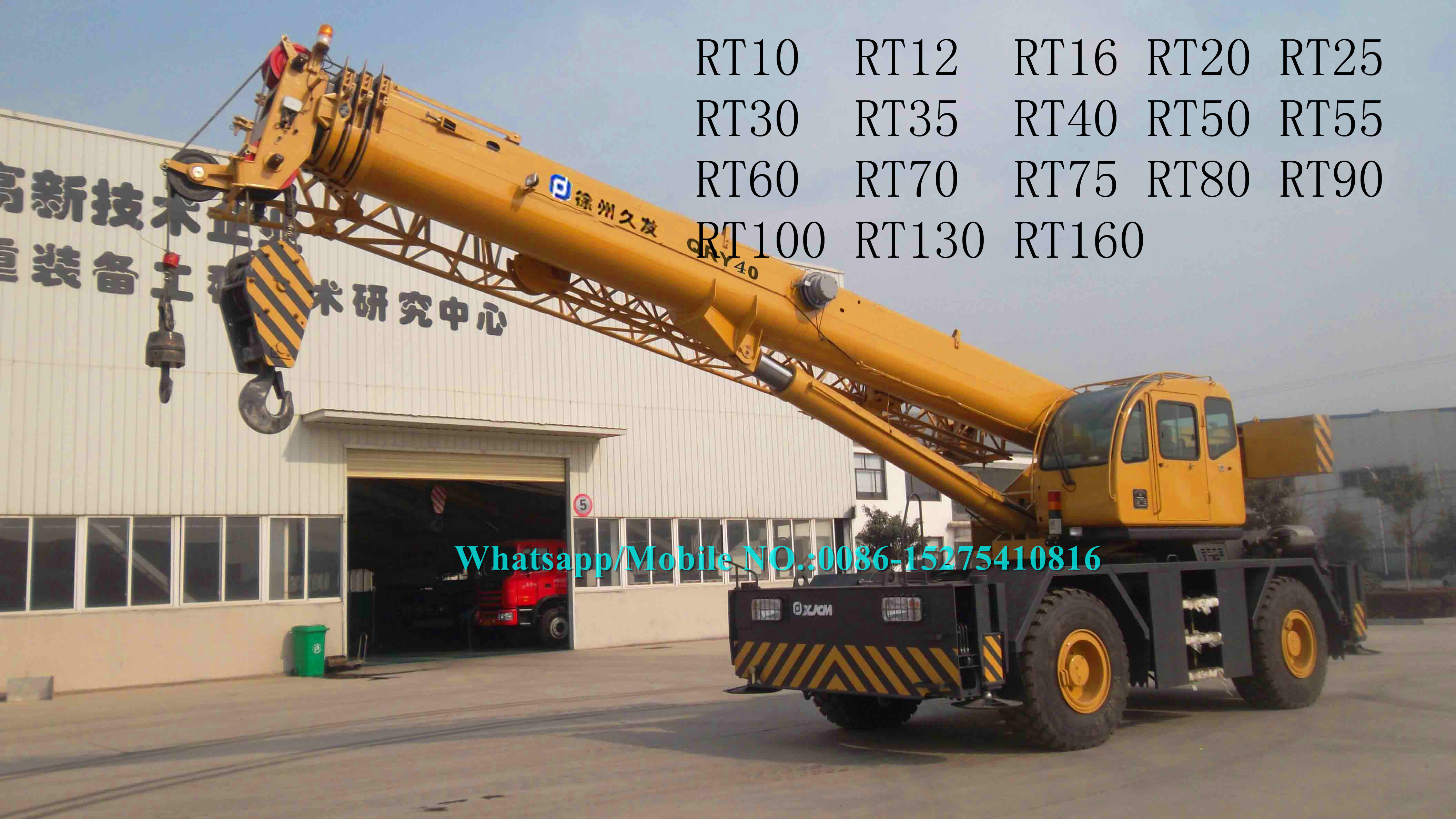

40 ton rough terrain crane mobile truck crane RT40E
Our company will offer you high quality products with lower price, fast delivery and excellent after-sale service.Looking forward with interest to hearing from you soon.
RT40E is a type of high property price ratio rough-terrain crane of XCMG specially for the European market. RT40E is equipped with the two-axle loading chassis, which has two types of drive modes, four types of steering modes and backward-forward driving functions. It also has four sections of dodecagon main booms, H-type outrigger, fixed balance counterweight, as well as three working modes, including: hoisting with the support of outriggers, hoisting with the support of tire and hoisting when driving. It is widely used in oil field, mine, road and bridge construction, warehousing base and other construction sites.
Strong Power of Hoisting, Wide Range of Work
It has 32m main booms, 15m auxiliary booms, with the longest main booms and the highest comprehensive hoisting performance in the product of the same tonner.
Maneuvering and Flexible, Quick and Efficient
The max speed reaches 25km/h (38km/h for option) and the max gradeability is 55% and the min. turning radius is 5.7m. All these three factors make it flexible.
Safe and Reliable, No Worry to Handle
The product is equipped with lifting protection control system in case of overload, over-retracting and over-stretching as well as exclusive technology in this field like rear axle-wheel automatic return-control system and safety-driving automatic protection system. All these elevate its safety performance largely.
The product is equipped with top features in this field, professional matching upgrading and systematic evaluation test. And it has passed test like driving 11,000km and 10,000 times hanging. Both ensure its reliability.
Economic and Environmental Protection, with Cost Saving
The product is equipped with optical matching power transmission system and torque converter with lockout function, which decrease the oil consumption over 20% at high speed.
The one-way stabilized current control of parallel hydraulic pressure system reduces the loss of flow; the gravity drop luffing system needs no extra power and save the oil consumption.
Comfortable to Handle, Convenient to Operate
The product is equipped with full hydro-steering control system and automatic-manual gear box, which make it easy to handle. And the compounded suspension of leaf spring and hydraulic oil tank, and the self-recognition phased control of rotary cushion technology make the operation stability and comfortable;
The product is equipped with humanized climb ladder, maintenance access and control layout. And it is equipped with professional man-machine engineering simulation analysis; exquisite man-machine interface and stand-alone fault diagnose function. It is comfortable to handle and convenient to operate.
|Axle load||1st Axle||kg||15100||±3%|
|Travel||Max. travel speed||km/h||25||≥|
|Min. turning radius||m||5.7 (4 wheels), 9.6 (2 wheels)||±3%|
|Min. ground clearance||mm||400||±1%|
Braking distance (at 24 km/h)
|Rated engine power||kW||142||/|
|Engine rated rotation speed||r/min||2200||/|
|Engine emission standard||off-road EU Stage IIIA||/|
|Driving type||4×2, 4×4||/|
|Number of tires||4||/|
Working Site Overseas:
Q: Are you original manufacturer?
A: Yes, we XCMG are a official leading manufacture in construction machinery in China and we have the whole series products you need.
Q: Which payment terms are available to us?
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.
Q: Which Incoterms 2010 terms can we work?
A: We XCMG are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
Q: How long will the delivery time take?
A: Normally it will take about 30-40 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 20 days.
Q: How about AFTER-SALES SERVICE ?
A: 365×24 Year-round Service
Globally, we have more than 5000 service engineers and 1500 dedicated service vehicles. We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."
Smart Butler Service
We have established a perfect GPS Global Service Center, and we can provide you with a proactive smart butler system through an Internet of Things platform.
Spare Parts When You Need Them
We have thousands of spare parts centers across five continents that stock almost 1 billion specialist spare parts. We promise that spare parts will be delivered within 72 hours.
After-market Worry-free Service
We are committed to providing after-market services, including rentals, second-hand vehicle evaluations, trade-ins, overhauls, and recycling. We always stick to our responsibility and mission of handling your concerns as best we can.
We grant our clients a fourteen-month or 2000-hours warranty for any machine purchased from us.
