55 Ton ZOOMLION Rough Terrain Crane , Hydraulic Truck Cranes RT55 Single Cab Design

55 Ton ZOOMLION Rough Terrain Crane , Hydraulic Truck Cranes RT55 Single Cab Design

  • 55 Ton ZOOMLION  Rough Terrain Crane , Hydraulic Truck Cranes RT55 Single Cab Design
  • 55 Ton ZOOMLION  Rough Terrain Crane , Hydraulic Truck Cranes RT55 Single Cab Design
  • 55 Ton ZOOMLION  Rough Terrain Crane , Hydraulic Truck Cranes RT55 Single Cab Design
  • 55 Ton ZOOMLION  Rough Terrain Crane , Hydraulic Truck Cranes RT55 Single Cab Design
  • 55 Ton ZOOMLION  Rough Terrain Crane , Hydraulic Truck Cranes RT55 Single Cab Design
  • 55 Ton ZOOMLION  Rough Terrain Crane , Hydraulic Truck Cranes RT55 Single Cab Design
  • 55 Ton ZOOMLION  Rough Terrain Crane , Hydraulic Truck Cranes RT55 Single Cab Design
  • 55 Ton ZOOMLION  Rough Terrain Crane , Hydraulic Truck Cranes RT55 Single Cab Design
  • 55 Ton ZOOMLION  Rough Terrain Crane , Hydraulic Truck Cranes RT55 Single Cab Design
  • 55 Ton ZOOMLION  Rough Terrain Crane , Hydraulic Truck Cranes RT55 Single Cab Design
  • 55 Ton ZOOMLION  Rough Terrain Crane , Hydraulic Truck Cranes RT55 Single Cab Design
55 Ton ZOOMLION  Rough Terrain Crane , Hydraulic Truck Cranes RT55 Single Cab Design
Product Details:
Place of Origin: CHINA
Brand Name: XCMG
Certification: CCC/ISO/CE
Model Number: RT55
Payment & Shipping Terms:
Minimum Order Quantity: 1UNIT
Price: Negotiation
Packaging Details: Nude
Delivery Time: 25-30 work days
Supply Ability: 1000 units per month
Contact Now
Detailed Product Description
Model No.: RT55 Lifting Capacity: 55T
Driving Type: 4x4 Max. Lifting Moment Of Basic Boom: 1967KN.M
Max.lifting Moment Of Longest Boom: 1126KN.M Max. Lifting Height Of Jib: 52.4M
Max Gradeability: 57% Outline Dimensions (L×W×H): 13100×3300×3750MM
High Light:

telescopic boom truck mounted crane

,

telescopic mobile crane

High Quality ZOOMLION 55ton all terrain crane RT55 for sale



Features:

1. Max.loading:55t
2  Engine:160KW

3. Max.lifting height:56.4m
4. Kessler axle
5. 4*4 drive

6. Crab steering,2 wheel steering,4 wheel steering

7. Wheel base 3950 mm,allowing convenient steering in narrow space



Advantages:

Maneuverable and robust drive

• Four-wheel drive and four-wheel steer chassis;
• Fully hydraulic steering system;
• Variable steering modes, front-wheel steer,four-wheel steer and crab steer;
Short vehicle length and small turning radius provide the crane with maximum maneuverability and flexibility in narrow job sites

Excellent off-road capability
Big ground clearance and departure / approach angle offer excellent off-road capability.

Strong gradeability
Cummin electronically-controlled engine, automated transmission and steerable drive axlex provide reliable power output.
Even in the condition of abrupt road resistance,the engine can also be functional.
Four-wheel drive, hydraulic suspension and special tires optimize the vehicle’ s drive performance to its maximum

Pick-and-carry operations
The rough terrain crane has the ability to pick and carry loads, thus improves the working efficiency greatly.

The crane can also carry out ”On tires“ Lifts without extending the outrigger beams in narrow job sites.
Superior pick-and-carry ability during short-distance transit can bring great convenience to the users.

Single cab design
Single cab design with large skylight provides large field of view;
Air-cushioned seat suits to all types of figures, which can release the driver’ s or operator’ s fatigue
The crane is fitted with air conditioning, suitable for all-weather work;
Digital display and keyboard units,advanced data bus technology,error check



Main Parameters:



Type Ser. No. Item Unit Value
Working performance 1 Max. rated lifting weight × working radius kg.m 55000×3.0
2 Max. lifting moment of basic boom kN.m 1967
3 Max.lifting moment of longest boom kN.m 1126
4 Max. lifting height of longest boom m 34.8
5 Max. lifting height of jib m 52.4
Dimensions 6 Outline dimensions (L×W×H) mm 13100×3300×3750
7 Distance between outriggers (Longitudinal × transversal) mm 6900×6900
8 Main boom length (completely retracted – completely extended) mm 10800~34000
9 Jib length (completely retracted – completely extended) mm 10000~17000
10 Main boom angle of elevation ° -3~78
11 Swing range   360°continuously
Working speed 12 Max.speed of single rope on the drum of main winch m/min 150
13 Boom extension time s 100
14 Boom retraction time s 80
15 Boom derricking up time s 56
16 Boom derricking down time s 63
17 Swing speed r/min 0~2.5
Hydraulic system 18 Rated working pressure MPa 27
19 Rated working flow L/min 400
20 Hydraulic oil tank capacity L 700
Mass 21 Complete vehicle kerb mass kg 39200
22 Front axle load kg 20440
23 Rear axle load kg 18760
Traveling 24 Max. traveling speed (forwards / backwards) km/h 39/15
25 Wheelbase mm 3950
26 Treads (front / rear) mm 2605
27 Max. gradeability % 75



Products Photos:

55 Ton ZOOMLION  Rough Terrain Crane , Hydraulic Truck Cranes RT55 Single Cab Design 055 Ton ZOOMLION  Rough Terrain Crane , Hydraulic Truck Cranes RT55 Single Cab Design 155 Ton ZOOMLION  Rough Terrain Crane , Hydraulic Truck Cranes RT55 Single Cab Design 255 Ton ZOOMLION  Rough Terrain Crane , Hydraulic Truck Cranes RT55 Single Cab Design 3

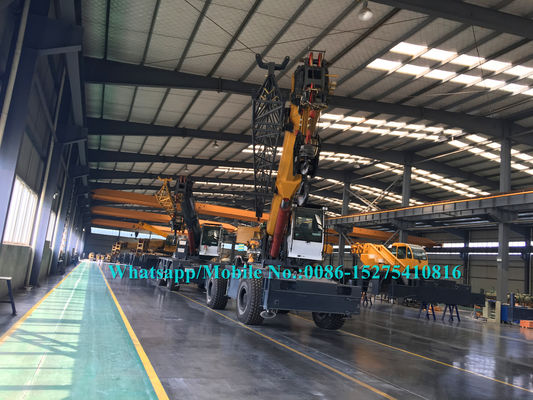

Working Site Overseas:

55 Ton ZOOMLION  Rough Terrain Crane , Hydraulic Truck Cranes RT55 Single Cab Design 4

FAQ

Q: Are you original manufacturer?

A: Yes, we XCMG are a official leading manufacture in construction machinery in China and we have the whole series products you need.



Q: Which payment terms are available to us?

A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.



Q: Which Incoterms 2010 terms can we work?

A: We XCMG are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.



Q: How long will the delivery time take?

A: Normally it will take about 30-40 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 20 days.



Q: How about AFTER-SALES SERVICE ?

A: 365×24 Year-round Service

Globally, we have more than 5000 service engineers and 1500 dedicated service vehicles. We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."



Smart Butler Service

We have established a perfect GPS Global Service Center, and we can provide you with a proactive smart butler system through an Internet of Things platform.



Spare Parts When You Need Them

We have thousands of spare parts centers across five continents that stock almost 1 billion specialist spare parts. We promise that spare parts will be delivered within 72 hours.



After-market Worry-free Service

We are committed to providing after-market services, including rentals, second-hand vehicle evaluations, trade-ins, overhauls, and recycling. We always stick to our responsibility and mission of handling your concerns as best we can.



Quality warranty

We grant our clients a fourteen-month or 2000-hours warranty for any machine purchased from us.
