Hydraulic Rough Terrain Boom Truck Crane With Energy Saving Hydraulic System RT120E

Hydraulic Rough Terrain Boom Truck Crane With Energy Saving Hydraulic System RT120E

  • Hydraulic Rough Terrain Boom Truck Crane With Energy Saving Hydraulic System RT120E
  • Hydraulic Rough Terrain Boom Truck Crane With Energy Saving Hydraulic System RT120E
  • Hydraulic Rough Terrain Boom Truck Crane With Energy Saving Hydraulic System RT120E
  • Hydraulic Rough Terrain Boom Truck Crane With Energy Saving Hydraulic System RT120E
  • Hydraulic Rough Terrain Boom Truck Crane With Energy Saving Hydraulic System RT120E
Hydraulic Rough Terrain Boom Truck Crane With Energy Saving Hydraulic System RT120E
Product Details:
Place of Origin: CHINA
Brand Name: XCMG
Certification: CCC/ISO/CE
Model Number: RT120E
Payment & Shipping Terms:
Minimum Order Quantity: 1UNIT
Price: Negotiation
Packaging Details: Nude
Delivery Time: 25-30 work days
Supply Ability: 1000 units per month
Contact Now
Detailed Product Description
Model No.: RT120E Lifting Capacity: 120T
Driving Type: 4x4 General quality of running state: 79500KG
Engine rated power: 224 Kw/(r/min) Minimum ground clearance: 568 MM
Max Gradeability: 60% Outline Dimensions (L×W×H): 14900×3500×3990MM
High Light:

truck mounted hydraulic crane

,

telescopic mobile crane

SANY crane mobile 120 tons STC1200S



High Lights:

1. Brand new 2018

2. Emission: EURO V



Benefits & features



Sany STC1200S truck crane is the first 120t-class crane of 5 axles and 7-section boom in China, with 54.5t overall weight.

Innovative chassis system

The use of innovative 5-axle chassis design and multi braking modes provide more reliable traveling performance for chassis.

With tipping early-warning technology, high stable overall operation and high safety can be achieved.

Safe and stable lifting performance

Seven-section boom of high strength steel structure and optimized U-shaped section reduces weight significantly and improve safety rates.

Jib mounting angles are 0°, 15° and 30° which ensures fast and convenient change-over between different operating conditions so as to improving working efficiency of the machine.

Unique hydraulic control technology

Self-developed dual-pump converging / diversion main valve is used. Converging flow of the single-action dual-pump ensures fast operation and high work efficiency; combined-action dual pump diversion system is applied to ensure stable controllability.

Electric proportional variable displacement piston pump is used to ensure high-accurate flow control and higher efficiency and energy saving.

Intelligent electronic control

Self-developed controller SYMC specially made for engineering machinery is adopted. The adoption of CAN-bus full-digital network control technology ensures stable control signal, simple harness and high reliability. Timely feedback of data information can achieve the monitoring of the overall working status in real time.

The load moment limiter equipped with the comprehensive intelligent protection system is used with accuracy within 5% to provide a comprehensive logic and interlock control, thus ensuring more safe and reliable operation.

Comfortable

385/95R25 tyre is equipped which is excellent in ability of cross-country with better stability. Sleeper is equipped in the driving cab providing comfortable condition for the driver.

Advantages:

1,Specialized energy-saving hydraulic system.

2,Due to powerful power configuration, specific off-road tires and all-wheel drive, the crane can easily handle various tough terrains.

3,The crane is designed by conforming with the safety standards of Europe, North America and China, for optimal active protection.

4,Developed jointly by Chinese and German engineers, with advanced design concept.

5,Accumulation of experience in boom crane design for 70 years.

6,Top class modern plate machining center, and first class NC machining center.



Specification

Item Unit Parameter value
Dimension parameter   *
Overall length (mm) 14900
Overall width (mm) 3500
Overall height (mm) 3990
Wheelbase (mm) 4645
Mass parameter   *
weight (kg) 79500
Axle load (kg) 41560/37940
Engine *
Model   QSL
Engine power (kW) 224
Engine rated torque (N.m) 1369
Speed parameter *
Max. travel speed (km/h) 25
Minimum driving speed (km/h) 2
Min.turning diameter (m) 15
Min ground clearance (mm) 568
Max.gradeability (%) 60
Approach angle (°) 21.1
Departure angle (°) 17.3
Fuel consumption of 100km (L)
Operation performance parameter   *
Max.total rated lifting capacity (t) 120
Min.rated working radius (m) 2.5
Base boom Max load moment (kN.m) 3500
Turning radius at swing tadble tail (mm) 4930
Base boom (m) 13.2
Full-extend boom (m) 48.8
Boom+Jib (m) 67.9

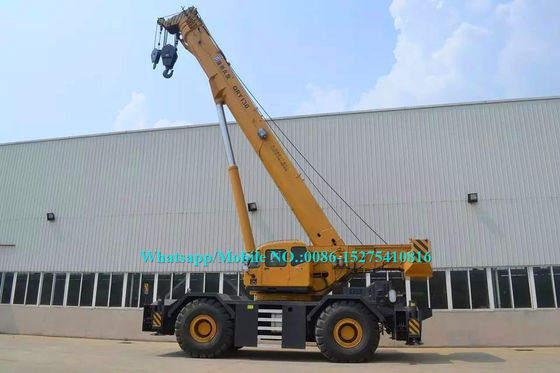

Photos:

Hydraulic Rough Terrain Boom Truck Crane With Energy Saving Hydraulic System RT120E 0Hydraulic Rough Terrain Boom Truck Crane With Energy Saving Hydraulic System RT120E 1Hydraulic Rough Terrain Boom Truck Crane With Energy Saving Hydraulic System RT120E 2

Working Site Overseas:

Hydraulic Rough Terrain Boom Truck Crane With Energy Saving Hydraulic System RT120E 3

FAQ

Q: Are you original manufacturer?

A: Yes, we XCMG are a official leading manufacture in construction machinery in China and we have the whole series products you need.



Q: Which payment terms are available to us?

A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.



Q: Which Incoterms 2010 terms can we work?

A: We XCMG are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.



Q: How long will the delivery time take?

A: Normally it will take about 30-40 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 20 days.



Q: How about AFTER-SALES SERVICE ?

A: 365×24 Year-round Service

Globally, we have more than 5000 service engineers and 1500 dedicated service vehicles. We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."



Smart Butler Service

We have established a perfect GPS Global Service Center, and we can provide you with a proactive smart butler system through an Internet of Things platform.



Spare Parts When You Need Them

We have thousands of spare parts centers across five continents that stock almost 1 billion specialist spare parts. We promise that spare parts will be delivered within 72 hours.



After-market Worry-free Service

We are committed to providing after-market services, including rentals, second-hand vehicle evaluations, trade-ins, overhauls, and recycling. We always stick to our responsibility and mission of handling your concerns as best we can.



Quality warranty

We grant our clients a fourteen-month or 2000-hours warranty for any machine purchased from us.
