| Place of Origin: | CHINA |
| Brand Name: | NORTH BENZ |
| Certification: | CCC/CE/ISO9001 |
| Model Number: | NG80B 2638 |
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Package in Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | LC/TT |
| Supply Ability: | 5000 UNITS/Month |
| Model: | NG80B 2638 | Driving Type: | 6x4 |
|---|---|---|---|
| Engine Power:: | 380hp | Gearbox:: | FAST Brand |
| Front Axle: | Benz Technology 6.5ton Front Axle | Water Tank Capacity:: | 20000L |
| Color:: | Red/Orange/White/Blue | Tire:: | 12.00R20 |
| High Light: | fuel tanker trucks,oil tanker truck |
||
BEIBEN Brand NG80B V3 380hp 6X4 10 wheelers 20000L Water Tanker Truck for transport water
BEIBEN V3 380hp 20000L Water Tanker Truck
Traction type: 6x4
Engine: WD10 340/380HP
Transmission: FAST
Frame: BENZ
Main Specs:
| Traction type | 6X4 | |||
| Driving type | LHD/RHD | |||
| Dimension(Lx W xH)(unloaded) | 10576×2500×3430 | |||
| Wheel base(mm) | 5050+1450 | |||
| Max speed(km/h) | 90 | |||
| Curb weight(kg) | 12000 | |||
| Loading Weight(kg) | 25,000 | |||
|
Engine Steyr technology, made in China |
Model:WD615.340 | water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection With the exhaust valve brake, EGR (gas exhausted recycling), deisel engine | ||
| Displacement(L) | 9.726/Diesel | |||
| Bore X stroke(mm) | 126/130 | |||
| Max power(kw/rpm) | 247/2200 (340hp) | |||
| Max torque(Nm/rpm) | 1350/1300-1600 | |||
| Emission | EURO II | |||
| Fuel tanker(L) | 400L steel fuel tanker | |||
| Clutch | Model | 430 Diaphragm type | ||
| Gearbox | Model |
9JS150 (Fuller) mechanism, 9gears, 1reverse gear |
||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||
| Assistant brake | Engine exhaust brake | |||
| Park brake | Potential springs pressing on middle and rear wheels | |||
| Steering system | Model | ZF8098 | ||
| Frame | Fish belly, shape, variable width, variable sections, side beam structure | |||
| Front axle (Mercedes Benz Technology) |
7.5T Double-shoe pneumatic brake, non-driving steering axle
|
|||
| Middle and Rear axle (Mercedes Benz Technology) |
13T Double-shoe pneumatic brake, casting, double reduction driving axles with inter-wheel & inter-axles differential locks
|
|||
| Tyre | 12.00R20 Radial tyre Number of tyre:10+1 spare | |||
| Electrical system | Battery | 2X12V/135Ah | ||
| Generator | 28V-35A | |||
| Starter | 5.4Kw/24V | |||
| Cab |
Mercedes-Benz technology NG80B long Cabin, single sleeper with air-conditioner Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; |
|||
| Water tank | ||||
| Tank capacity | 20,000 liters | |||
| Thickness of the tanker body | the thickness of the shell is 5mm approx; | |||
| Dish ends | the thickness of the shell is 6mm approx; | |||

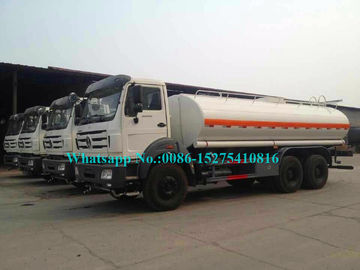

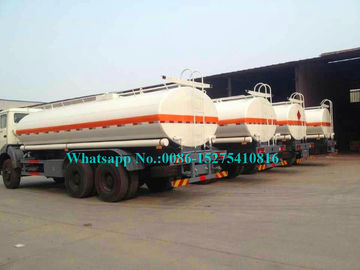

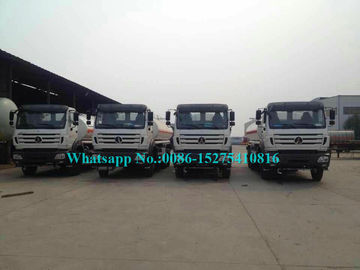

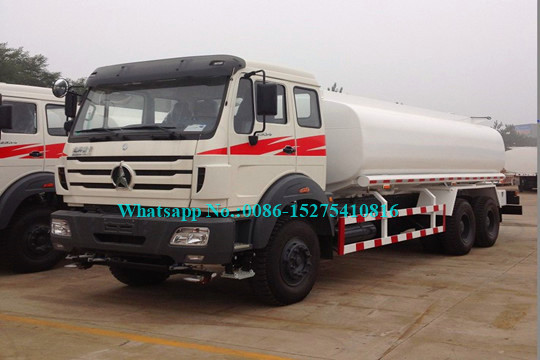

Products Photos:
Our Services
Suitable for the MID/long distance transportation of the MID/heavy duty trucks and truck trailers.
Comfortable, safety, reliability, electronic level geared to international top standards
1. Can i have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
2. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is within 25 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.
3. Can i customize the painting and the logo?
Yes, we offer customized logo for any type.
4. What's the payment method?
TT 30% as Deposit, Balance Before shipment by TT or L/C at sight
Products:
Series: cargo truck, dump truck, tractor truck, special truck, bus, etc
Driving type: RHD, LHD
Emission: EURO II, III, IV, V
FAQ
1.Does your company is a factory or trade company?
We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.
2.Whats the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
3. What’s your MOQ?
One unit trailer or truck.
4. How do you transport the semi trailers and trucks?
We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
bulk or container.
5. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Export Market:
Africa:
Egypt, Sudan, Libya, Tunisia, Algeria, Morocco, Azores, Madeira, Ethiopia, Eritrea, Somalia, Djibouti, Kenya, Tanzania, Uganda, Rwanda, Burundi and Seychelles, West Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d’Ivoire, Ghana, Togo, Benin, Niger, Nigeria and Canary Islands, Chad, Central Africa, Cameroon, Equatorial Guinea, Gabon, Congo, Democratic Republic of the Congo, Sao Tome and Principe, Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, Namibia, South Africa, Swaziland, Lesotho, Madagascar, Como Luo, Mauritius, Reunion, St. Helena, etc.
South America:
Colombia, Venezuela, Guyana, French Guiana, Suriname, Ecuador, Peru, Bolivia, Brazil, Chile, Argentina, Uruguay, Paraguay, Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica, Panama, Antigua and Barbuda
South Pacific:
Papua New Guinea, Northern Mariana Islands, French Polynesia, Fiji, Guam, Heard and McDonald Islands, Kiribati, Cocos Islands, Cook Islands, Republic of the Marshall Islands, American Samoa, Microrony West Asia, Nauru, Niue, Norfolk Island, Palau, Pitcairn Islands, Samoa, Christmas Island, Solomon Islands, Tonga, Tuvalu, Tokelau, Wallis and Futuna, Vanuatu, New Caledonia.
Asia countries:
North Korea, Mongolia, including Vietnam, Laos, Cambodia, Myanmar, Thailand, Malaysia, Singapore, Indonesia, Philippines, Brunei, Sri Lanka, Maldives, Pakistan, India, Bangladesh, Nepal, Bhutan, Afghanistan, Iran, Azerbaijan, Armenia, Georgia, Turkey, Cyprus, Syria, Lebanon, Palestine, Jordan, Iraq, Kuwait, Saudi Arabia, Yemen, Oman, United Arab Emirates, Qatar, Bahrain, Turkmenistan, Uzbekistan, Kyrgyzstan, Tajikistan, Kazakhstan.
