|Place of Origin:||CHINA|
|Model Number:||SY5295THB 380C-8|
|Minimum Order Quantity:||1 UNIT|
|Packaging Details:||Package in Nude.|
|Delivery Time:||30-40 Days After Pay Deposit.|
|Verticle Reach::||38m||Max. Concrete Output::||170m³/h|
|Number Of Arms::||4||Folding System::||Z|

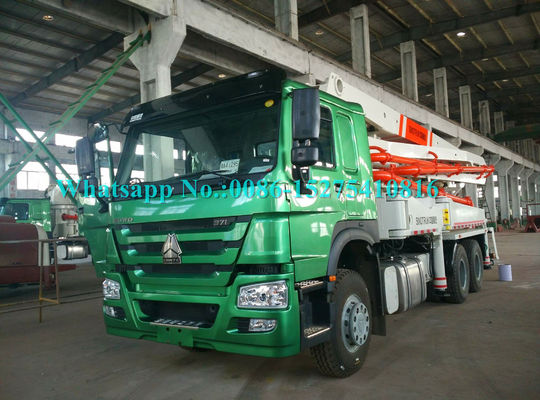

truck mounted concrete pump,
self loading mobile concrete mixer
One Button Stabilization Technology
The one button stabilization technology quickly dampens any boom movement resulting from repositioning the boom. This allows precise positioning of the end hose.
Boom Anti Vibration Technology
The boom anti vibration technology reduces vibration during pumping by 50% allowing less movement and greater control of the end hose.
Energy Saving Technology
With cycle times of up to 29 per minute (at 12MPa), pump efficiency is increased up to 25% while fuel consumption is decreased by up to 10%.
Anti Overswing Technology
By adopting our new swing brake technology, the boom's overswing amplitude is reduced by 60%
Fault Self Diagnostic Technology
Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the detected faults can reduce troubleshooting time by 70%.
Smart Boom System
One Button Boom Extend/Retract
Press upward on the boom extend/retract button to extend the boom or press downward to retract the boom automatically.
Coordinated Section Operation
The boom can be rapidly and accurately repositioned by coordinating the movement the first and second sections
Boom Overload Protection Technology
Relief valves are mounted on the boom cylinder counterbalance valves. These valves will release pressure in the event of excessive boom load to prevent damage to the boom.
Hopper Screen Interlock Technology
As an operator protection measure, the pump will automatically stop when the hopper screen is opened.
Hydraulic Oil Level Monitoring
The oil level in the hydraulic reservoir is continually monitored. If the level drops below a preset level, an alarm will sound and the pump will be stopped to prevent damage to the hydraulic system.
|Pump Unit||Max. Theor. output||m3/h||120/75|
|Max. Theor. concrete output Pressure||MPa||7/11|
|Rated working pressure||MPa||35|
|Hydraulic system type||opened loop|
|Distribution valve||S valve|
|Oil cylinder dia.×stroke||mm||φ130×2100|
|Concrete cylinder dia.×stroke||mm||φ230×2100|
|Hydraulic oil cooling||Wind cooling|
|Recommended concrete slump||cm||12~23|
|Max. aggregate dimension||mm||40|
|Boom Section||Structure type||34X-4Z|
|Max. horizontal distance||m||29.1|
|Max. placing depth||m||20.1|
|The length of boom section||mm||8450/6860/6870/6920|
|Sections folding angle||90°/180°/240°/230°|
|End hose length||mm||3000|
|Min. height of opening placing boom||mm||7900|
|Outriggers span (front×rear×side)||mm||5920×5280×7125×7355|
|Upper Structure||Upper Structure Mass||kg||15260|
Q1.How about the delivery time?
A1:Usually it takes about 7-30 days to produce.
Q2.What about the guarantee?
A2:1 year and we can offer you some spare parts for free for first order.
Q3.What should I do for the quality problems?
A3:If you meet quality problems please send to me the products photo fitst,our after service department will deal with for you.
Q4.Did you have a good orgonization of shipping vessle ?
A4:Yes,we work with many famous ship company like PIL,COSCO,CMA,MCS,MAERSK etc for many years and they offer us very good price.
Q5. What's the payment method?
A5: 30% T/T as Deposit, Balance 70% TT before shipping.
Q6. How about shipment?
A6: 20FT container, 40FT container,40FT high container,opentop container,flat bed container ,RoRo ship or bulk ship according to the size of the products
