| Place of Origin: | CHINA |
| Brand Name: | SINOTRUCK |
| Certification: | CCC/ISO9001/CE |
| Model Number: | ZZ3167M3811 |
| Minimum Order Quantity: | 1UNIT |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Package in Nude. |
| Delivery Time: | 30-45 Work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000UNITS/MONTH |
| Model:: | ZZ3167M3811 | Cabin:: | HW70 |
|---|---|---|---|
| Engine:: | 290HP | Cargo Body: | 4.2X2.3X1.5 |
| Transmission:: | SINOTRUK HW19710 Transmission | Color: | White Cabin With Green Body |
| Highlight: | heavy duty tipper trucks,sand dump truck |
||

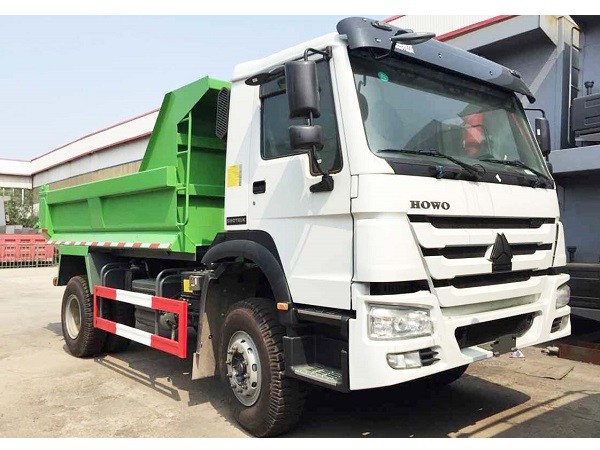

| Model | ZZ3167M3811A/M0BA-5 |
| Driving Type | 4x2 / 6 Wheels / 2 Axles |
Cabin |
HW70--HOWO standard cabin. Basic configuration is without sleeper.new type seat; adjustable steering wheel from up and down, front and rear ; new type integral warm air heater with European style; the German VDO instrument which synchronized with the world high level heavy duty truck; road vehicles is with four point floating suspension (front spiral spring, rear air spring) with shock absorbers, off road vehicles is with four point floating spring suspension + shock absorbers, each type of cabin is with transverse stabilizing device, double lock safety belt; external sunshade; fourth generation air conditioning, air conditioning control board is liquid crystal display with LED lighting; with cruise; with sound warning system for abnormal generator voltage (to prevent damage of electronic devices); electric windows. |
Engine |
Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine model: WD615.87, 290HP ; Emission :Euro 2 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
| Transmission | HW19710, 10F & 2R,HW50 |
| Steering | ZF power steering, modol ZF8118, hydraulic steering with power assitance |
| Front Axle |
HF9,1x9000 KGS Steering with doubleT-cross section beam |
| Rear Axle | HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles. Ratio:5.73 |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Chassis | Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 135 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tyres | 12.00R20, radial tyres with one spare tyre |
| Fuel Tank | 300L |
| Cargo Body | Length:4.2M;Width:2.3M;Height:0.8-1.5M |
| Vehicle Size | 6980x2496X3150mm |
