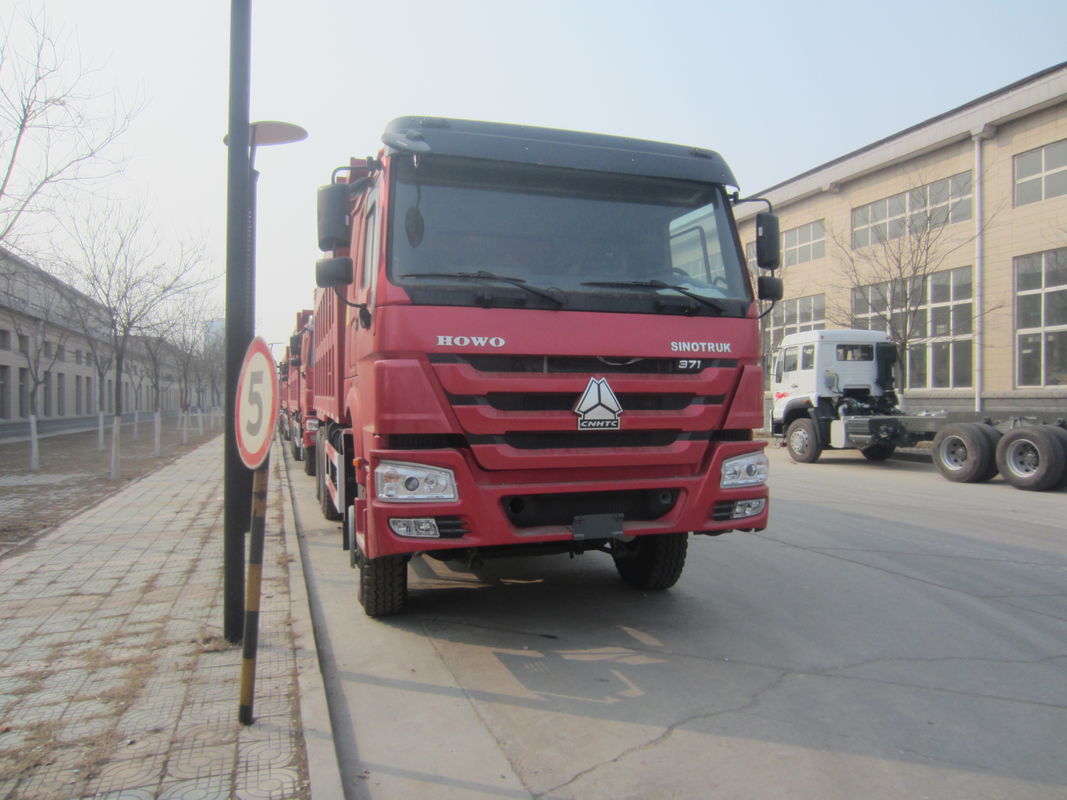

Heavy Duty CNHTC HOWO Dump Truck 336hp Engine / SINOTRUK Dumper Truck

Heavy Duty CNHTC HOWO Dump Truck 336hp Engine / SINOTRUK Dumper Truck

  • Heavy Duty CNHTC HOWO Dump Truck 336hp Engine / SINOTRUK Dumper Truck
  • Heavy Duty CNHTC HOWO Dump Truck 336hp Engine / SINOTRUK Dumper Truck
  • Heavy Duty CNHTC HOWO Dump Truck 336hp Engine / SINOTRUK Dumper Truck
Heavy Duty CNHTC HOWO Dump Truck 336hp Engine / SINOTRUK Dumper Truck
Product Details:
Place of Origin: CHINA
Brand Name: SINOTRUCK
Certification: CCC/ISO9001/CE
Model Number: ZZ3257N3847A
Payment & Shipping Terms:
Minimum Order Quantity: 1UNIT
Price: Negotiable
Packaging Details: Package in Nude.
Delivery Time: 30-45 Work days
Payment Terms: L/C, T/T
Supply Ability: 5000UNITS/MONTH
Contact Now
Detailed Product Description
Model:: ZZ3257N3847A Cabin:: HW76, Single Sleeper
Engine:: WD615.69 336HP Cargo Body: 5600/5800x2300x1500mm
Transmission:: SINOTRUK HW19710 Transmission Color: Other Colors For Option
High Light:

heavy duty tipper trucks

,

sand dump truck

CNHTC HOWO dump truck /10 wheels/ 336hp engine/SINOTRUK/ air conditioner/Dumper/Tipper Truck/heavy duty truck





Product detailes:



Howo
Chassis Model
ZZ3257N3847A/S0WA-5
Driving Type 6X4

Cabin
HW76—HOWO Extended cabin. Basic configuration is with single sleeper; new type seat; adjustable steering wheel from up and down, front and rear ; new type integral warm air heater with European style; the German VDO instrument which synchronized with the world high level heavy duty truck; road vehicles is with four point floating suspension (front spiral spring, rear air spring) with shock absorbers, off road vehicles is with four point floating spring suspension + shock absorbers, each type of cabin is with transverse stabilizing device, double lock safety belt; external sunshade; fourth generation air conditioning, air conditioning control board is liquid crystal display with LED lighting; with cruise; with sound warning system for abnormal generator voltage (to prevent damage of electronic devices); electric windows.

Engine
Make: SINOTRUK
Diesel 4-stroke direct injection diesel engine
Engine model: WD615.69, 336HP ;
Emission :Euro 2
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L
Transmission HW19710, 10F & 2R,HW50
Steering ZF power steering, modol ZF8118, hydraulic steering with power assitance
Front Axle

HF9,1x9000 KGS

Steering with doubleT-cross section beam

Rear Axle HC16, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.
Ratio:5.73
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Chassis Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer
Brake Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Electrics Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 135 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres 12.00R20, radial tyres with one spare tyre
Fuel Tank 300L
Cargo Body 5600/5800x2300x1500mm
Vehicle Size 8545x2496*3490mm



The box (tank) of special vehicles with hydraulic lifting mechanism can be removed or inclined at a certain angle, which can make the goods unloading by themselves or unloading by Horizontal push.

Purpose: Mainly used for transporting the stuff in bulk which can be scattered (such as sand, soil, minerals, etc.), can also be used for integrated stuff, mainly in mining, construction sites and so on. Usually supporting the use of loaders, excavators, belt conveyors etc.
Category: it can be divided into special tripper trucks, ordinary tripper trucks and mining tripper trucks .



Sinotruk Howo Vehicle Details:
Heavy Duty CNHTC HOWO Dump Truck 336hp Engine / SINOTRUK Dumper Truck 0



Sinotruk Howo Products Advantages:

1.Rich Experience in sale of the Sinotruk’s heavy equipment & truck.

2.Expert in kinds of sinotruk heavy trucks and spare parts.

3.Personalized customization to meet your working requirements.

4.High quality of Original parts & OEM services.

5.Engineers and experts on call for pre/after sale support.

6.One-stop service with sinotruk heavy trucks, parts as well as stand-by advice & support.



Sinotruk Howo Production Line:

Heavy Duty CNHTC HOWO Dump Truck 336hp Engine / SINOTRUK Dumper Truck 1

The competitive advantage of Product Line:
The vehicle production line has been equipped with highly precise and efficient automated assembling, debugging and on-line testing equipment. Sinotruk produces all major sub-assemblies itself, including cabs, engines, axles and transmissions, in order to achieve outstanding quality and to provide excellent after-sales service for its vehicles.
Production Capacity:
Transportation Heavy, Medium, Light Duty Truck 250,000 Units Per Year, Special Truck 10,000 Units Per Year


Sinotruk Howo Company Exhibition

Heavy Duty CNHTC HOWO Dump Truck 336hp Engine / SINOTRUK Dumper Truck 2


Sinotruk Howo Customer Visit

Heavy Duty CNHTC HOWO Dump Truck 336hp Engine / SINOTRUK Dumper Truck 3


Sinotruk Howo Shipping Service

Heavy Duty CNHTC HOWO Dump Truck 336hp Engine / SINOTRUK Dumper Truck 4

Heavy Duty CNHTC HOWO Dump Truck 336hp Engine / SINOTRUK Dumper Truck 5
