Place of Origin: | Jinan, China |
Brand Name: | SINOTRUK HOWO 70 |
Certification: | CCC |
Model Number: | ZZ5707S3840AJ |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | Negotiable |
Packaging Details: | Nude |
Delivery Time: | 30-45 work days |
Payment Terms: | L/C, T/T |
Supply Ability: | 500 units per month |
Model: | ZZ5707S3840AJ | Emission Standard:: | Euro 2 |
---|---|---|---|
GVW: | 75000 KGS | Cargo Body: | 5900x3100x1800(33m3) |
Wheel Base: | 3800+1500 Mm | Frame: | 10+10 |
Highlight: | diesel dump truck,sinotruk howo dump truck |

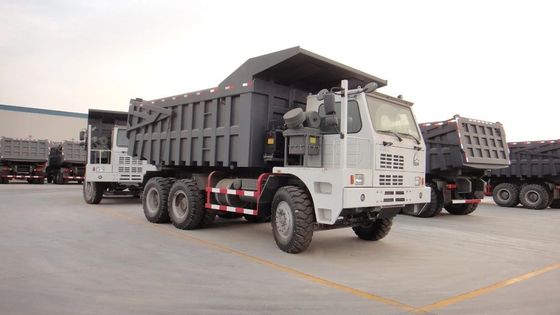

ZZ5707S3840AJ SINOTRUK HOWO 6x4 70T Mining Dump Truck With HW7D Cabin
Brand |
SINOTRUK |
Production condtion |
New |
Rated load |
52000 KGS |
Curb Weight |
23000 KGS |
GVW |
75000 KGS |
Engine |
SINOTRUK Export model D12.42, diesel, Euro 2, 11596L, 420HP / 2000rpm,6 dylinder, 1820N.m / 1100-1500rpm |
Cab |
HW7D, no sleep bed |
Model |
HOWO 70ton Mining Dump Truck |
Color |
Cabin: White, Cargo body: Grey |
Truck Dimension |
8600x3300x4340 mm |
Cargo body |
5900x3100x1800(33m3) U type, super high wear- resisting plate, Side 8mm bottom 12mm, two bottom carlings, up warp rear side |
Tire |
Front 14.00R25 super strong loaded tire, rear 14.00-25 |
Wheel base |
3800+1500 mm |
Max speed |
75 km/h |
Front axle |
HF12, SINOTRUK HOWO-12ton front axle, drum brake |
Oil tank capacity |
500L |
PTO |
HW70, flanged end |
Frame |
10+10 |
Hydraulic lifting |
HYVA 196 |
Electric system |
180Ah storage battery |
Rear axle |
SINOTRUK AC26 heavy duty reduction drive rear axle, steyr double reduction axle, ratio: 8.51 |
Transmission |
HW21712, 12+2 gears |
Front/rear suspension |
Enhanced type |
Air intake system |
Construction project standard Oil filter |
Mark |
English vision instrument panel, AC, manual window |
Factory Show:
SINOTRUK produced China's first heavy-duty truck- Huanghe JN150 8t truck in 1960, and introduced a heavy-duty truck project from Steyr in 1983. After rapid development of many years, SINOTRUK has initially built an international platform through the red-chip listing in Hong Kong in 2007, forged a strategic partnership with MAN which holding a 25%+1 stake in SINOTRUK (Hong Kong) Limited in 2009, and introduced a series of technologies from the outside soon afterwards.
Nowadays, with overwhelming superiorities in technology and market, SINOTRUK has become China's largest heavy truck manufacturing base that has made a remarkable contribution to the development of China's heavy-duty truck industry and economic construction.
Packing:
Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.Rich experience and well after-sale service.
Our Service:
Article 1: Quality
1.1- The Goods are brand new and shall conform to the relevant quality standards of FAW Group.
1.2- The manufacturer’s inspection prior to the shipment shall be final. In case any third party’s inspection is required by the Buyer, any charges which will be occurred by such inspection shall be borne by the Buyer.
Article 2 :Quality/Specifications/Quantity discrepancy
If the quality, specifications, quantity, of Goods be found not in conformity with the stipulations of contract after the arrival of the Goods, we will compensate it after receiving the necessary documentary evidence as required.
Article 3: Warranty and After-sales service
We and all of our distributors have enough ability to provide carefulness and consideration Warranty and After-sales service.
Reference pictures:
