| Place of Origin: | China |
| Brand Name: | SINOTRUK HOWO |
| Certification: | ISO/CCC |
| Model Number: | ZZ3317M3267 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Nagotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000/piece/month |
| Drive Wheel: | 8x4 | Horsepower: | 251 - 350hp |
|---|---|---|---|
| Transmission Type: | Manual | Fuel Type: | Diesel |
| Emission Standard: | Euro 2 | Engine Capacity: | > 8L |
| Keywords: | Dump Truck | Color: | Optional |
| High Light: | sand dump truck,construction dump truck |
||
Low Fuel Consumption Heavy Duty Truck HOWO 8x4 Dump Truck Euro 2
Product Description
| SINOTRUK HOWO 8X4 DUMP TRUCK LHD / RHD | ||
| Model | ZZ3317M3267 | Driving type: 8x4 |
| Cabin | HW76 lengthened cab, basic equipment: one sleeper, new-style seat, adjustable safety steering wheel, EURO new type heating & ventilating system; with large size LCD screen, Germany VDO instrument and electric control block, four points floating air suspension(front coil spring, rear air spring) and shock absorbers for highway vehicle, four points floating air spring suspension and shock absorbers for off-highway vehicle; transverse stability installation, double locking safety belt and external sun shade for various mode. | |
| Engine | Horse power: | 266HP(196KW) / 300HP(213KW) |
| Displacement: | 9.726 (L) liter | |
| Max torque: | 1100Nm / 1160Nm at 1100-1600 rpm | |
| Cylinder diameter / stoke: | 126mm/130mm | |
| WD615.62 / WD615.87 diesel engine, EURO 2 emission standard. 6 cylinder in-line with water cooling, turbo-charging & inter-cooling. 4 stroke direct injection diesel engine. Compression ratio: 17:1. Full load fuel consumption: 193g/kwh; Rated revolution: 2200RPM. Engine net weight: 850KG | ||
| Gear box | Model: | HW13710 / HW15710 |
| Speed: | 10drive, 2reverse. Max torque: 1390NM / 1500NM | |
| HW15710 SINOTRUK10 speed manual type transmission, the first shift gear ratio: 14.28, small ratio grade difference and big first shift ratio produce an excellent performance on start up. Gear ratio:1=14.28, 2=10.62, 3=7.87, 4=5.88, 5=4.38, 6=3.27, 7=2.43, 8=1.80, 9=1.34, 10=1, R1=13.91, R2=3.18 | ||
| Front axle | 2×HF9, 18 ton axle load, rigid stub axle with double T- cross section and dish brake. | |
| Rear axle |
2xAC16 double heavy casting hub reduction drive axle, with supper loading ability, excellent performance on start-up with heavy load and slope climbing .Axle load: 2x16 tons. |
|
| Steering | ZF8098 power steering, hydraulic steering with power assistance. | |
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance. | |
| Brake | Service brake: Dual circuit compressed air brake. | |
| Parking brake: Spring energy, storage air-break brake. | ||
| Engine brake: Engine exhausted gas brake. | ||
| Electric Equipment | Operating voltage: | 24V negative grounded |
| Battery voltage: | 12V/165Ah,cigar lighter | |
| Tire & Rim | 11.00-20; 12.00-20; 11.00R20; 12.00R20; 295/80R22.5; 315/80R22.5 | |
| Overall dimension (mm) | 9,725 / 9,445 X 2,496 X 3,450 (L X W X H) | |
| Dump Box Dimension (mm) | 6,500 X 2,300 X 1,200 / 1,400 / 1,500 | |
| Total Mass (Kg) | 31,000 | |
| Curb Weight (kg) | 15130/15360 | |
| Maximum Speed (km/h) | 75 | |
| Color | White, red, yellow, green, blue | |

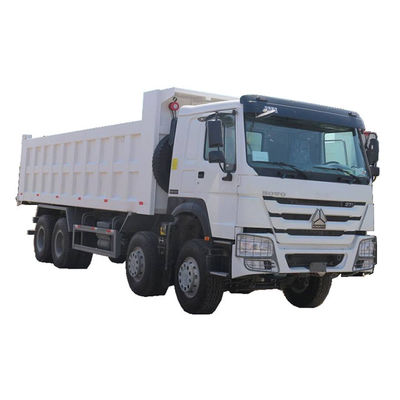

Product pictures
Production process
