Place of Origin: | CHINA |
Brand Name: | SINOTRUCK |
Certification: | CCC ISO |
Model Number: | ZZ1317N4667W |
Minimum Order Quantity: | 1 UNIT |
---|---|
Price: | Negotiation |
Packaging Details: | Nude |
Delivery Time: | 25-30 work days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1000 units per month |
Model:: | ZZ1317N4667W | Emulsion Bitumen Tank Capacity: | 4m3 |
---|---|---|---|
Aggregate Bin Capacity: | 10m3 | Water Tank Capacity: | 4m3 |
Additive Tank Capacity: | 230L | Color:: | White/Yellow. |
Making Slurry Capacity (Kg/min):: | 1800-2000 Kg/min | Asphalt Spreaying Width:: | 4200MM |
Highlight: | road maintenance truck,road sealing equipment |

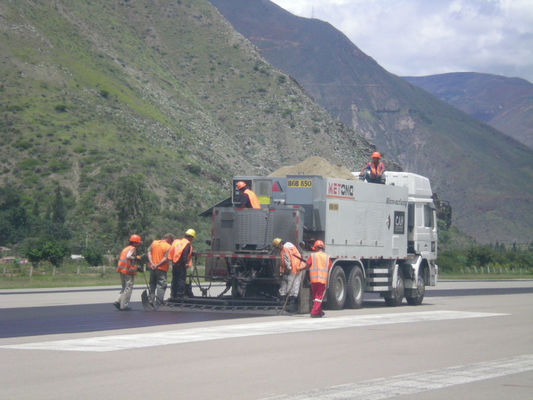

SINOTRUCK Asphalt slurry seal micro surfacing road building machine
Description:
Micro-surfacing is the solution to reducing resistance, cracks, rutting and other deteriorations on the road surface. It is applied to enhance the road anti-slippery performance, waterproofness, surface smoothness and driving comfort. Micro-surfacing equipment is widely used in construction workmanship in common slurry seal, modified slurry seal and micro-surfaces.
Advantage:
Introduction and Application of Micro-surfacing
LMT5310TXF Micro-Surfacing
Micro-Surfacing Paver LMT5310TXF is a Metong brand product newly-developed by Metong Corporation in 2009. In comparison to existing similar products locally, Metong LMT5310TXF is more efficient, reliable and has a long life span. The product has high quality in its nature as it was manufactured with advanced technology and made with high durable materials which are imported as well as local materials.
Micro-Surfacing is an innovative solution for sealed roads that are in their early stages of deterioration. The mixture of aggregate, asphalt, water and additive are applied in a smooth thin layer over deteriorated roads. Micro-surfacing effectively incorporates engineering design mix, specification requirements and better solution to various field problems.
Micro-Surfacing has the advantages of increasing slippery resistance, high color contrast and off course the smooth surface restoration finishes. Micro-Surfacing can be used from minor feeder roads to high-speed heavy-traffic highways.
Metong's success of this production has come from high qualified and experienced human resource, innovative modern engineering technologies and with advanced computer aided manufacturing facilities.
The main objective of Micro-Surfacing Paver is targeted on efficiency in civil road project constructions, renovations, maintenance, etc. The product itself has a prolong reliability and durability with inbuilt Shan'qi 8x4 chassis and a power supply of 247KW within the system.
Main Technical Parameters
Specification | |
Model | LMT5310TXF |
Chassis Model | SX1315NR366(Engine Power:247KW)Euro III Emission standard |
Engine | WP10.336N -336HP |
Displacement (CC) | 9726 |
Transmission | F9- 9 forward and 1 backward |
Donkey Engine | Cummins 4BTA3.9-C130 -Euro II |
Donkey Engine Power | 96KW/2300RPM |
Aggregate Bin Capacity | 10 M3(totally with painted) |
Emulsion Bitumen Tank Capacity | 4 M3 |
Water Tank Capacity | 4 M3 |
Additive Tank Capacity | 230 L |
Filling Tank Capacity | 0.5 M3 |
Making Slurry Capacity (Kg/min): | 1800-2000 Kg/min |
Retractable Speader Box /Paver Width | 2.5—4.2 M |
Working Speed | 2.3—2.5 Km/h |
Truck Speed | 90 Km/h |
Dimensions(mm) | 11100x2495x3720 |
Tare weight | 18T |
III. Pictures | |
IV : Main fittings photo/ UNDER | |
Belguim JOHNSON Bitumen Pump OMSI Drive Distributor
Cummins Donkey Engine Anti-block Aggregates Hopper
| |
Characteristics: 1. On the basis of technologies from Europe and USA, Modularized control. 2. Chassis supplied specially by Shaanxi Automobile Group with excellent performance. 3. CUMMINS construction machinery using engine; PARKER,EATON hydraulic spare parts,Belguim JOHNSON Bitumen Pump,American water pump.; 4. Siemens PLC controlling system. 5. German imported flow indicator can monitor accurately in every parts. 6. New strong dual-shaft mix tank design make adequate mixture 7. Advanced spreader box design, The screw width, rotary direction, and rotary speed adjustable. 8. bitumen tank, water tank and Aggregates hopper integral structure design makes whole equipment compact.
|
Company Information
Since its establishment,Metong has always maintaned a sound,stable and rapid development;Now,it has grown into a diversified enterprise focusing on the developemnt of road construction&maintenance machinery.The company has always upheld the opertation principle of "quality first,customer foremost and whole-hearted service"; By virtue of the powerful innovation and R&D strength,as well as the first-class technology and sevice,it has continuously provided the customers with the products of high performace&high reliability; Actually,the Company's products have already covered all provinces&autonomous regions of China,Southeast Asia,Central Asia,Eastern Europe,Africa,South America and other countries and regions,which have won the unanimous recognition and praise from the customers.
FAQ
Q1. Why did you begin foreign trade business?
We entered international market since 2003. With quality products and excellent service, our products are well-received in more than 80 countries.
Q1. What certificates and patents do you have?
We have been accredited by CCMQS ISO9001 and SGS. Our AR150 series is CE certified and we can also arrange CE certificate for other products. We have acquired more than 20 patents.
Q2. What’s the best price of your products?
Prices vary because the configuration of our products ranges from low-end to high-end. We enjoy a good reputation in the market for offering reasonable prices.
Q3. What warranty coverage do I have?
Our Asphalt Distributor has one-year warranty. We will provide free accessories for exported products.
Q4. What is the requirement to be an agent?
1. Have professional maintenance staff and excellent service;
2. Have good relationship with local counterparts;
3. Annual sales about xx
4. Have robust sales network.
