| Place of Origin: | CHINA |
| Brand Name: | SINOTRUCK |
| Certification: | CCC ISO |
| Model Number: | ZZ1257N4641W |
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 25-30 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units per month |
| Model:: | ZZ1257N4641W | Emulsion Bitumen Tank Capacity: | 3m3 |
|---|---|---|---|
| Aggregate Bin Capacity: | 10m3 | Water Tank Capacity: | 3m3 |
| Additive Tank Capacity: | 230L | Color:: | White/Yellow. |
| Making Slurry Capacity (Kg/min):: | 1800-2000 Kg/min | Asphalt Spreaying Width:: | 4200MM |
| High Light: | road maintenance truck,road sealing equipment |
||

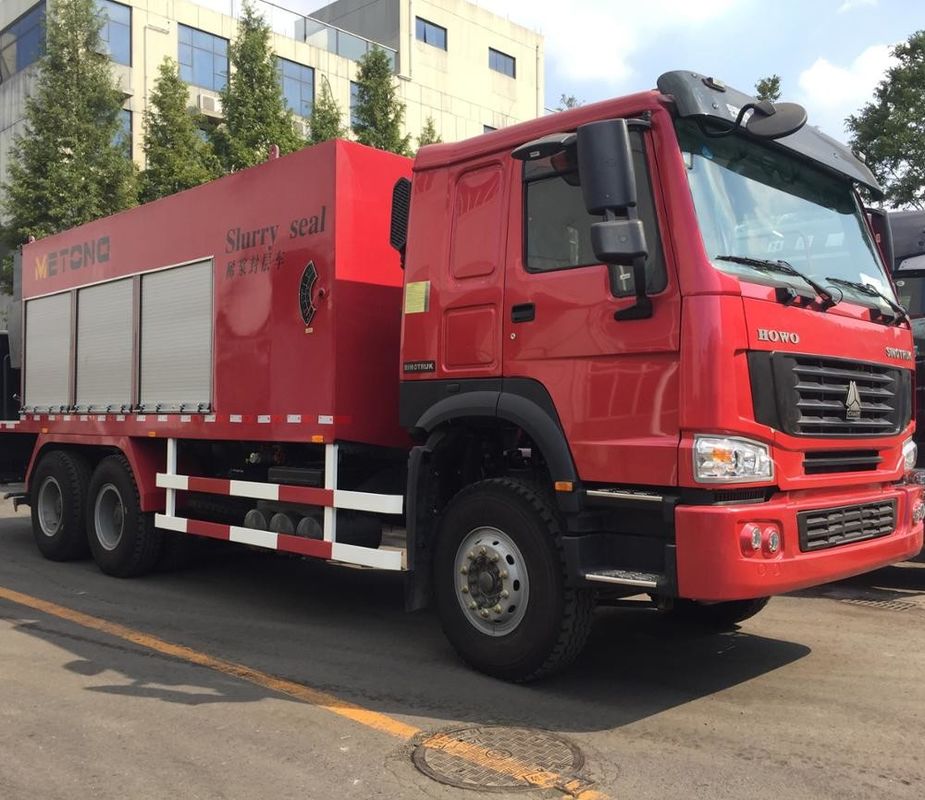

Sinotruck Mirco-sufacing machine,slurry seal company,road building machine
LMT5255TXF micro-surfacing equipment, as the special machinery for asphalt pavement construction, is developed by our company and can be widely used in the fast synchronous spraying work of highways. The asphalt and aggregate can be sprayed together or respectively. It has some positive features including cost-saving, surface wear resistance, anti-skidding, water proof and quick resumption of normal traffic after construction. It is suitable for the construction of the highways in different levels.
Main feature:
1.Hydraulic parts with imported brands
2.Ensuring the machine with Hight reliability.
3.Low the maintenance cost
3.Top brand hydraulic strainer
4.Using the big diameter spiral fabric structure
5.with no dead corner,no segregation and second time mixing to low the system weight
6.Easy to adjust the paving width meet the different.
Main Technical Parameters
| No. | Name | Qu-ty | Model | Brand /Country |
| 1 | Auxiliary Engine | 1 | 4BTA3.9 (97KW/2300RPM) | USA / Cummins |
| 2 | Asphalt Pump | 1 | TG GM-80 | Belgium /JOHNSON |
| 3 | Hydraulic Pump | 6 | 3SPA29+3SPA22+2SPA11 SAEB NTU | Italy/Hansa-TMP |
| 4 | Hydraulic Accessories | 1 | Parker, Eaton | USA |
| 5 | Hydraulic Motor | 1 | MAT250C | Taiwan / MAXMA |
| 6 | Vibrating Motor | 1 | MVE200DC -24 | China |
| 7 | Reduction Gear | 2 | MTKAVD-M22 / | Switzerland / BUCHER |
| 8 | Main Electric Unit | 1 | Siemens | Germany |
| 9 | Mixer | 1 | 1800-2000 Kg/min | China |
| 10 | Water Pump | 1 | FMC-200HYD-310 | USA / ACE |
| 11 | Flow divider | 1 | AM216SAE2RBD10SAEB | Italy/Hansa-TMP |
| 5 | Cement and belt conveyor motor | 2 | TE0080AS260AABJ | USA/ Parker |
| 6 | Paving box , asphalt pump motor | 3 | M0206AC23AG0200000000A00 | Italy/Hansa-TMP |
| 11 | 2" Asphalt flowmeter | 1 | 8041+8025+S020 | Germany Proudly |
| 12 | 1.5" Water flow meter 1.5 " | 1 | 8030+8025+S030 | Germany Proudly |
| 13 | 1/2" Additive flow meter 1 / 2 " | 1 | 8030+8025+S030 | Germany Proudly |
| 16 | Control system | 1 | Siemens components | Germany |
| 17 | Stirring pot | 1 | Metong | China |
| 18 | Paving box | 1 | Metong | China |
Specification:
| CATEGORY | ITEM | UNIT | PARAMETER |
| Auxiliary engine system | Model | / | 4BTA3.9 |
| Factory | / | Cummins | |
| Output power | kw/(r/min) | 97KW/2300RPM | |
| Drive mode | / | Hydraulic drive | |
| Emulsified asphalt system | Emulsified asphalt tank | l | 4000 |
| Max. asphalt flow | l/min | 250 | |
| Measurement methods | / | The flowmeter Show / pump speed adjustment | |
| Asphalt pump insulation | / | Hot water | |
| Water system | Water box | l | 4000 |
| Max. water flow | l/min | 300 | |
| Measurement methods | / | The flow meter Show / pump speed adjustment/ Valve regulated | |
|
Stone system
|
Stone box | M³ | 12 |
|
Conveyor bandwidth
|
mm | 650 | |
|
Stone throughput/
|
kg/min | 1700 | |
| Adjustment method | / | The material door open degree | |
| Device to Prevent feeding clogging | / | DC vibration motor | |
| Cement system | Cement silo | M³ | 0.5 |
| Cement throughput | kg/min | 60 | |
| Adjustment method | / | Screw speed adjustment | |
| Device to Prevent feeding clogging | / | Fork | |
| Additive system | Additive tank | l | 230 |
| Measurement methods | / | The flow meter Show / pump speed adjustment | |
| Stirring pot system | The stirring ability | Kg/min | 1800-2000 |
| Mixing form | / | Bi-axial strong stirring | |
| Paving box |
Paving Width
|
m | 2.5--4.2 |
| Width adjustment method | / | Hydraulic telescopic adjustment | |
| Paving thickness | mm | 3--15 | |
| The speed controller | / | Hydraulic adjustment | |
| Auxiliary stickle device | / | Stickle two times | |
| Cleaning system | Cleaning method | / | High pressure cleaning |
| Control system | PLC Microcomputer PLC | / | Siemens |
| Control mode | / | Manual / automatic | |
|
OTHERS
|
Vehicle Dimensions | mm | 12240×2500×3650 |
| Wheelbase | mm | 1350 | |
| Traction pin diameter | mm | 90 |
Company Information
Since its establishment,Metong has always maintaned a sound,stable and rapid development;Now,it has grown into a diversified enterprise focusing on the developemnt of road construction&maintenance machinery.The company has always upheld the opertation principle of "quality first,customer foremost and whole-hearted service"; By virtue of the powerful innovation and R&D strength,as well as the first-class technology and sevice,it has continuously provided the customers with the products of high performace&high reliability; Actually,the Company's products have already covered all provinces&autonomous regions of China,Southeast Asia,Central Asia,Eastern Europe,Africa,South America and other countries and regions,which have won the unanimous recognition and praise from the customers.
FAQ
Q1. Why did you begin foreign trade business?
We entered international market since 2003. With quality products and excellent service, our products are well-received in more than 80 countries.
Q1. What certificates and patents do you have?
We have been accredited by CCMQS ISO9001 and SGS. Our AR150 series is CE certified and we can also arrange CE certificate for other products. We have acquired more than 20 patents.
Q2. What’s the best price of your products?
Prices vary because the configuration of our products ranges from low-end to high-end. We enjoy a good reputation in the market for offering reasonable prices.
Q3. What warranty coverage do I have?
Our Asphalt Distributor has one-year warranty. We will provide free accessories for exported products.
Q4. What is the requirement to be an agent?
1. Have professional maintenance staff and excellent service;
2. Have good relationship with local counterparts;
3. Annual sales about xx
4. Have robust sales network.
