Small Self - Loading Concrete Mixer Truck JIEFANG FAW J5M 4*2 6*4

Small Self - Loading Concrete Mixer Truck JIEFANG FAW J5M 4*2 6*4

  • Small Self - Loading Concrete Mixer Truck JIEFANG FAW J5M 4*2 6*4
  • Small Self - Loading Concrete Mixer Truck JIEFANG FAW J5M 4*2 6*4
Small Self - Loading Concrete Mixer Truck JIEFANG FAW J5M 4*2 6*4
Product Details:
Place of Origin: China
Brand Name: FAW
Certification: ISO/CCC
Model Number: CA5160GJBEA80/ CA5250GJBA80
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 500 pieces/month
Contact Now
Detailed Product Description
Wheel Base: 4210, 3500+1350 Mm Economic Speed: 60-70, 50-60 Km/h
Maximum Speed: 92, 84 Km/h Emission: Euro 2
Product Name: Mixer Truck Max. Gradeability(%): 45/ 55
Engine Rated Power(kw/rpm): 155/2300, 209/2300 Condition: New
High Light:

truck mounted concrete pump

,

mobile cement mixer trucks

JIEFANG FAW J5M 4*2 6*4 Small Self-loading Concrete Mixer Truck ​



Product description



  J5M Mixer Truck 4*2 J5M Mixer Truck 6*4
  3 9
Recommended Vehicle Model CA5160GJBEA80 CA5250GJBA80
Mass Parameter(kg) Chassis net weight kg 5850 8760
MAX gross kg 19500 31500
Dimension Parameter(mm) Overall Dimension 8090*2490*2760 7525*2490*2760
wheel base mm 4210 3500+1350
Performance Parameter Max. Speed(km/h) 92 84
Economic Speed(km/h) 60-70 50-60
Max. Gradeability(%) 45 55
Cabin J5M flat top& semi-floating cabin& right J5M flat top& semi-floating cabin& right
Engine Model WP6.210E32 CA6DL1-28
Rated Power(kw/rpm) 155/2300 209/2300
Max. Torque(Nm/rpm) 800/1400-1600 1100/1300-1700
Transmission Model CA7TB100M CA9TB160M
Gears Manual Transmission, 7 forward gears, 1 reverse gears Manual Transmission, 9 forward gears, 1 reverse gears
Axles Steering Axle maximum load 6500kg maximum load 6500kg
Drive Axle 457 single reduction, reduction ratio 5.286 , maximum load13000kg 457 single reduction, reduction ratio 5.833, maximum load13000kg
Body Suitable for 6 square Suitable for 8 square
mixer body mixer body
tyre 11.00R2016 10.00R2016
Emission Level E2 E2
Certifications
Remarks
Exported countries Pakistan Kenya

Recommend Market Type Cargo Type concrete concrete
Main Working Condition Round trip full load Round trip full load
Operating Condition short distance short distance
Driver Position right right
Customer Type Middle end, prefer quality and price Middle end, prefer quality and price



Company information

  • Specialized in trucks industry for more than 20 years, we know what trucks are for, and what the customers really need. We recommend the specification suitable for the specified usage.
  • Our trucks and trailers are exported to more than 100 countries and areas, such as Africa, South East Asia, North Asia, Middle East, South America.
  • One-stop service for all the trucks and trailers from China, where the customers can have all the products they need to save time, energy and cost.
  • Trucks:Tractor Truck, Dump Truck, Concrete Mixer Truck, CNG Truck, Cargo Truck, Tank Truck, Garbage Truck, All-Wheel Drive Truck, Special Vehicles, Bus.Trailers: Flat bed, Low bed, VAN, Warehouse, Tanker, Car carrier, Logging, Tipper, etc

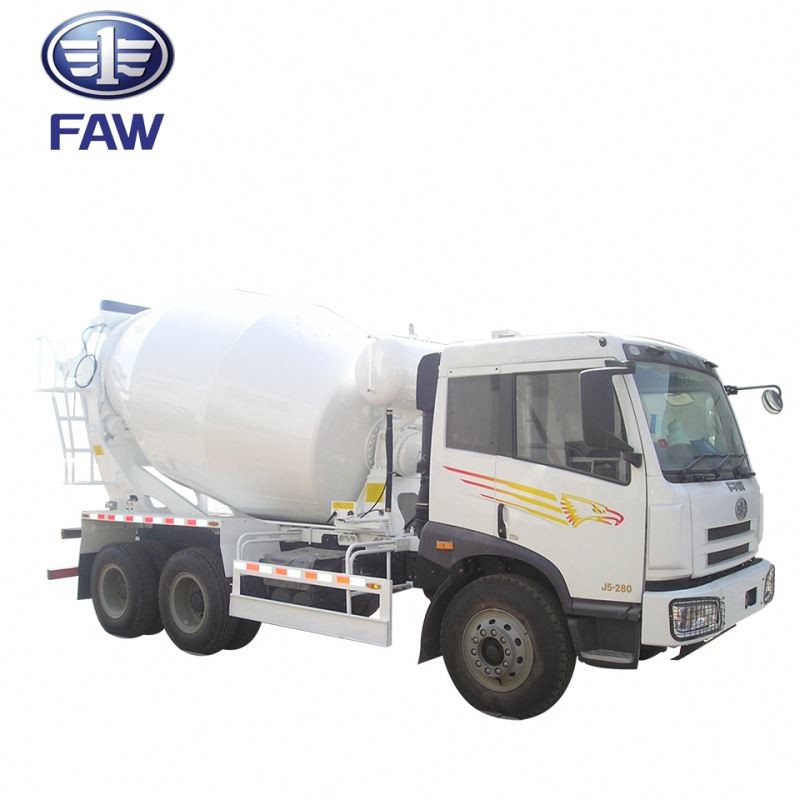

Product picture



Small Self - Loading Concrete Mixer Truck JIEFANG FAW J5M 4*2 6*4 0Small Self - Loading Concrete Mixer Truck JIEFANG FAW J5M 4*2 6*4 1Small Self - Loading Concrete Mixer Truck JIEFANG FAW J5M 4*2 6*4 2Small Self - Loading Concrete Mixer Truck JIEFANG FAW J5M 4*2 6*4 3
