| Place of Origin: | China |
| Brand Name: | FAW |
| Certification: | ISO/CCC |
| Model Number: | CA5160GJBEA80,CA5250GJBA80 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 units per month |
| Condition: | New | Drive Wheel: | 6x4 |
|---|---|---|---|
| Transmission Type: | Manual | Storage: | Water |
| Horsepower: | 251 - 350hp | Fuel Type: | Diesel |
| Engine Capacity: | 6-8L | Tank Volume: | 10001 - 15000L |
| High Light: | fuel tanker trucks,oil tanker truck |
||
JIEFANG FAW J5M 6*4 Diesel Water Tanker Truck Optional Color Euro 2
Product description
| J5M Mixer Truck 4*2 | J5M Mixer Truck 6*4 | ||
| 3 | 9 | ||
| Recommended Vehicle Model | CA5160GJBEA80 | CA5250GJBA80 | |
| Mass Parameter(kg) | Chassis net weight kg | 5850 | 8760 |
| MAX gross kg | 19500 | 31500 | |
| Dimension Parameter(mm) | Overall Dimension | 8090*2490*2760 | 7525*2490*2760 |
| wheel base mm | 4210 | 3500+1350 | |
| Performance Parameter | Max. Speed(km/h) | 92 | 84 |
| Economic Speed(km/h) | 60-70 | 50-60 | |
| Max. Gradeability(%) | 45 | 55 | |
| Cabin | J5M flat top& semi-floating cabin& right | J5M flat top& semi-floating cabin& right | |
| Engine | Model | WP6.210E32 | CA6DL1-28 |
| Rated Power(kw/rpm) | 155/2300 | 209/2300 | |
| Max. Torque(Nm/rpm) | 800/1400-1600 | 1100/1300-1700 | |
| Transmission | Model | CA7TB100M | CA9TB160M |
| Gears | Manual Transmission, 7 forward gears, 1 reverse gears | Manual Transmission, 9 forward gears, 1 reverse gears | |
| Axles | Steering Axle | maximum load 6500kg | maximum load 6500kg |
| Drive Axle | 457 single reduction, reduction ratio 5.286 , maximum load13000kg | 457 single reduction, reduction ratio 5.833, maximum load13000kg | |
| Body | Suitable for 6 square | Suitable for 8 square | |
| mixer body | mixer body | ||
| tyre | 11.00R2016 | 10.00R2016 | |
| Emission Level | E2 | E2 | |
| Certifications | |||
| Remarks | |||
| Exported countries | Pakistan | Kenya | |
| Recommend Market Type | Cargo Type | concrete | concrete |
| Main Working Condition | Round trip full load | Round trip full load | |
| Operating Condition | short distance | short distance | |
| Driver Position | right | right | |
| Customer Type | Middle end, prefer quality and price | Middle end, prefer quality and price | |
Our service
Article 1: Quality
1.1- The Goods are brand new and shall conform to the relevant quality standards of FAW Group.
1.2- The manufacturer’s inspection prior to the shipment shall be final. In case any third party’s inspection is required by the Buyer, any charges which will be occurred by such inspection shall be borne by the Buyer.
Article 2 :Packing & Transportation
2.1- Packing: Nude Cargo
2.2-Shipping marks: As contract
2.3- Transportation:RORO vessel or container
Article 3 :Delivery
We could deliver the Goods to any port in China as required within 150 calendar days from the date of receiving the down payment.
Article 4: Quality/Specifications/Quantity discrepancy
If the quality, specifications, quantity, of Goods be found not in conformity with the stipulations of contract after the arrival of the Goods, we will compensate it after receiving the necessary documentary evidence as required.
Article 5 :Warranty and After-sales service
We and all of our distributors have enough ability to provide carefulness and consideration Warranty and After-sales service.

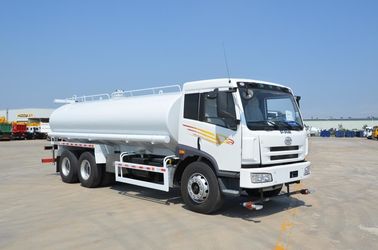

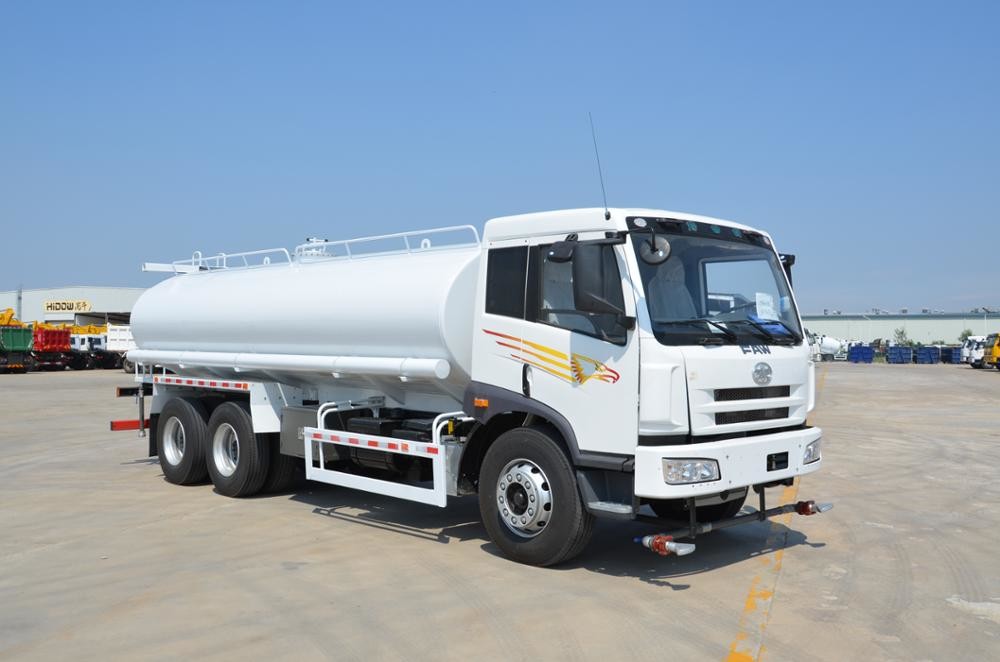

Product picture
Contact Person: Mr. Zhang
Tel: 86-15275410816
